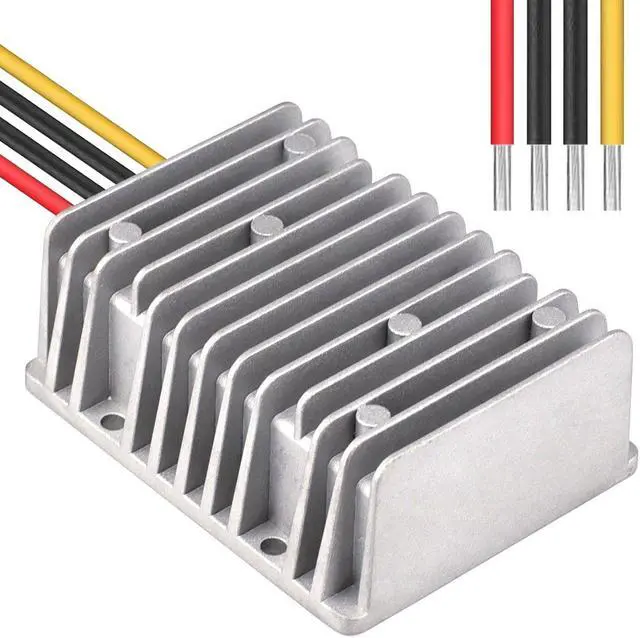

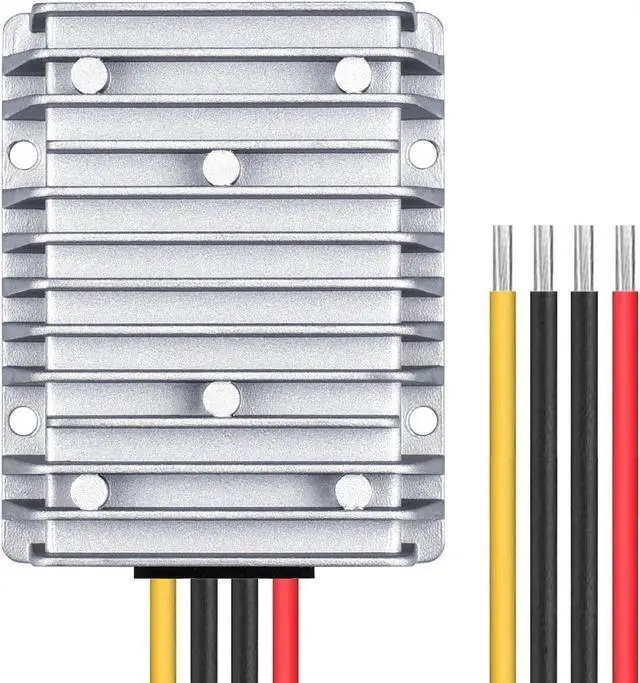

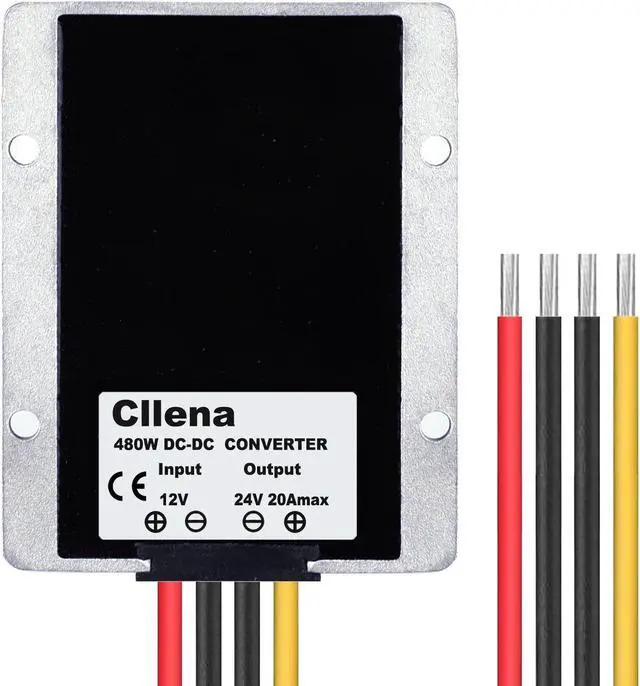

Cllena DC 12V Step Up to 24V 20A 480W Boost Converter, Waterproof Voltage Regulator Module Power Adaptor
- Very practical - Input voltage range: DC 10V-16V; Output voltage: DC 24V(non-adjustable); Output current: 20A (rated working current); Output power 480W.
- Safety Protections - Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- High conversion efficiency - The conversion efficiency may reach 95%; Its dynamic response speed is 5 percent 200US, please lower the power or enhance heat radiation when temperature over 40
- Aluminum shell and silicone sealed design - Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
- Wide application - Use for Trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED lights, monitoring system, motors, electronic systems etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to BAT-
Note:
* Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.
* Never charge the battery. Keep good air convection.
* Never reverse the polarity.
* Use the enough big cable to avoid the voltage drop.
Application:
12V DC battery as input power to 24V DC appliances as output load.
Output voltage: 24V DC
Input Voltage Range: 10V-16 DC
Output Current: 20 Amp
Output Rated Power: 480W
Efficiency: 97% (half load); 95% (full load)
Ripple: 200mVp
Line Regulation: ± 0.2 %
Load Regulation: ± 0.2 %
Voltage Accuracy: ± 1.5 %
Enclosures: IP68
Case Operating Temperature: -40~85°C
Weight: 550g
Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 12V step up to DC 24V converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included:
1 x DC 12V Step up to 24V 20A Converter
Note:
* Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.
* Never charge the battery. Keep good air convection.
* Never reverse the polarity.
* Use the enough big cable to avoid the voltage drop.
Application:
12V DC battery as input power to 24V DC appliances as output load.
Specifications
:Output voltage: 24V DC
Input Voltage Range: 10V-16 DC
Output Current: 20 Amp
Output Rated Power: 480W
Efficiency: 97% (half load); 95% (full load)
Ripple: 200mVp
Line Regulation: ± 0.2 %
Load Regulation: ± 0.2 %
Voltage Accuracy: ± 1.5 %
Enclosures: IP68
Case Operating Temperature: -40~85°C
Weight: 550g
Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 12V step up to DC 24V converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included:
1 x DC 12V Step up to 24V 20A Converter
