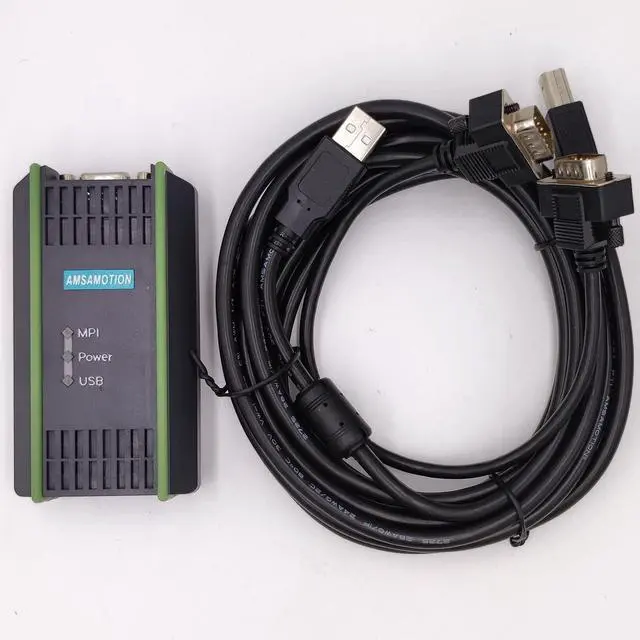

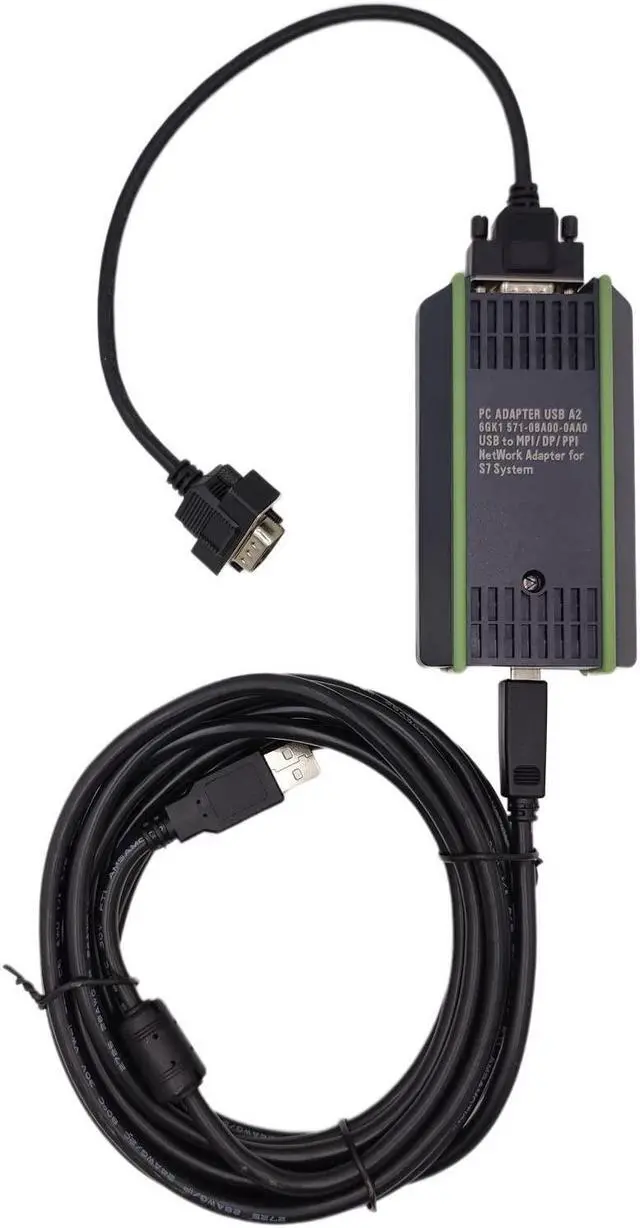

DCYNXC 6GK 1571-0BA00-0AA0 PC USB A2 Cable for Siemens S7-300 GK1571-0BA00-0AA0 MPI+ PC-Adapter-USB

Specifications

:
Model Number: 6GK1571-0BA00-0AA0
Cable Length (USB Data Cable): 3m
Working Temperature: -25? 75?
Transfer Rate: 9.6K bps, 19.2K bps, 45.45K bps, 93.75K bps, 187.5K bps, 500Kbps, 1.5M bps
Wire Material: environmentally friendly wire with shielded OD standard 5.0MM
Support PPI/MPI/DP port programming.
Support S7-200/300/400 PLC
Support windows XP, Win7 System
Feature:

1. The USB Port Programming Data Cable is built-in isolation chip to reduce signal interference, stabilize communication, and protect the data transmission.

2. It supports S7-300/400PLC communication and long-term monitoring and debugging, support S7-200PLC download and transfer data, support PPI/MPI/DP multi-master communication, allowing you to experience smooth and unimpeded communication.

4. Support for win7 series and the latest V 5.5 software programming (no need to install drivers in V 5.5 ), support 840D numerical control system programming, and the transmission rate is up to 1.5M bps.

5. The shell is made of flame-retardant PVC, which has has the soft glue protection and good wear resistance, tensile resistance and durability.

6. Choose PTC self recovery fuse to protect internal circuit under overvoltage, overcurrent and short circuit.

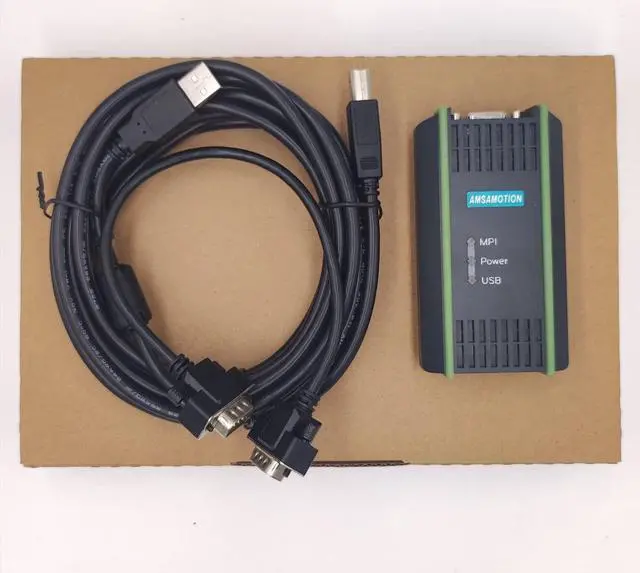

Package Included:
1 x Box
1 x Electric Cable
1 x Interface Cable
