NVVV EDR-120-12 120W 12VDC 10Amp Industrial DIN Rail Power Supplies (12V 120W), Silver
- EDR-120-12: 120W 12V 10A(MAX)
- Universal AC input 85~264VAC
- Used for industral automation
- Full protections: Short/Overload/Over Voltage/Over temperature

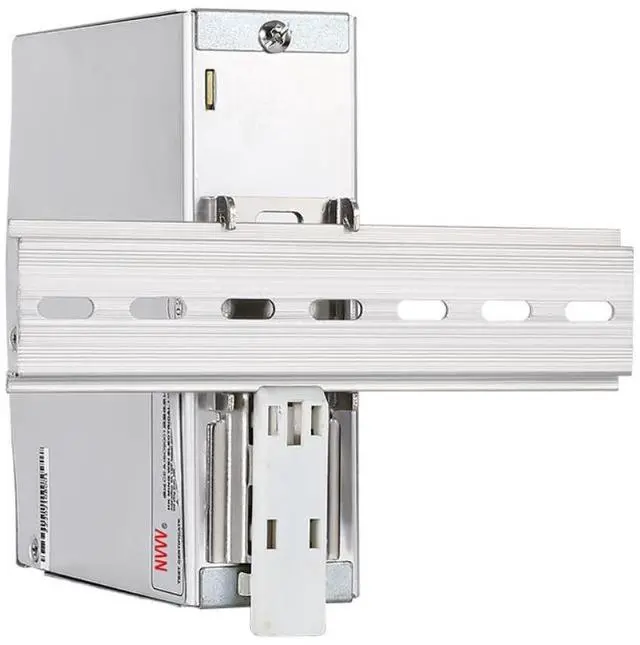

- Can be installed on DIN RAIL
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

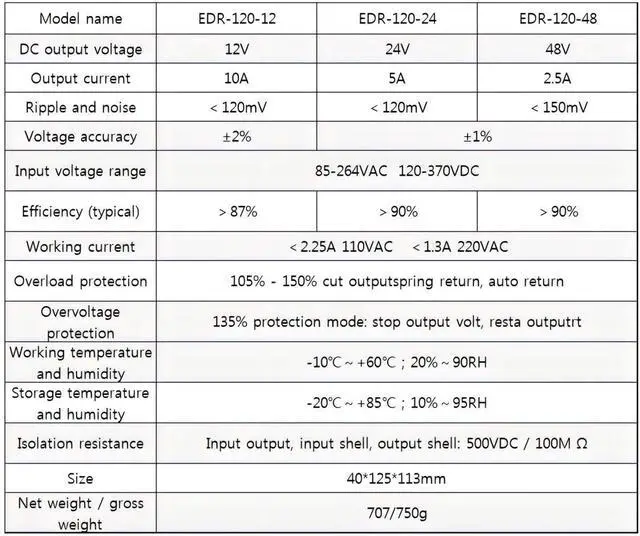

Package Include: 1 x Single output DIN rail power supply 12 Volts 10 Amps 120
Watts specifications: output
power (W): 120 ripple
& noise (mV p-p): <120
mV load regulation: ± 1
Percent line regulation: ± 0.5
Percent efficiency: 87.5 percent size (L x W x
H) inches: 4.5 x 1.6 x 4.9 detailed specifications: primary
output voltage (VDC): 12
output current (a): 10
maximum output power (W): 120
family: EDR-120
input voltage (VAC): 85
to 264 input frequency: 47 to 63 maximum input current (a): 2.25 output connector
Type: screw
terminal efficiency: 87.5
Percent operating temperature-min (CEL): -10
operating temperature-max (CEL): 60
Length (inch): 1.57
width (inch): 4.92
height (inch): 4.45
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV

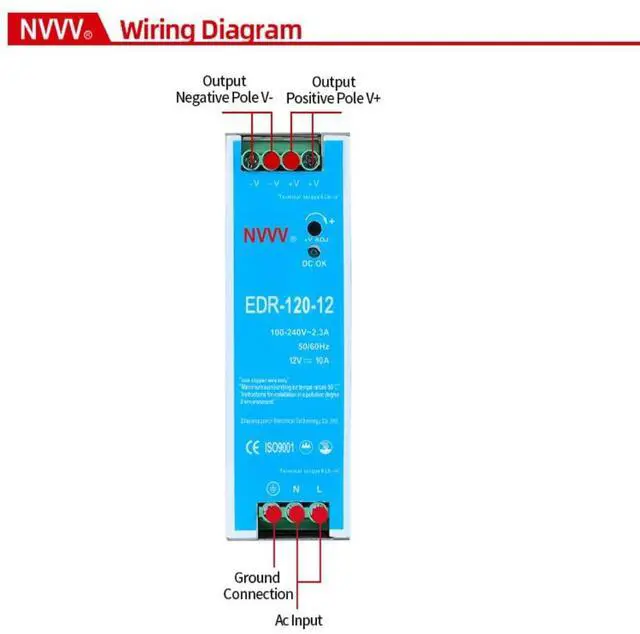

Connection instruction?: Ground wire
L: Live wire
N: Negative
wire +V: DC
power output + -V: DC power output - +V
ADJ: output voltage regulation
Watts specifications: output
power (W): 120 ripple
& noise (mV p-p): <120
mV load regulation: ± 1
Percent line regulation: ± 0.5
Percent efficiency: 87.5 percent size (L x W x
H) inches: 4.5 x 1.6 x 4.9 detailed specifications: primary
output voltage (VDC): 12
output current (a): 10
maximum output power (W): 120
family: EDR-120
input voltage (VAC): 85
to 264 input frequency: 47 to 63 maximum input current (a): 2.25 output connector
Type: screw
terminal efficiency: 87.5
Percent operating temperature-min (CEL): -10
operating temperature-max (CEL): 60
Length (inch): 1.57
width (inch): 4.92
height (inch): 4.45
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV
Connection instruction?: Ground wire
L: Live wire
N: Negative
wire +V: DC
power output + -V: DC power output - +V
ADJ: output voltage regulation
