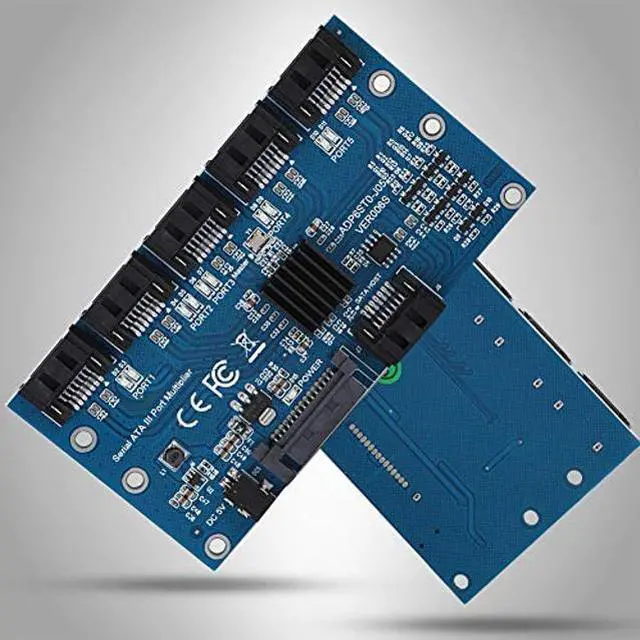

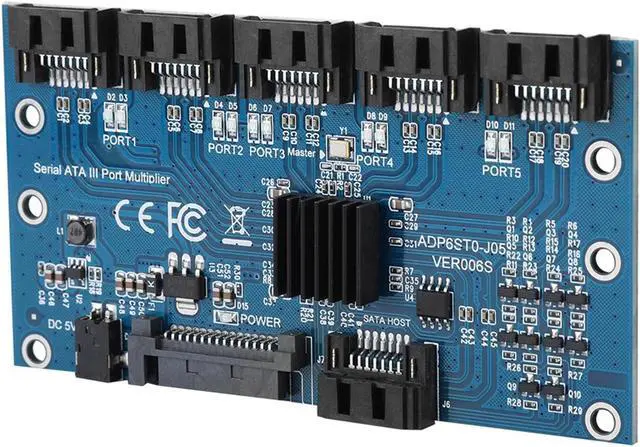

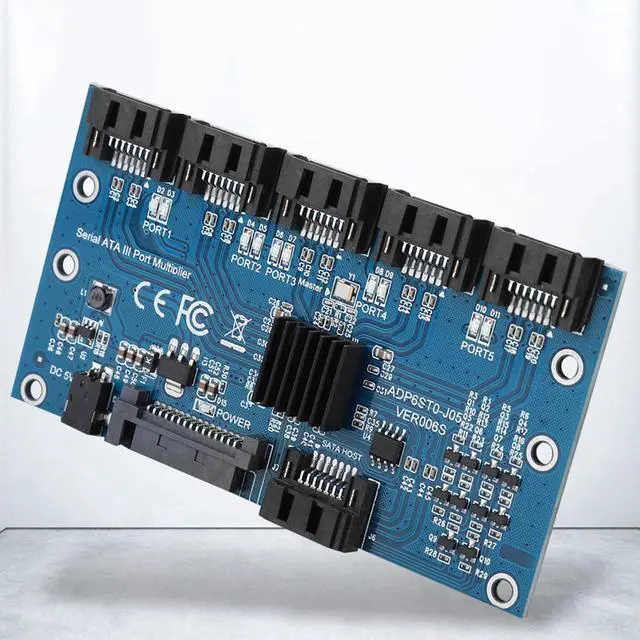

SATA3.0 1 to 5 Hard Disks Multiplier Adapter Converter Motherboard 6Gbps Interface Riser Support PM, JMICRON, ADP6ST0 J05, ADP6ST0 J02

Features:

1. Automatic speed up negotiation.

2. Support BIST and Loopback mode.

3. Support staggered spin up (Optional).

4. Support hot swap.

5. Support asynchronous inform.

6. Support ATAP Drive.

7. Support SWIT based on orders and Fi.

Compliance:

1. Compliant with Serial ATA Port Multiplier

Specifications

.

2. Compliant with Serial ATA Port Selector

Specifications

.

3. Compliant with ATA PHY Series Electrical

Specifications

Revision 1.0

4. Compliant with Annex

Specifications

ATA Series High Speed Serialization.

Specifications

:
Product: SATA 3.0 1 to 5 Expansion Card
Model: ADP6ST0 J05 ADP6ST0 J02
Product Master: JMICRON JMB575
Product Package: Kraft Box
Product Interface: SATA 7PIN
System: For WINXP, WIN7, WIN8, WIN10
Size: Approx. 10.2 * 5.5 * 0.7 cm/ 4.02 * 2.17 * 0.28 in

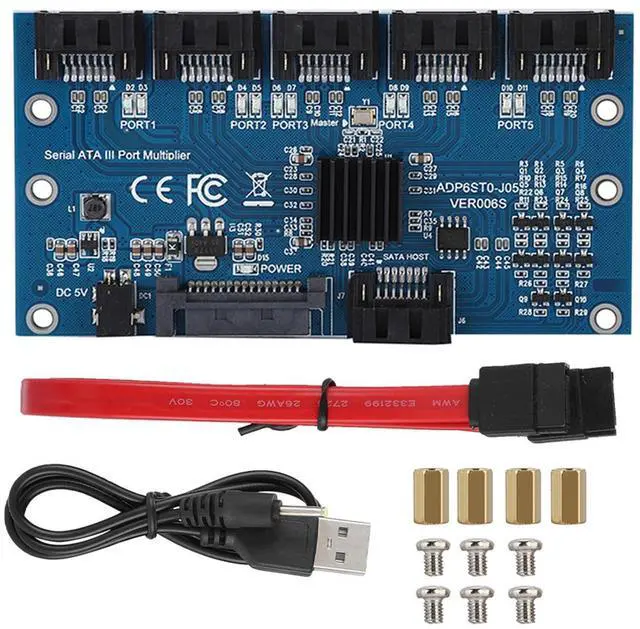

Package List:
1 * SATA 3.0 1 to 5 Expansion Card
1 * USB DC Power Cable
1 * Connection Cable
1 * Screw Bag

Note:

1. This expansion card needs Motherboard or expansion card to support point (SATA Interface Multiplier) Funtion to identify 5 hard disks, common Motherboard SATA do not support such function. If not, only one hard disk can be identified.

2. Do plug in SATA or DC 2.5 power cable to expansion card.

3.
Cable Connection: Plug SATA input cable to Motherboard or expansion card to SATA.
