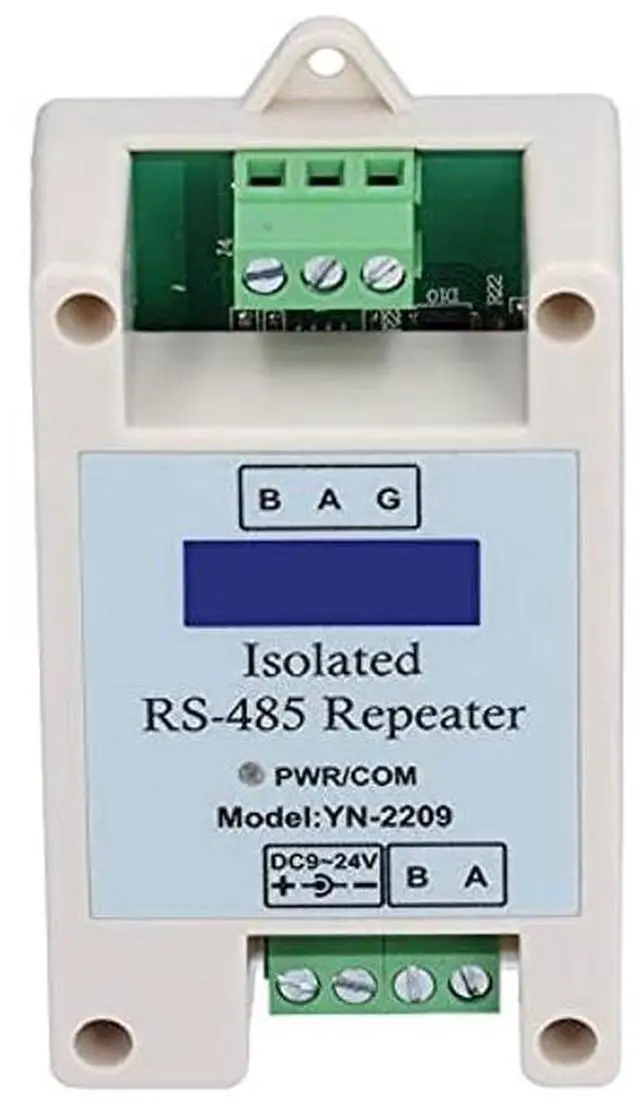

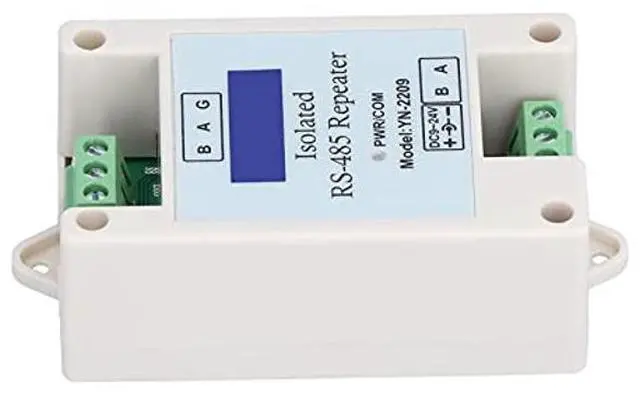

    RS485 Repeater Optical Isolator Anti Thunder Optoelectronic Isolation High Speed Hub for Expand Distance

    Be the first to review this product...
    • DESCRIPTION: The YN2209 isolated repeater is an active isolated RS485 repeater designed to solve the industrial complex electromagnetic environment. The external power supply can ensure the stability and reliability of the equipment during longterm
    • ADVANTAGE: YN2209 optical isolator can extend the existing RS485 by 1200m to solve the problem of attenuation caused by too long RS485 wiring. The baud rate supported at the same time is up to 115.2kpbs
    • FUNCTION: The photoelectric technology isolation of this RS485 converter can ensure that the equipment is not damaged by the ground loop and the common mode voltage difference during the communication process

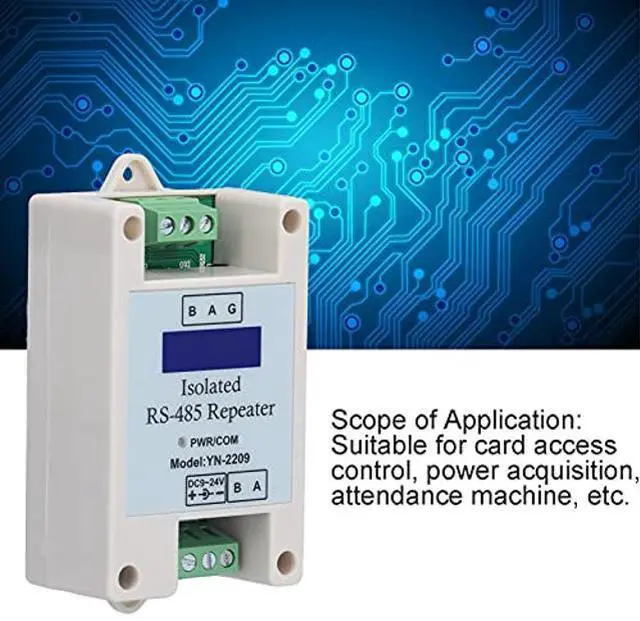

    • WIDE APPLICATION: The optical isolation splitter can be widekly used for video surveillance, building intercom, PLC, card access control, power acquisition, time attendance, etc.
    • WORKING PRINCIPLE: The direction control of the RS485 repeater bus is automatically completed by the onboard microprocessor, without s
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Specification:
    Item Type: RS485 Repeater
    Material: ABS
    Model: YN2209

    1.
    Interface Characteristics: Compatible with EIA/TIA's RS 485 Standard

    2.

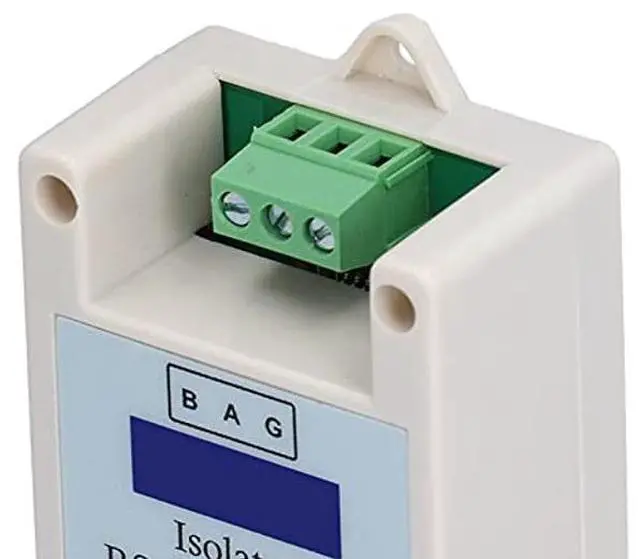

    Electrical Interface: RS 485 Bolted Terminal

    3.
    Interface: 600w Thunder

    4.
    Medium: Twisted Pair or Shielded Twisted Pair

    5. Number of
    Nodes: Maximum 32 (128 Can Be Customized, Customer Service)
    6. terminal Externally Connected As Needed
    7 Rate: 600bps- 115.2 kbps

    8.
    Distance: 4000ft (1200m) at 9.6 kbps

    9.
    Isolation Voltage: 1000V

    10.
    Input Power: DC9-24V
    11 Status Indication: Real-time Display of the On-board Transceiver Indicator

    12.
    Working Temperature: -20~65
    13. working
    Humidity: 25%~85% (non-condensing)

    Package List:
    1 x RS485 Repeater

    Note:
    Do not use outside the voltage range.
