ANMBEST 5PCS M22 Waterproof Ethernet Cat6 RJ45 Connector IP67 Outdoor LAN Coupler Adapter Male to Female with 25mm Cable

The RJ45 Waterproof Panel Mounting Connector with cable is an excellent solution for outdoor networking, industrial automation, marine applications, or any environment where protection against water and harsh conditions is essential. It ensures a reliable and durable Ethernet connection in challenging situations, contributing to the overall performance and longevity of the network infrastructure.

Specifications

:
Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (3ï½ 8) mm
Case wall thickness: Threaded
type: >3mm, through-hole type: 0.3 ~ 7.5 mm

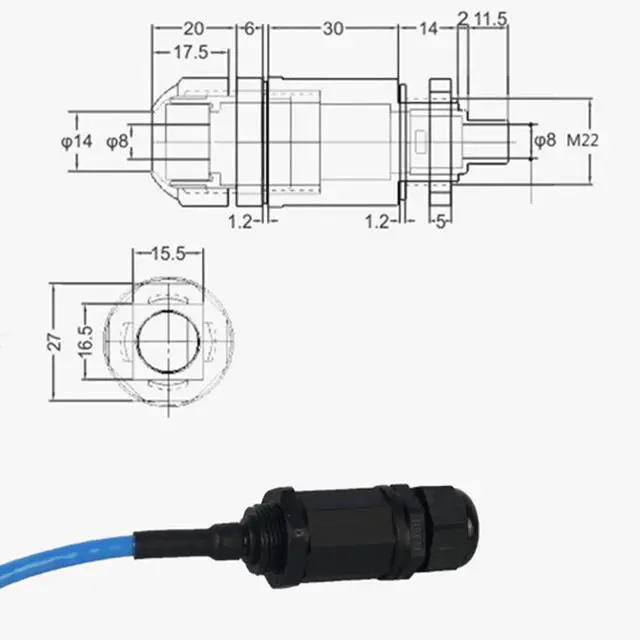

Installation size: M22X 1.5
Network cable length: 250mm
Connector transmission classification: CAT6
Transmission speed range: 10BASE-T. 100 BASE-T. 1000 BASE-T and 10000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: ï¼ 500MÎ
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: ï¼ 10mÎ

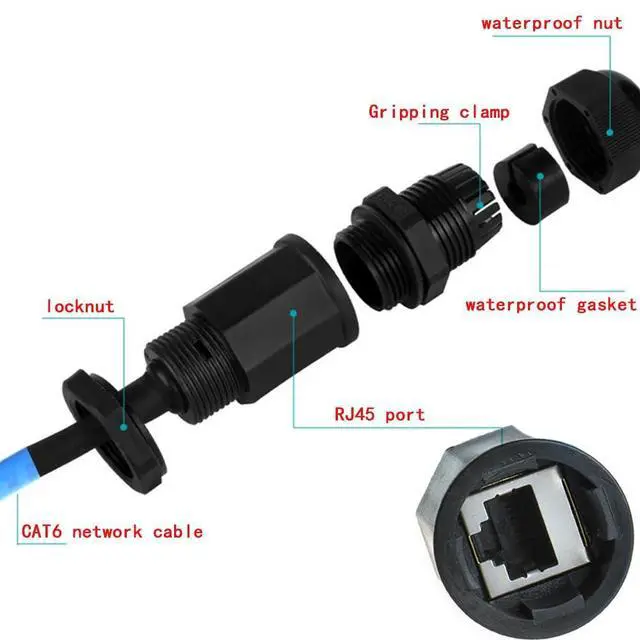

Material:
Shell: Nylon fiber
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40ï½ 120Celsius
Storage temperature: -25ï½ 85Celsius
Atmospheric pressure: 86ï½ 106kPa
Relative humidity: â ¤90% RH
Package Included:

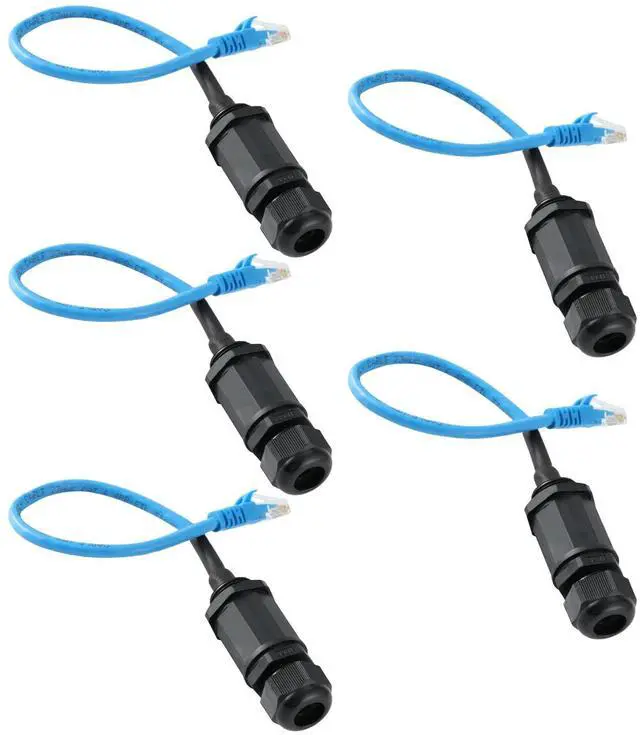

5x Waterproof M22 Cat6 RJ45 Connector
