$160.99
Meet Your Seller
VSDISPLAY 10.4 Inch 1024x768 LCD Screen LTD104EDZS Aspect Ratio 4:3 Display Screen with Driver Board VS-TY2660H-V661
- Specification10.4'' 1024x768 LCD screen kit;Aspect Ratio 4:3;Brightness 245 cd/m (Typ.);Contrast Ratio 250:1 (Typ.) (TM)
- SizeOutline Size 219.1 173.86.3 (HVD)mm;Display Area 210.432157.824 (HV)mm
- LCD BoardVideo Input: ;Audio Output: Speaker (4Pin PH2.0 connector)
- Recommend Input Power12Vdc More than 2A

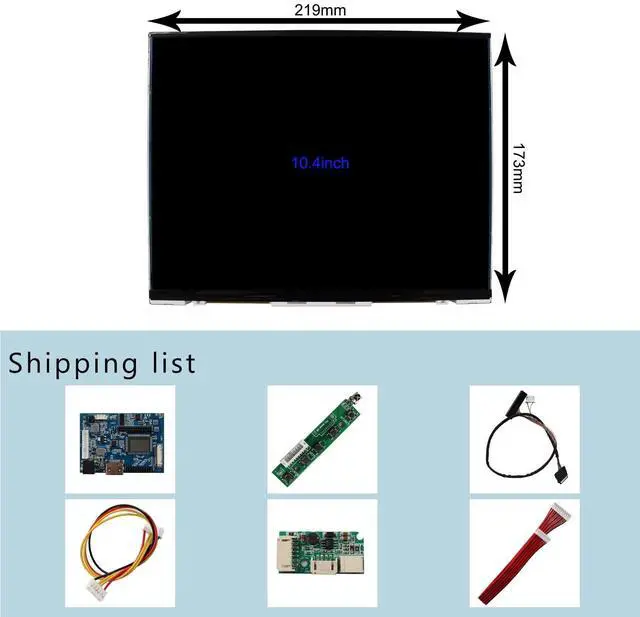

- Packing List1 Audio LCD Controller Board VS-TY2660H-V661;1 10.4" LTD104EDZS 1024x768 LCD Screen;1 LVDS Cable;1 Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

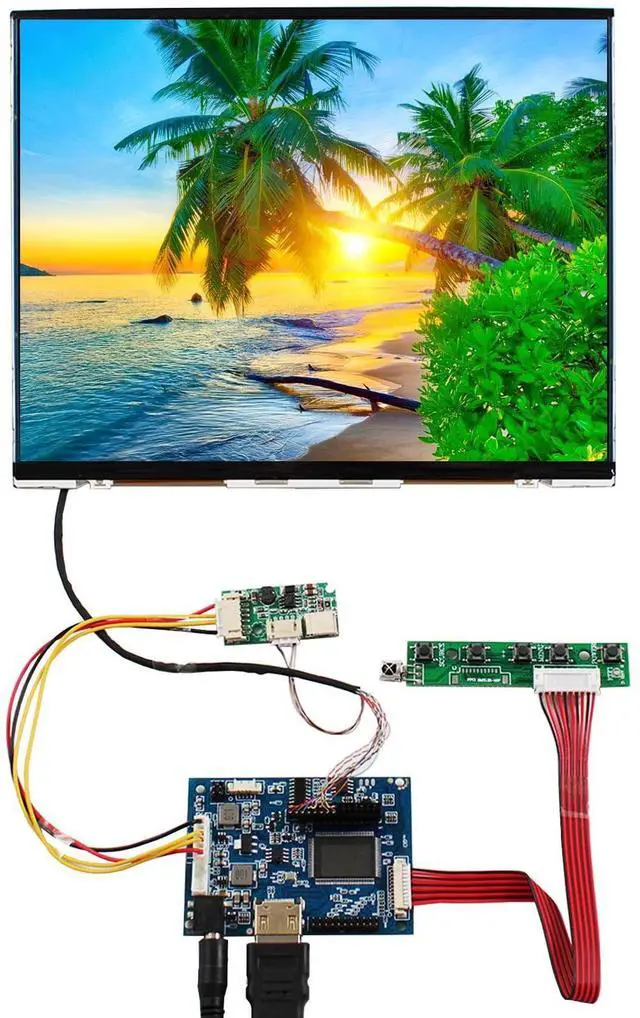

LCD Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: Audio
Input: Audio
Output: Speaker (4Pin

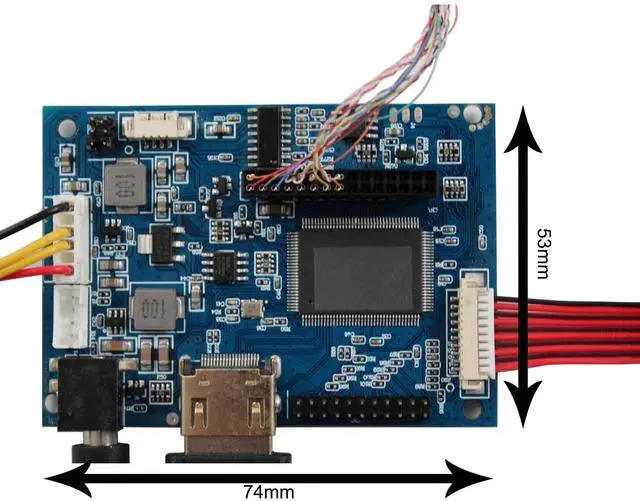

PH 2.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 10.4" LTD104EDZS 1024x768
LCD Screen: Display Mode TN, Normally White, TransmissiveResolution 1024 (RGB) 768Outline Size 219.1 173.86. 3 (HVD) mmDisplay Area 210.432157. 824 (HV) mmBrightness 245 cd/m (Typ. )Contrast Ratio 250:1 (Typ. ) (TM) Viewing Angle 60/70/70/60 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1ch 6bit) Connector 25PinBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 10.4" LTD104EDZS 1024x768 LCD Screen1 LVDS Cable1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: Audio
Input: Audio
Output: Speaker (4Pin
PH 2.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 10.4" LTD104EDZS 1024x768
LCD Screen: Display Mode TN, Normally White, TransmissiveResolution 1024 (RGB) 768Outline Size 219.1 173.86. 3 (HVD) mmDisplay Area 210.432157. 824 (HV) mmBrightness 245 cd/m (Typ. )Contrast Ratio 250:1 (Typ. ) (TM) Viewing Angle 60/70/70/60 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1ch 6bit) Connector 25PinBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 10.4" LTD104EDZS 1024x768 LCD Screen1 LVDS Cable1 Keyboard With Cable
