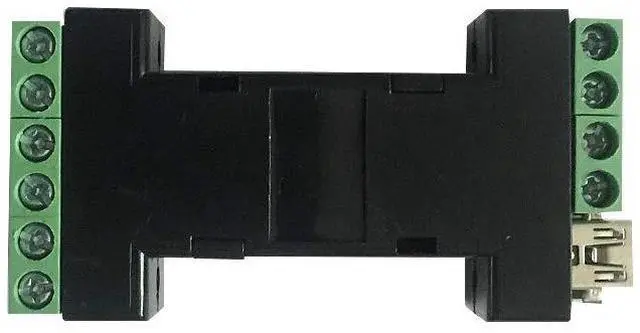

FissaiD Wiegand Converter Wiegand to USB Wiegand to Serial RS232/PS2/ABA/TTL, Serial to Wiegand Converter, Up to 128 Bits Wiegand Data, Android/Linux/Widows/iOS(Host with Serial)
- Wiegand converter accepts wiegand data from 1 to 128 bits & Auto identify the wiegand bit length
- Configurable as wiegand to serial RS232 converter, PS2/TTL/ABA converter or RS232 Serial to wiegand converter, configurable output as HEX/Decimal/Raw wiegand data
- Wiegand adapter for matching wiegand device to serial/ABA/TTL access control system or Auto control, A professioanl wiegand analyzer for understanding 3rd part wiegand device
- Wiegand reader simulator, accept data from serial then transfer it to host via wiegand as a wiegand reader, support Android Window Linus or ioS System

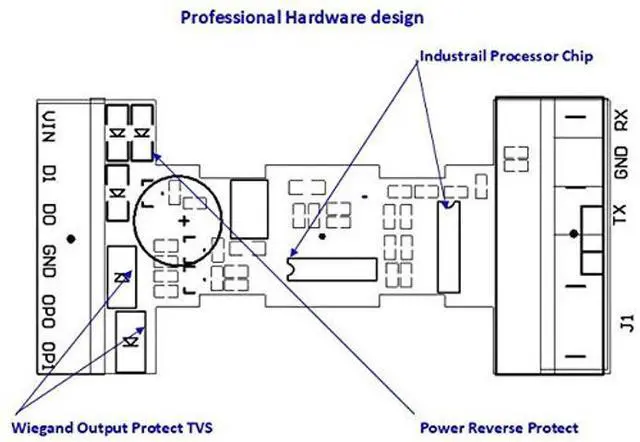

- Industrial dardware design as ESD protection, wiegand OC driver O/P distance upto 60 meters, ABS case, 7-15 DC power or 5V from USB port, buzzer enable/distable,QWERTY/AZERTY Configurable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Product ProfileA professioanl Wiegand Converter for adapter Wiegand device to Serial/TTL/ABA T2 to host machine or get data from serial & output it via Wiegand.

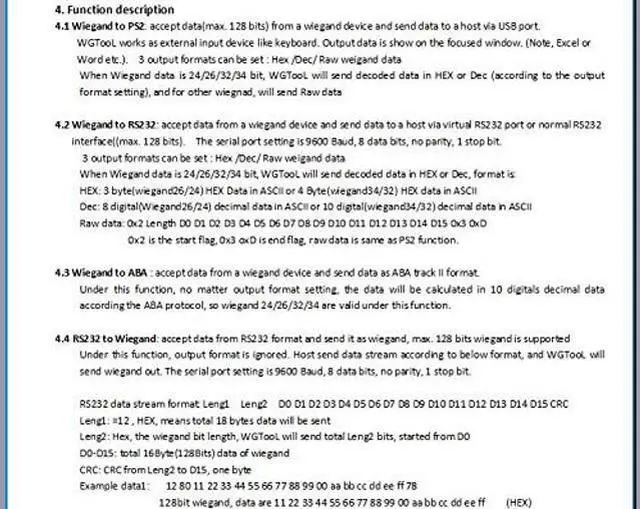

Configurable in 5 Functions: Wiegand to Serial/TTL/ABA/PS2 converter, Wiegand simulator that get data from serial and send it via wiegand. This version is suitable for host machine with serial port. 2.
Feature: -Accept and Auto identify wiegand input from 1-128 bits fromat-Output via serial RS232 /TTL/ USB/ABA track2 for
Linux/Android/Windows/iOS-5 Functions: Wiegand to serial/TTL/PS2/ABA, RS232 to Wiegand adapter-3 Output type HEX, DEC, Raw Wiegand-Buzzer sounds for result indicationt-Support
QWERTY AZERTY keyboard layout-configuable: Function, O/P type, K. B layout & buzzer on/off-Default settingWiegand to PS2; Decimal O/P, QWERTY, Buzzer on3.
Specification: -Power
suppler: 5V from USB port, or
external power 7-15V-Cousume: Standby 10mA; (max 100mA with buzzer beeps) -Wiegand
Operation range: 60
meters-Operation temperature: -20C
--- +70C-Operation humidity: 5%-95% (no condensing).
Package list: -
WGTooL converter: 1
PCs- Instruction menu: 1 PCs4. Quick Test or How to
Use: -Connect standard wiegand reader O/P to D1, D0, GND and Power on reader. -Connect USB MiniB cable on wiegand converter J1 and PC. -Open Excel or Note. -Read card on wiegand reader, Buzzer will sound and card number will be show on window. 5.
Output Type Example: A Wiegand Reader send 26 bit wiegand as 1 0001 0001 0010 0010 0011 0011 0Ouputt
HEX: 112233 (ASCII)
Output DEC: 0001122867 (ASCII)
Output Raw Wiegand: 02 1A 00 00 00 00 00 00 00 00 00 00 00 00 02 22 44 66 03 0D (HEX)
Configurable in 5 Functions: Wiegand to Serial/TTL/ABA/PS2 converter, Wiegand simulator that get data from serial and send it via wiegand. This version is suitable for host machine with serial port. 2.
Feature: -Accept and Auto identify wiegand input from 1-128 bits fromat-Output via serial RS232 /TTL/ USB/ABA track2 for
Linux/Android/Windows/iOS-5 Functions: Wiegand to serial/TTL/PS2/ABA, RS232 to Wiegand adapter-3 Output type HEX, DEC, Raw Wiegand-Buzzer sounds for result indicationt-Support
QWERTY AZERTY keyboard layout-configuable: Function, O/P type, K. B layout & buzzer on/off-Default settingWiegand to PS2; Decimal O/P, QWERTY, Buzzer on3.
Specification: -Power
suppler: 5V from USB port, or
external power 7-15V-Cousume: Standby 10mA; (max 100mA with buzzer beeps) -Wiegand
Operation range: 60
meters-Operation temperature: -20C
--- +70C-Operation humidity: 5%-95% (no condensing).
Package list: -
WGTooL converter: 1
PCs- Instruction menu: 1 PCs4. Quick Test or How to
Use: -Connect standard wiegand reader O/P to D1, D0, GND and Power on reader. -Connect USB MiniB cable on wiegand converter J1 and PC. -Open Excel or Note. -Read card on wiegand reader, Buzzer will sound and card number will be show on window. 5.
Output Type Example: A Wiegand Reader send 26 bit wiegand as 1 0001 0001 0010 0010 0011 0011 0Ouputt
HEX: 112233 (ASCII)
Output DEC: 0001122867 (ASCII)
Output Raw Wiegand: 02 1A 00 00 00 00 00 00 00 00 00 00 00 00 02 22 44 66 03 0D (HEX)
