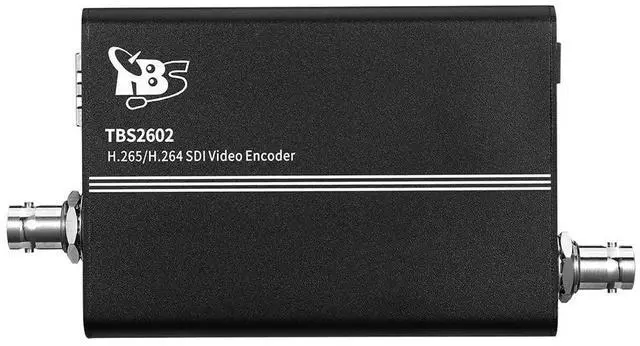

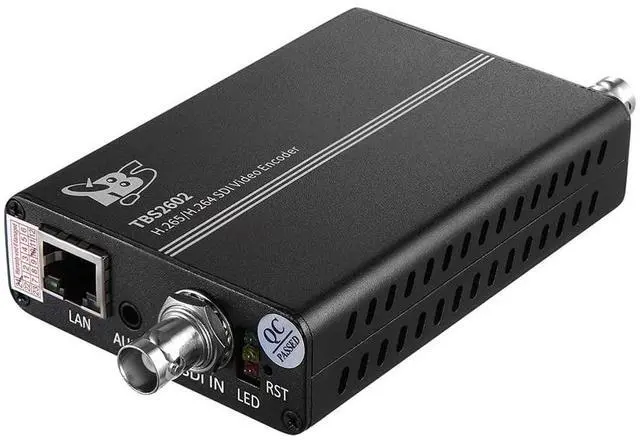

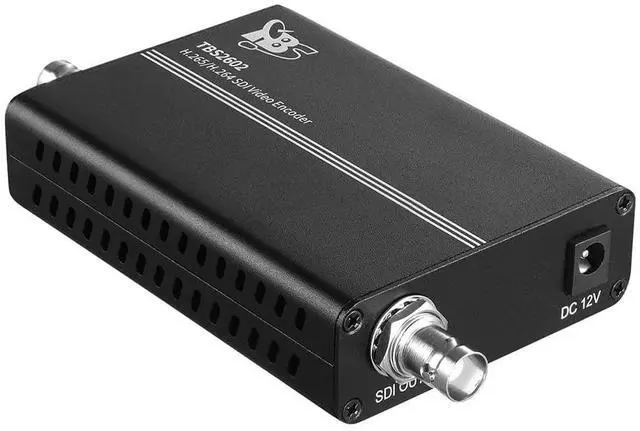

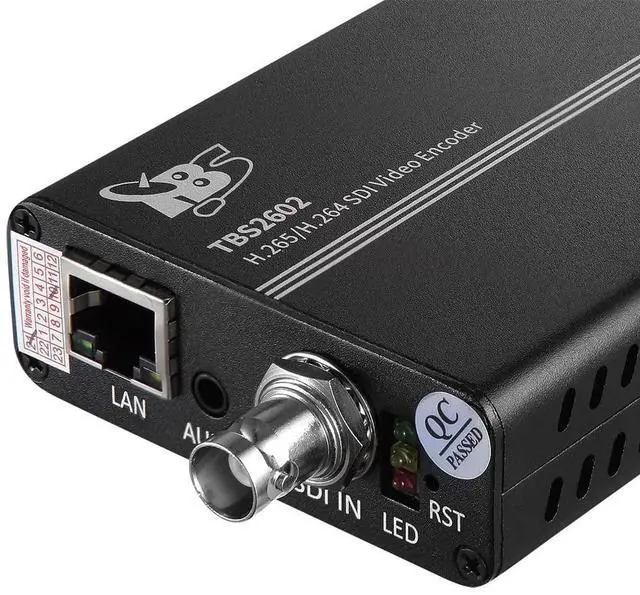

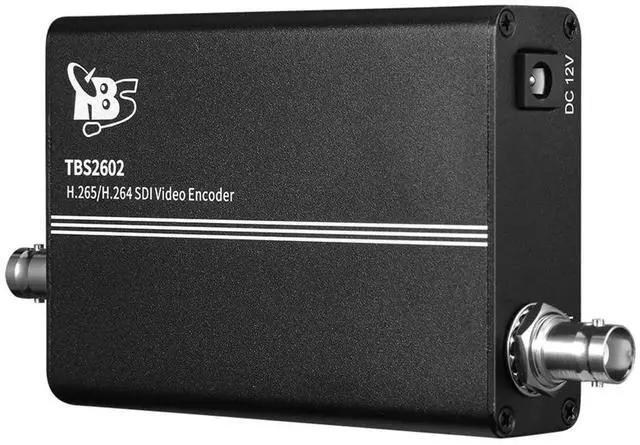

TBS TBS2602 NDI^^HX2 SDI Video Encoder HTTP HLS RTSP RTMP RTP UDP
- NDI
- HX2: Been integrated native NDI
- HX2 support, which allows to send your SDI video source through your local network, over Ethernet for use with other NDI
- HX2 compatible systems
- H.265/H.264: Supports H.265/H.264 High Profile code format encode and dual stream H.264 format, audio ACC format output
- 1 SDI INPUT 2 OUTPUT: A professional high-definition video encoder, which equipped with 1 SDI channel input and dual stream RJ45 output
- WIDELY PERFORMANCE: Used for IPTV, Digital Signage, Video Conference, Replace HD Video Capture Card, Hotel TV system, Live Broadcast, Teaching/Campus Broadcast and Recording System
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Input: 1 Channel SDI input, 1
Channel line in audioOutput: 1 channel
IP signal outputVideo: Input
Resolution: 1920x1080p, 1920x1080i, 1280x720, 720x576i, 720x576p, 640x480i, and ect.
Codec: H. 265 / H.
264Coding level: H. 265 Main profile; H. 264 Baseline profile; H. 264 Main profile; H.
264 High profileEncoded size: 1920x1080, 1680x1056, 1280x720, 1024x576, 960x540, 850x480, 720x576, 720x540, 720x480, 640x480, 640x320, and ect.
aspect ratio: 16:9, 4:3
Color setting: Brightness, Contrast, SaturationBitrate
control: CBR, VBR
Biterate: 16Kbps
~ 12MbpsVideo frame rate: 5
~ 60 fpsOSD: Text, ImageAudio: Input
selection: SDI
embedded: 1 channel
SDI embedded audioLine in: 1 channel 3.5 mm Jackindependent audio support audio gainAudio coding: AAC(LC/HE), MP3, MP2, G.
711Audio bit rate: 24Kb/s
~ 320Kb/sSampling rate: 32000, 44100IP
Output: 1 RJ 100M / 1000M adaptive Ethernet port, dual-stream (H.
265/264 TS stream)System:
Protocols: HTTP, HLS, RTSP, RTMP, RTP/UDP unicast & multicast, SRT (Caller mode, Listener
mode)Configuration management: Web User interface, remote upgrade, multi-one
management platformPower supply: 12V
~ 2APower consumption: 5WOperating
temperature: -20
~ 60Working humidity: <90%, Non-condensing
