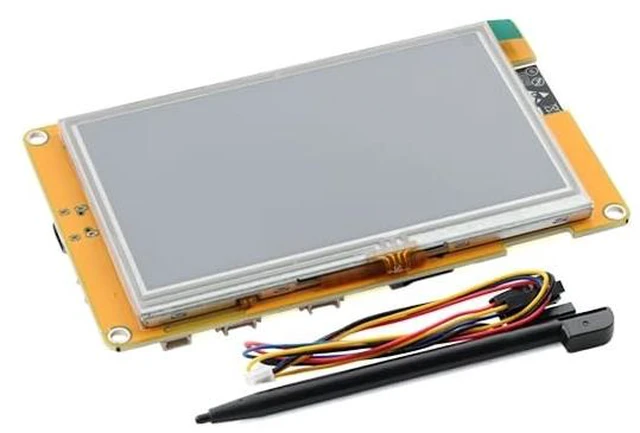

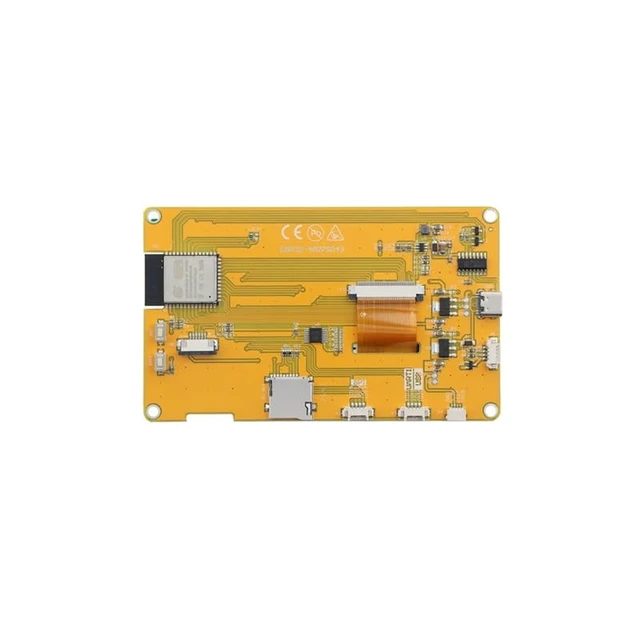

    EC Buying ESP32-S3 4.3 Inch 480x272 LCD Development Board TFT Display with WiFi & Bluetooth, Resistive Touch Screen, 16MB Flash 8MB PSRAM, LVGL HMI GUI Module

    Be the first to review this product...
    • High-Performance ESP32-S3 with WiFi & Bluetooth: Powered by the ESP32-S3 dual-core processor (up to 240MHz), this board integrates 2.4GHz WiFi and Bluetooth for stable and efficient wireless communication. With 16MB Flash and 8MB PSRAM, it offers strong memory capacity and processing performance for IoT control panels, smart devices, and embedded HMI systems
    • 4.3 480272 Standard Definition TFT LCD: Features a 4.3-inch TFT LCD with 480272 resolution and 16-bit RGB 65K color output. The display delivers clear visuals and stable performance, suitable for dashboards, automation interfaces, monitoring systems, and industrial equipment panels
    • Durable Resistive Touch Panel: Equipped with a resistive touch screen that supports precise single-point input using finger, stylus, or gloved hand. Ideal for industrial environments and applications requiring reliable touch control under various working conditions
    • LVGL Compatible for Advanced GUI Development: Fully supports LVGL (Light a
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now
    Product Description The ESP32-S3 4.3 -inch LCD Development Board is a compact and powerful solution for HMI (Human-Machine Interface), IoT control systems, and embedded GUI development. Combining a 4.3 -inch standard-definition TFT display with a resistive touch panel and the advanced ESP32-S3 dual-core MCU, this board integrates wireless communication, graphical display, and flexible expansion capabilities. This version features a 480272 resolution display with a durable resistive touch screen, making it suitable for industrial equipment, factory control panels, and applications where operation with gloves or stylus is required.
    Product

    Specifications

    MCU: ESP32-S3 Dual-Core Processor (up to 240MHz)
    Wireless: 2.4GH z WiFi +
    Bluetooth Flash Memory: 16MB
    PSRAM: 8MB
    Display Size: 4.3 inch TFT
    LCD Resolution: 480 272 pixels
    Display Color: RGB 65K (16-bit)
    Touch Type: Resistive Touch
    Operating Voltage: 5V
    DC Working Current: Approx.
    400500mA Operating Temperature: -20C to 70C
    Storage Temperature: -30C to 80C Main Pin Functions 5V Power supply input GND Ground reference 3V3 3.3V output for external modules GPIO General-purpose input/output pins UART (TX/RX) Serial communication and debugging I2C (SDA/SCL) Peripheral communication interface SPI (MOSI/MISO/SCK/CS) High-speed communication interface USB Port Programming and power supply Memory Card Slot External storage expansion
