Coolerguys Pre-Set Thermal Controlled Cooling Kits for Cabinets, AV, and Components (Single 92mm, Thermal Plastic)

CABCOOL901 Single 92mm Fan Cooling kit for Cabinet / Home Theaters

This is a complete *kit with pre-set thermal switch for a single fan unit (120 x 120 x 38mm) that will quietly cool your cabinet or multimedia center.
Also includes our 110v AC to 12v DC Power Supply with 4 Pin Molex (2000mA) for powering fan from standard wall outlet.

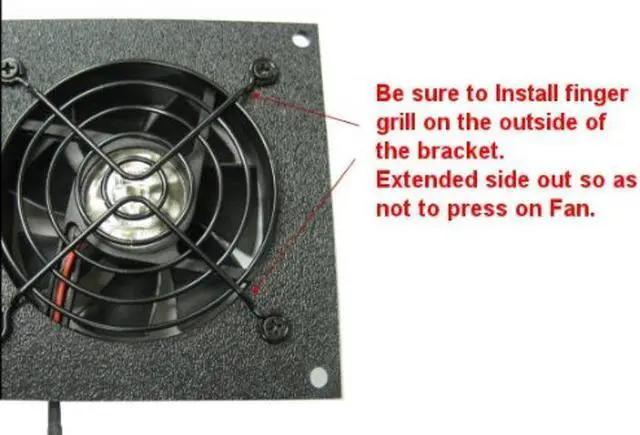

Can be mounted on any side of a cabinet, where room permits. Insert completed cooler assembly in hole and attach to cabinet with appropriate screws. Fans can be set to blow into or out of the cabinet depending on your needs. If you need additional information contact us.

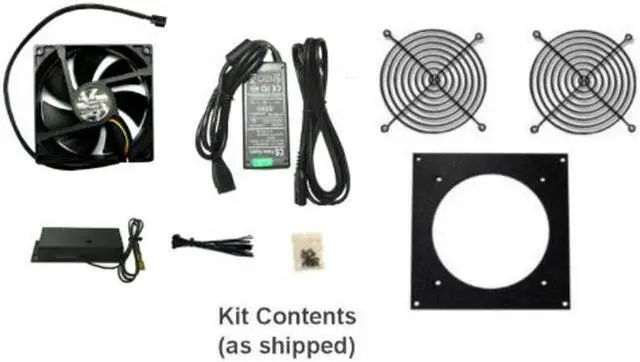

Cooling Unit includes the following:
(1) Pre-set Thermal controller, On @ 86 Off @ 81
(1) Coolerguys 92mm Ultra Quiet Low Speed Dual Ball Fan
(1) 110v AC to 12v DC Power Supply with 4 Pin Molex (2000mA)
(1) Black Acrylic Fan bracket (120 x 120 x 4mm)
(2) Black 92mm fan grill
Fan Screws to attach grill (s)
Pack - 4" Nylon Multi-Purpose Tie Black
(4) 1/2" black Cabinet screw (s)

All necessary screws, cables, and fasteners to complete the unit.

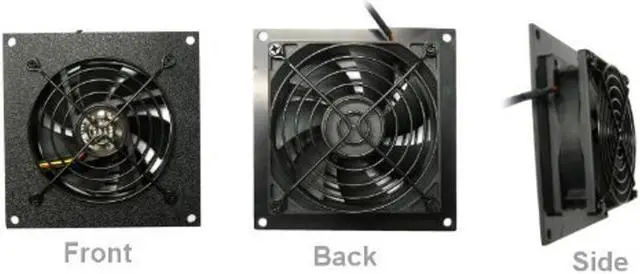

Completed dimensions: 120 x 120 x 38mm
Cabinet Cutout size: 97 x 97mm

Fan

Specifications

:
Model: CG09225L12B2-3Y
Dimensions: 92x92x25mm
Rated Voltage: 12 Volts
Input current: 1.08 Amp Max
Storage temperature: -40 to +70 C
RPM: 1500 +/- 10%
CFM: 30.39
DBA: 19
Corners Open
Connector: 3 Pin w/ 12" Tail
Dual ball bearing
50, 000 hours
RoHS Compliant
