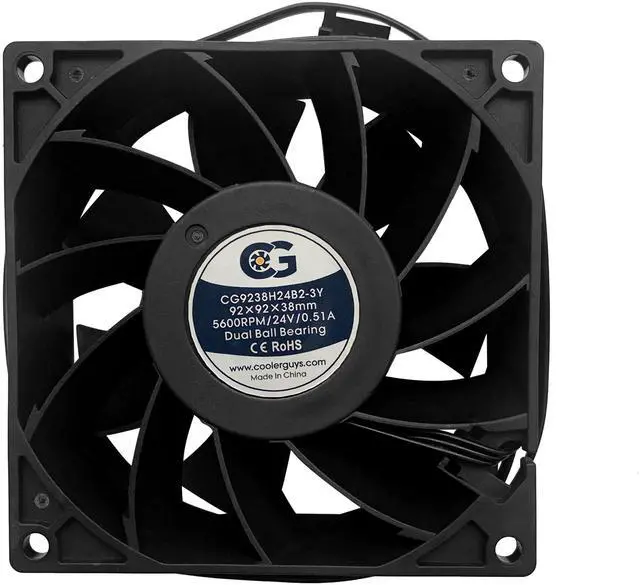

Main image of Coolerguys 92x92x38mm 24 VDC 3Pin High Speed Fan CG9238H24B2-3Y

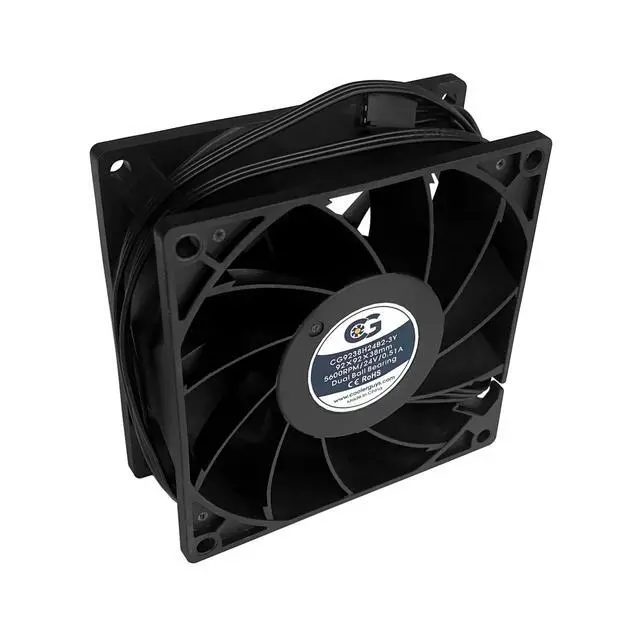

Alt view image 2 of 3 - Coolerguys 92x92x38mm 24 VDC 3Pin High Speed Fan CG9238H24B2-3Y

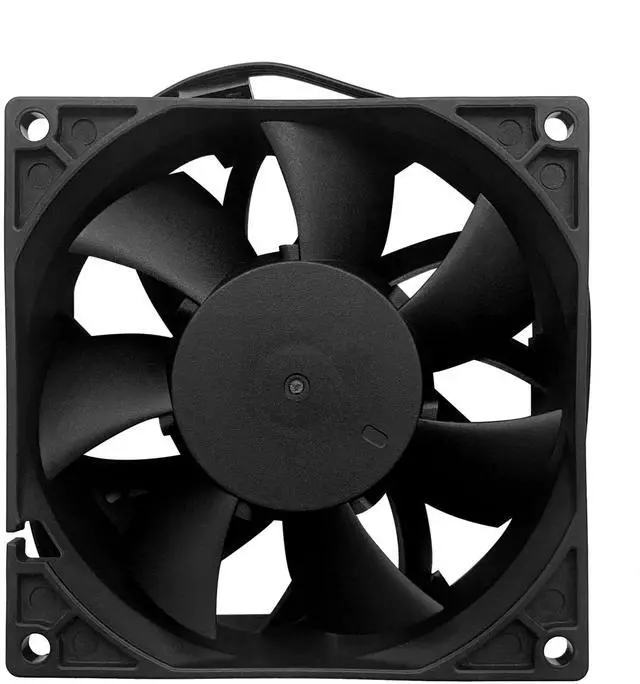

Alt view image 3 of 3 - Coolerguys 92x92x38mm 24 VDC 3Pin High Speed Fan CG9238H24B2-3Y

Shop All Coolerguys Products | Visit CloudBeast Store

Coolerguys 92x92x38mm 24 VDC 3Pin High Speed Fan CG9238H24B2-3Y

Powerful and Efficient Cooling: With a fan speed of 5500 RPM and an airflow of 106.22 CFM, this high-speed fan provides excellent cooling performance, ensuring optimal temperature control for your equipment.
Reliable Dual Ball Bearing: The dual ball bearing design enhances its durability and ensures smooth operation, resulting in a longer lifespan of up to 67,000 hours at 25.
Wide Voltage Range: Rated at 24 VDC, this fan is compatible with various power systems, making it suitable for a wide range of applications and ensuring stable performance.
High Static Pressure: Its static pressure of 22.16(mmH2O) makes it well-suited for situations where efficient airflow is needed, such as in densely packed or restricted spaces.
Low Noise Operation: Despite its high speed, this fan maintains a noise level of 56.2 dBA, striking a balance between powerful cooling and reduced operational noise.
Durable Construction: Made from sturdy PBT materials, both the frame and impeller are desi

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Coolerguys 92x92x38mm 24 VDC 3Pin High Speed
Fan CG9238H24B2-3Y840556075790PRODUCT SPECIFICATIONS: Fan
Size: 92x92x38mm
Bearing Type: Dual
Ball Bearing Wire Option: 3 Wire with Tachometer, Length - 762mm (30in)
Connector: 3-Pin 2510 MOLEX (Female Housing/Male Pin)
Fan Speed: 5500 (RPM) 10%
Airflow: 106.22
CFM Rated Voltage: 24 VDC
Input Current: 0.51 (A) 10%
Noise Level: 56.2 dBA
Static Pressure: 22.16 (mmH2O)
Lifespan: 67, 000 Hours at 25
Operation Temperature: -10 to +70
Corners: Open
Frame Material: PBT (Black)
Impeller Material: PBT (Black)
CERTIFICATIONS: CE ListedRoHS CompliantWe trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
