Aquacomputer OCTO Fan Controller for PWM Fans

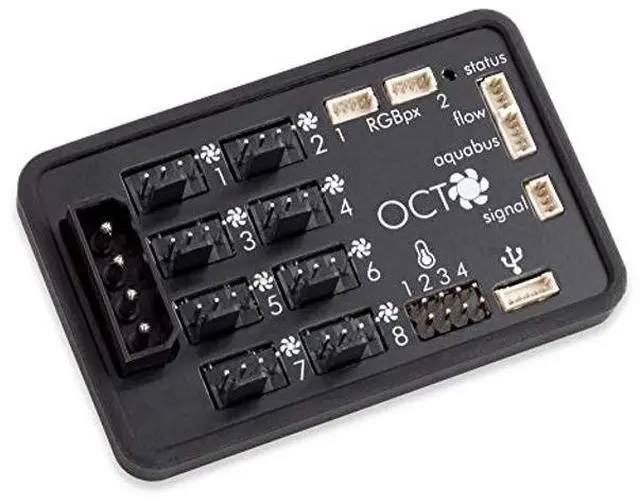

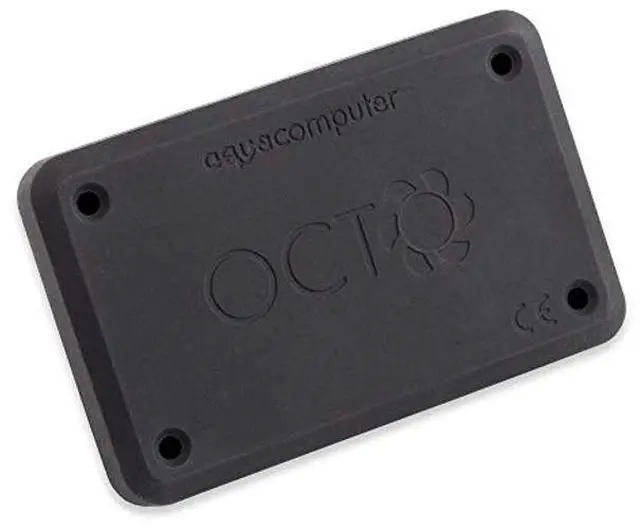

The OCTO made by Aqua Computer is an eight channel PWM fan controller with outstanding functionality, equally suited for water cooled or air cooled computers. Additionally, it features an RGBpx effect controller for 180 addressable LEDs. Key features of the

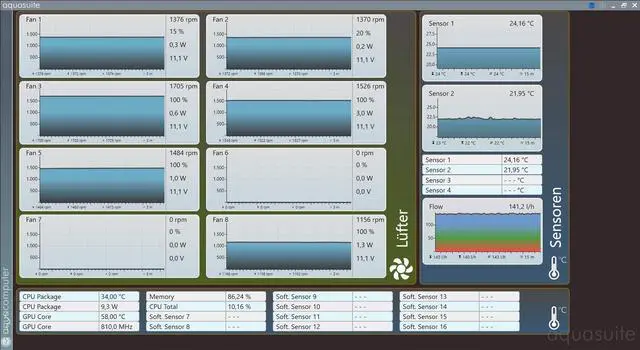

OCTO include: * Programmable eight channel fan controller * All fan outputs supply up to 25 Watt of power per channel and include speed monitO-ring (max. 100 W combined) * All fan outputs with 4-Pin connector and PWM controlled * All fan outputs can be switched off completely * Versatile control options * Four temperature sensor inputs * Sixteen further values can be transferred from the PC to the OCTO using the aquasuite software * Flow sensor input * Two RGBpx LED outputs for LED strips and fans with individually controllable LEDs * USB 2.0 interface * aquasuite software for a comfortable setup, evaluation and visualization of all sensor data * aquabus interface: When connected to an aquaero, the fan outputs can be controlled by the aquaero Technical details
Dimensions without attached cables: ca. 76 x 48 x 17 mm
Supply voltage: 5V, 12V
Maximum fan output power: 25 watts per channel, combined maximum 100

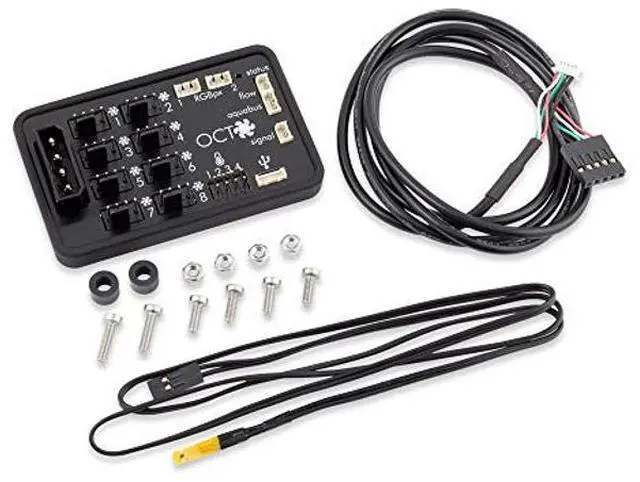

W PWM control signal: 0 - 100 %, resolution 0, 1 % Scope of delivery - OCTO controller - one temperature sensor, length approx. 70 cm - one internal USB cable, length approx. 100 cm - mounting material System requirements - Windows 10 or newer - Internal USB 2.0 port
Model: 53286
