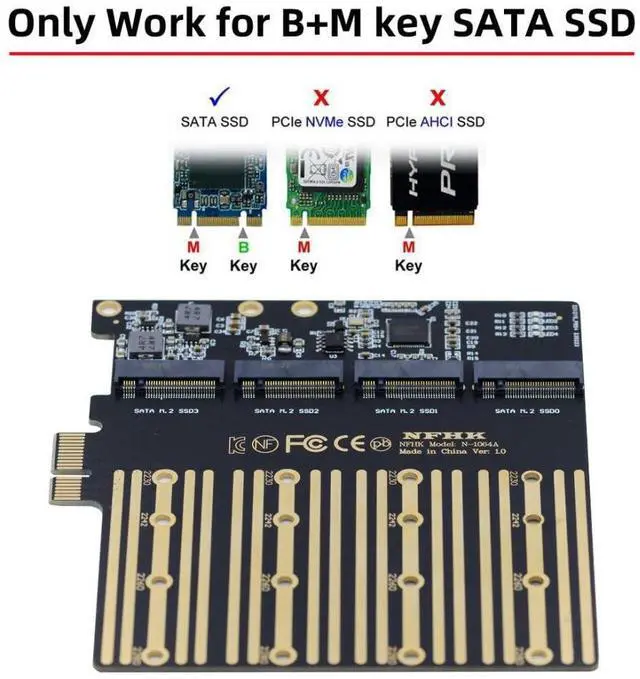

The adapter can only support M.2 NGFF SATA protocol SSD, not support NVME protocol SSD.If you are unsure of the SSD protocol, please send pictures to customer service to confirm if it supports your SSD.
Please make sure that your motherboard has a PCle slot,the adapter card does not support PCI slots, which is extremely important! Inserting the wrong position or inserting it backwards will burn the device!

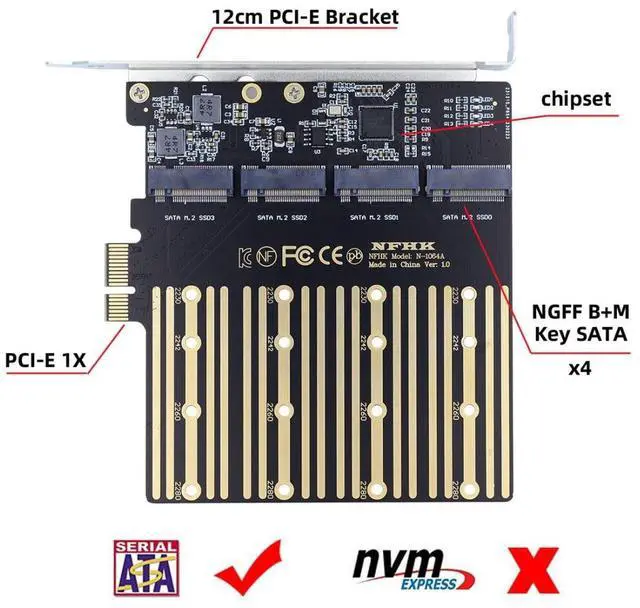

It has PCI-E X1 interfaces, which can be connected to four SATA SSDs, and supports desktop motherboard PCI-E port.

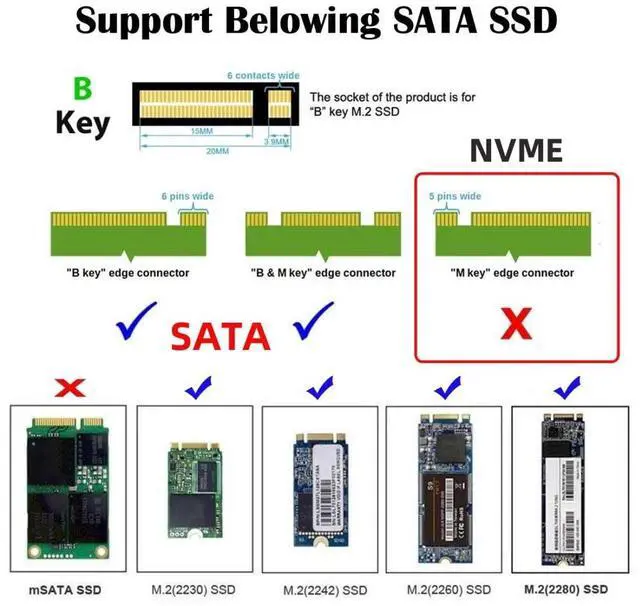

Supoort SATA NGFF Key B+M SSD with 2230/2242/2260/2280.

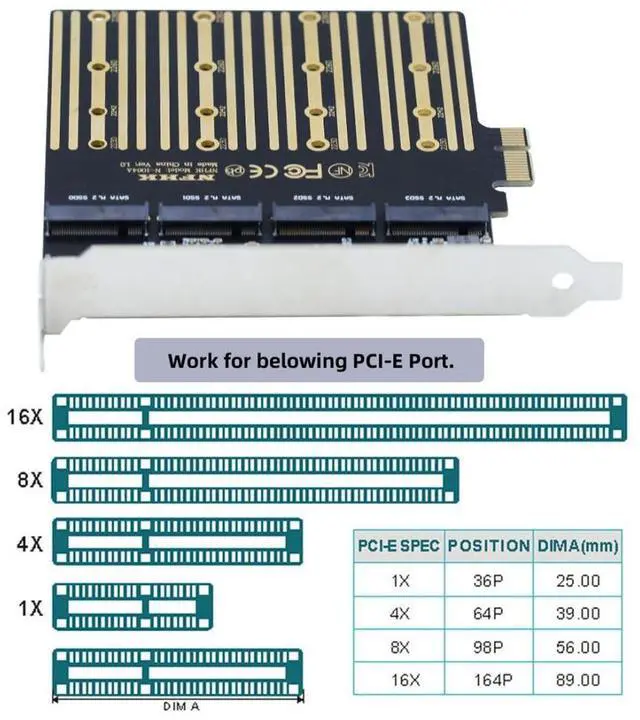

The PCI-E slot is X1 and also support X4/X8/X16.Main control chipset: ASM1064.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
chenyang M. 2 SSD to PCI-E X1 Adapter 4 SATA SSD to PCIe 3.0 / 4.0 Expansion Card Adapter ASM1064 Chipset with 12cm PCI-E Bracket
Learn more about the Detailed Specifications
Additional Information
First Listed on Newegg
September 30, 2025
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
