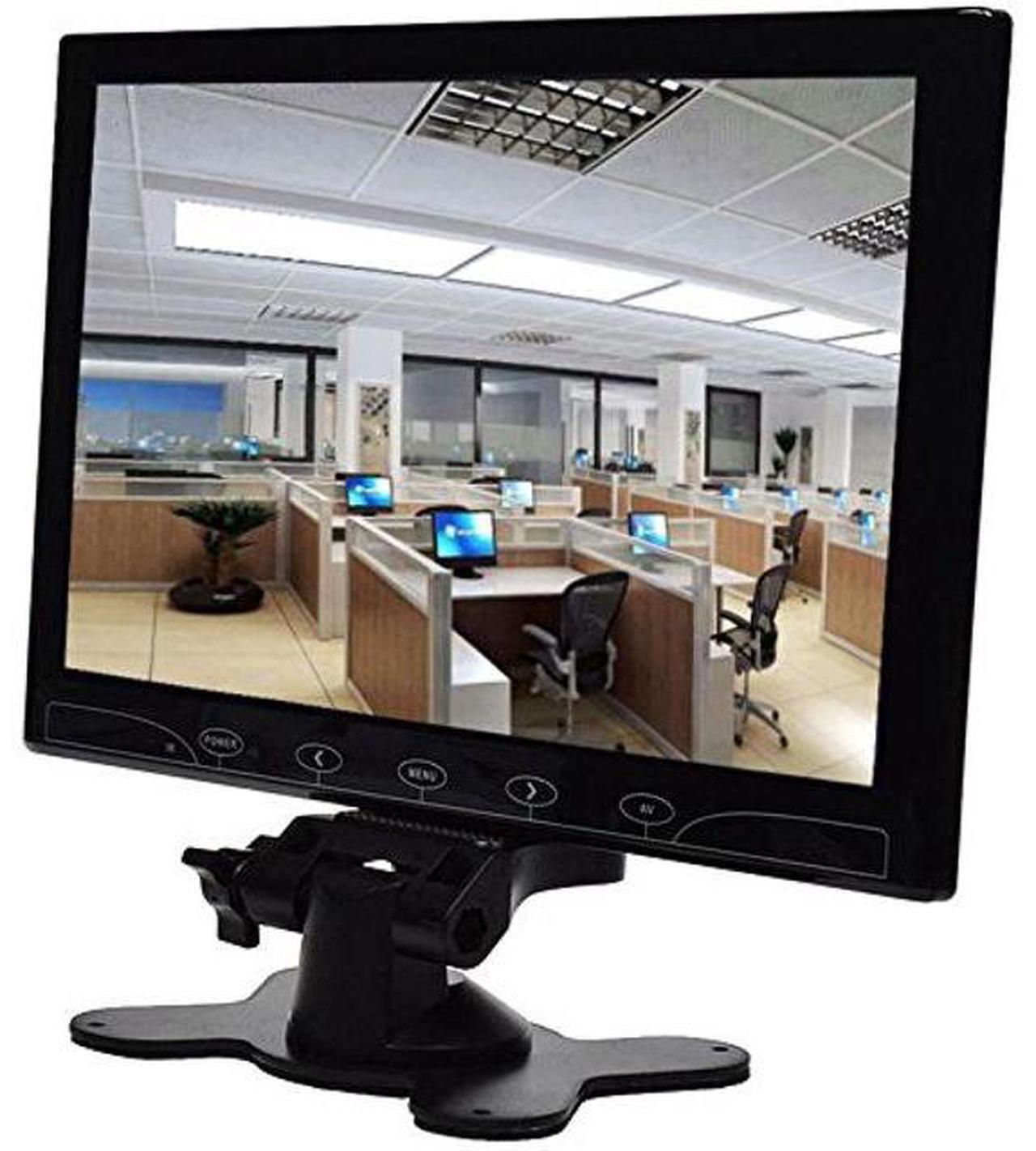

PONPY 10.1" Ultra Thin 16:9 HD 1024x600 TFT LCD Color Display Touch Button Monitor Screen with AV HDMI VGA Video Input for Raspberry Pi 3B+ / Mini PC Display/Home Security/CCTV Camera
- [(Mini & Portable)] Super slim design with about 1 inch thickness, screen aspect ratio is 16:9. This 10.1" LCD monitor is designed tiny and light, you can even carry it in your handbag. Warm tips: The headphone jack is still in testing phase which can not be used temporarily.
- [(Visual Enjoyment)] The super 10.1 inch TFT LCD monitor display screen with HD 1024*600 high resolution delivers excellent detail, work stable and anti-jamming, bright saturation image and high color reduction give you a pleasant visual enjoyment.

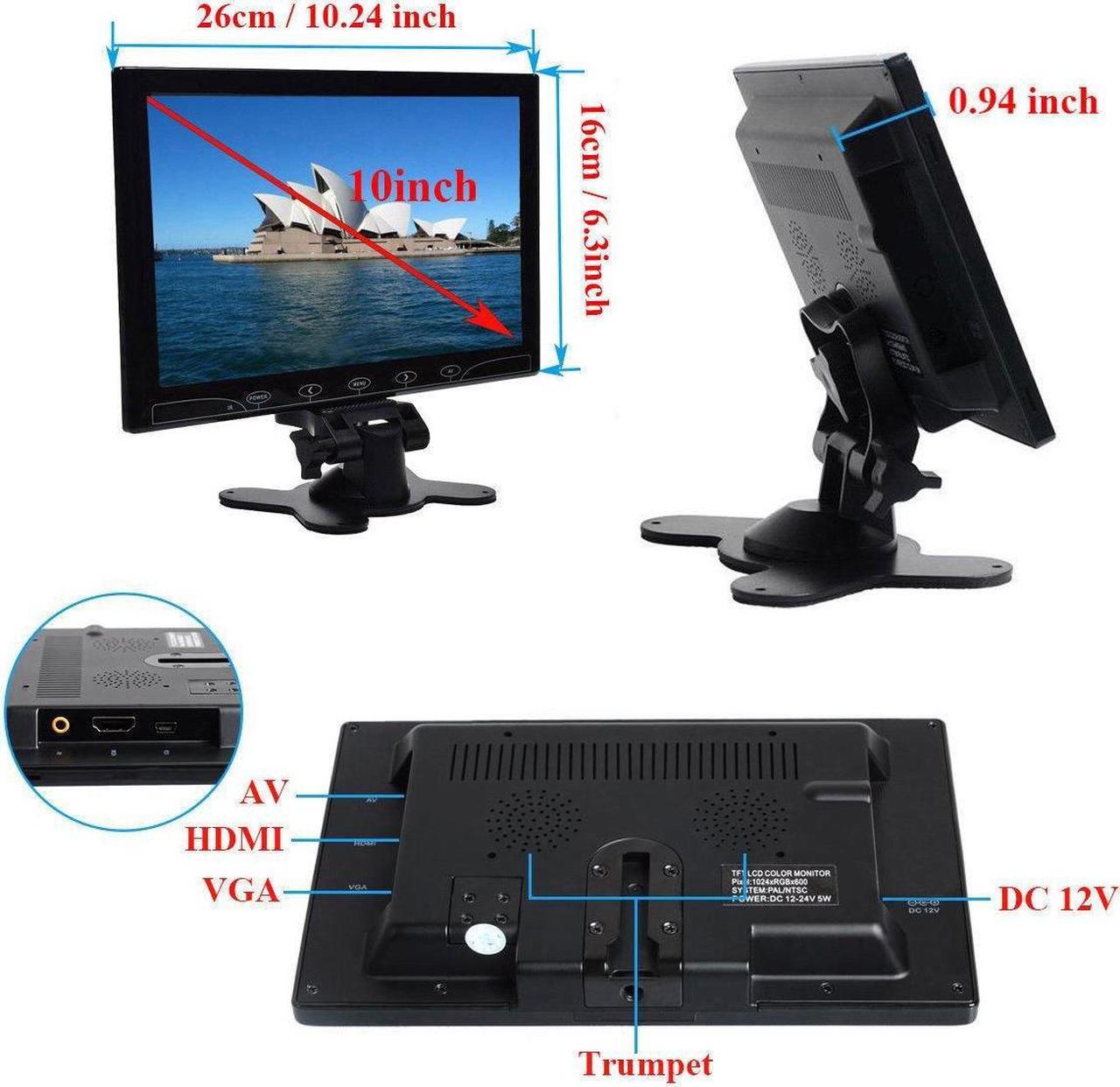

- [(Personalized Features)] Item size: 10.24"(length)x6.30"(width)x0.94"(thickness), package weight: 1.65lbs. Built-in 1.5W high fidelity speaker, with high sensitivity touch buttons operation and full-function remote control, make it more convenient to operate via multi-language menu.

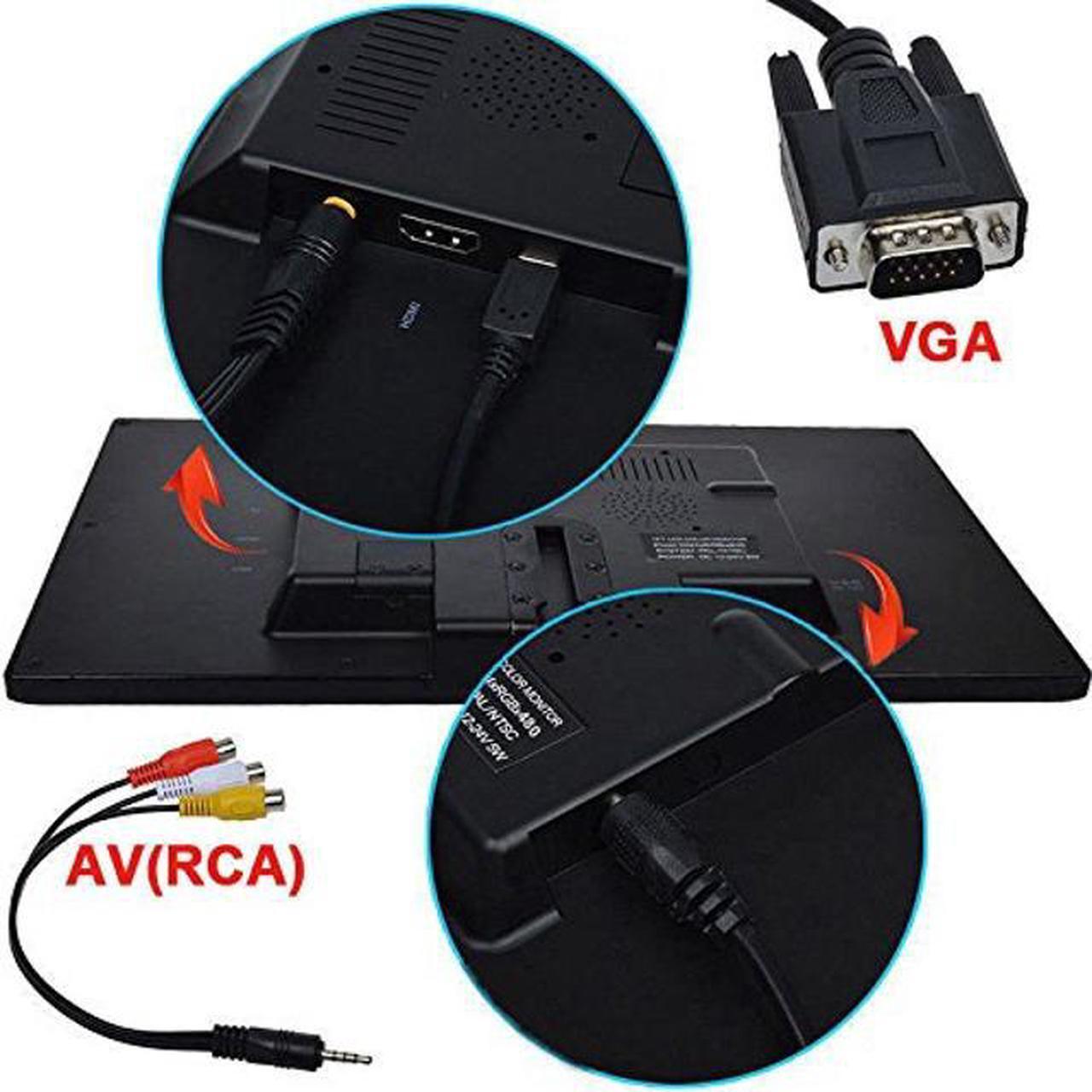

- [(Extensive Use)] With rich input ports include 2 way video input(AV/RCA), 1 way audio input, 1 way HDMI&VGA input, it can be perfect used as CCTV security monitor, PC monitor, DSLR
+
+
Overview
Specs
Reviews
Specifications
:1.
Screen Size: 10.1 inch
2.
Display Component: Color TFT LCD
3.
Screen Ratio: 16:9
4.
Pixel: 1024 (H) * 600 (V)
5.
System: PAL / NTSC system (auto switch)
6.
Display Area: 154.08 (W) x 85.92 (V)
7.
Physical Resolution: 800 x 480 60Hz, support 1920 x 234 75Hz
8.
Synchronous Range: 30-80KHz (level), 55-75Hz (vertical)
9.
PLug & Play: VESA DDC 1/2B
10.
LED Backlight Brightness: 250cd/m2
11.
Contrast Ratio: 300:1
12.
Viewing Angle: 180 degree (Left / Right); 155 degree (Up / Down)
13.
Power Supply: DC 12V / 24V
14.
Power: 5W
15.
Support Operating System: DOS / Window 9X, ME, 2K, XP, 7, 8, Vista, NT, CE, LINUX, Mac and so on
16.
Working Temperature: -20 ~ +65 Celsius
17.
Working Humidity: 10 ~ 90%
18.
Storage Temperature: -20 ~ +80 Celsius
19.
Storage Humidity: 5 ~ 90%
20.
Housing Material: ABS
21.
Color: Black
22.
Product Size: 260 x 160 x 23mm
23.
Net Weight: 417g
24.
Package Size: 270 x 165 x 85mm
25.
Package Weight: 839g
Function of keys:
1. "POWER": On /
Off
2. "VOL-": Select this key to adjust volume "down"
3. "VOL+": Select this key to adjust volume "up"
4. "MODE": To switch the mode to
AV1/AV2/VGA/HDMI
5. "MENU": Press the key can circularly open menu
Note: The DC 12V wall adapter is included. And there is no headphone jack.
Package Includes:
1 x 10.1" Monitor
1 x Bracket
1 x Video Cable
1 x VGA Cable
1 x 12V Wall Adapter
1 x Remote Control
1 x User Manual
PONPY After Service: 30 Days Money Back Guarantee, 12 Months Warranty!
