Geekworm X1205 5V UPS HAT Shield for Raspberry Pi 5|Max 5.1V 6A Output|Wide 9-18V Input|Auto Power On|Safe Shutdown|Power Loss Detection Function
- Compatibility: Pi 5 UPS HAT compatible with Raspberry Pi 5 16GB/8GB/4GB; Model: X1205, Matching Case is X1205-C1

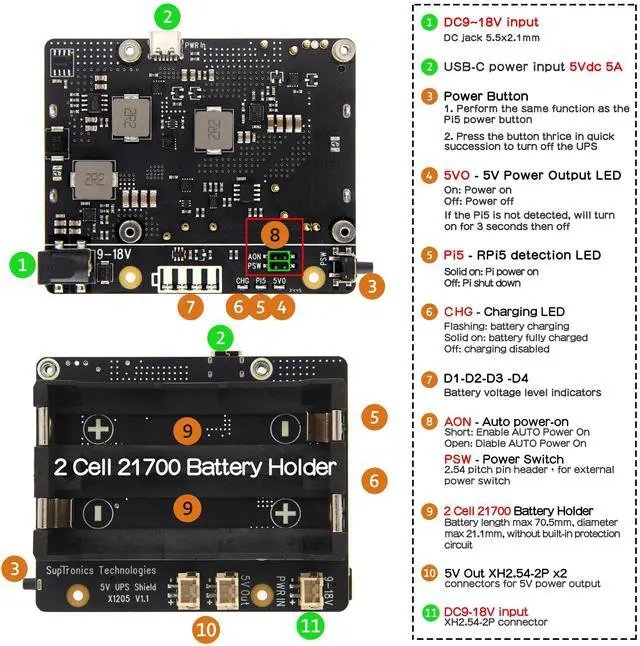

- Function: X1205 provides max 5.1V 5000mA Power Backup, intelligent and safe power management like auto power on, safe shutdown, power loss and power adapter failure detection

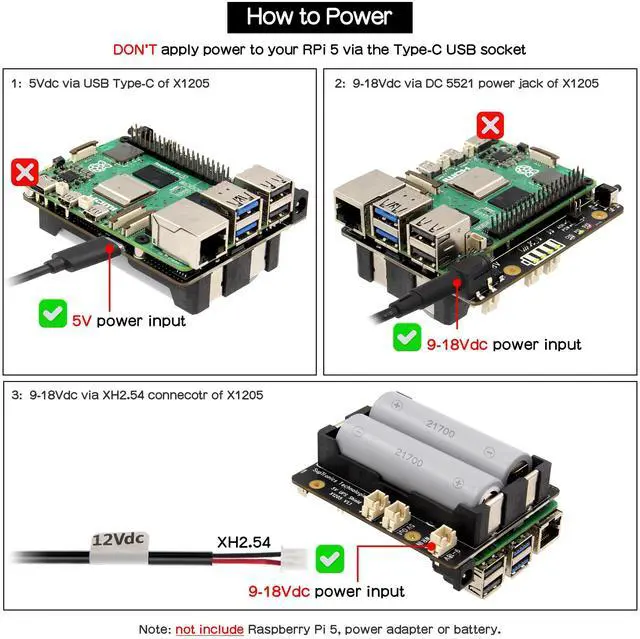

- How to Power(Select 1 from 3): 1. 5Vdc 5A via USB Type-C of X1205; 2. 9-18Vdc >=3A via DC 5521 power jack of X1205; 3. 9-18Vdc >=3A via XH2.54-2P connector of X1205
- User Manual: Google Geekworm WiKi search X1205 and refer to user manual for hardware and software guide

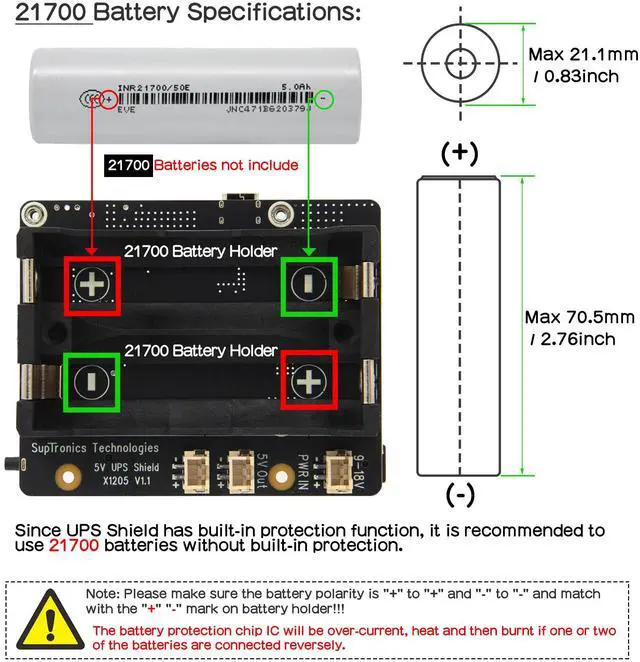

- 4-Cell 21700 Battery Supported: Battery length max 70.5mm, diameter max 21.1mm (NOT include batteries, please prepare yourself!)

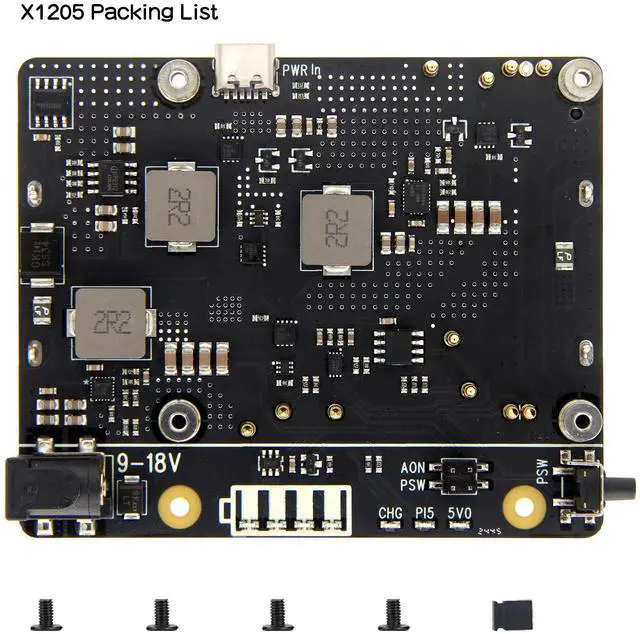

- Packing List: 1 x X1200 5V UPS Shield, 4x M2.5 x 5 mm screws; Not include Raspberry Pi 5, batteries or power adapter
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

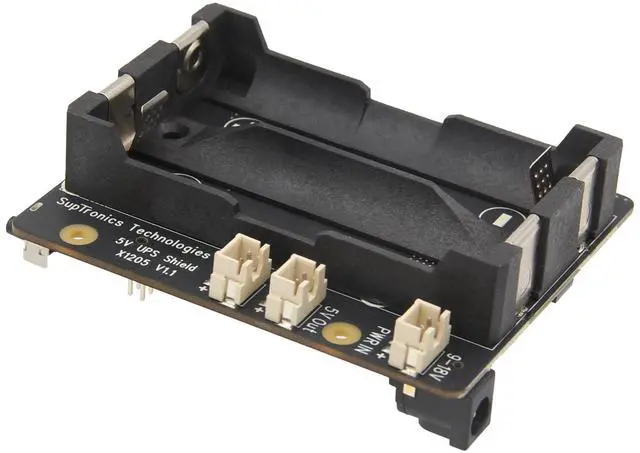

This X1205 is an ultra-compact advanced uninterruptible power supply expansion board designed specifically for the Raspberry Pi 5. It features a 2-cell Lithium 21700 battery holder, supporting up to 10, 000mAh (with 2 cell 21700 batteries), With its advanced features and robust power backup capabilities, the X1205 is perfect for even the most demanding Raspberry Pi setups.
