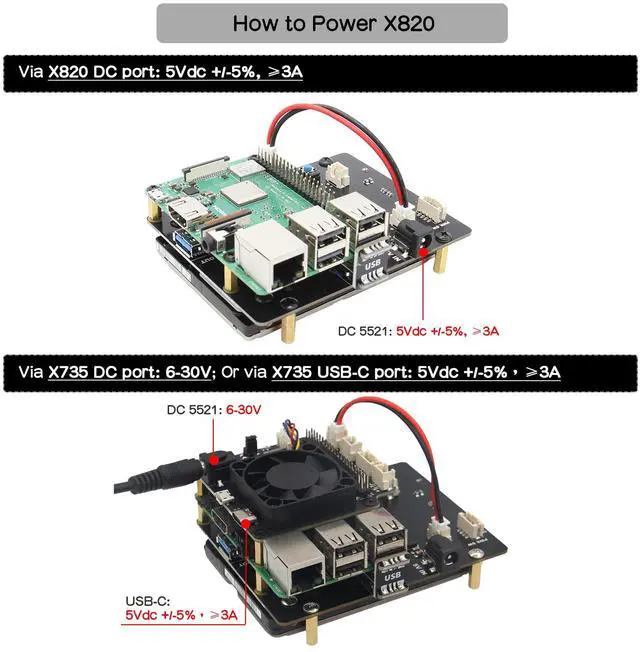

Please use this high quality certified DC 5V 4A power supply(ASIN :B07413Q5Y4).Power supply request: 5Vdc +/-5% , 4A; The power adapter not only powers Raspberry Pi board but also powers your SSD or HDD. If the power is low, the SSD/HDD may not be identified or damage your RPi or X820 board. [Do Not Use ASIN:B01K0608A0!!!]

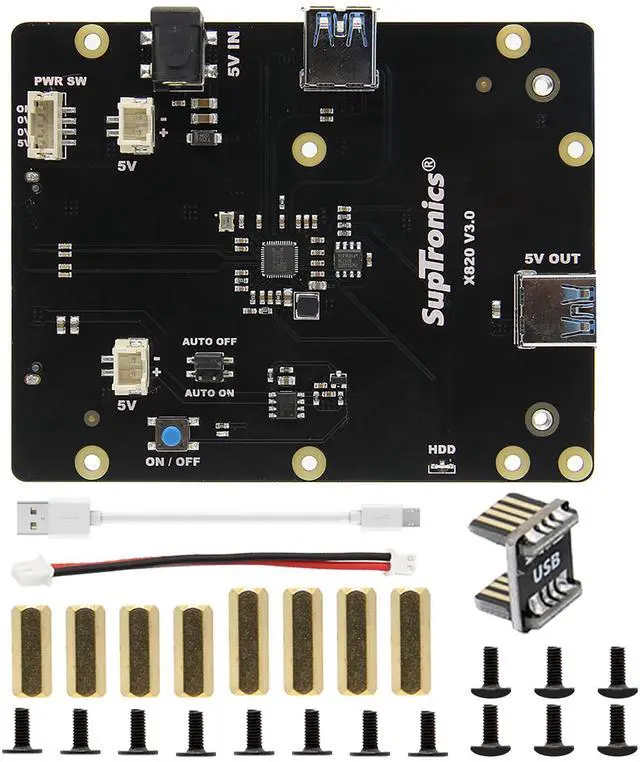

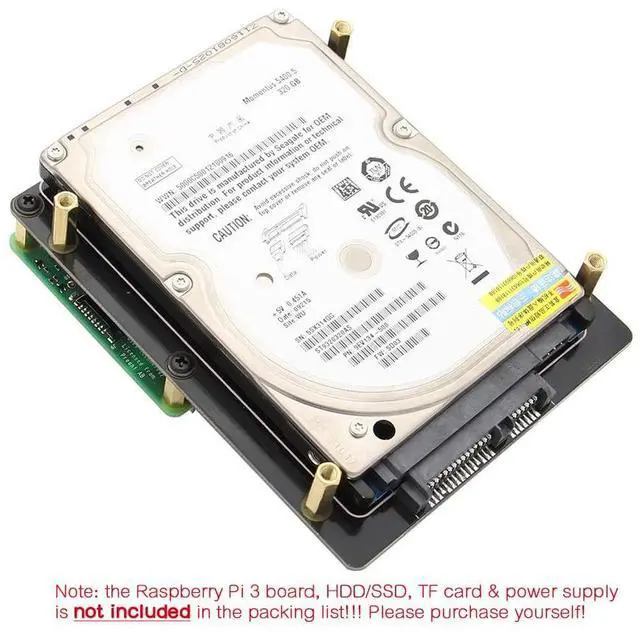

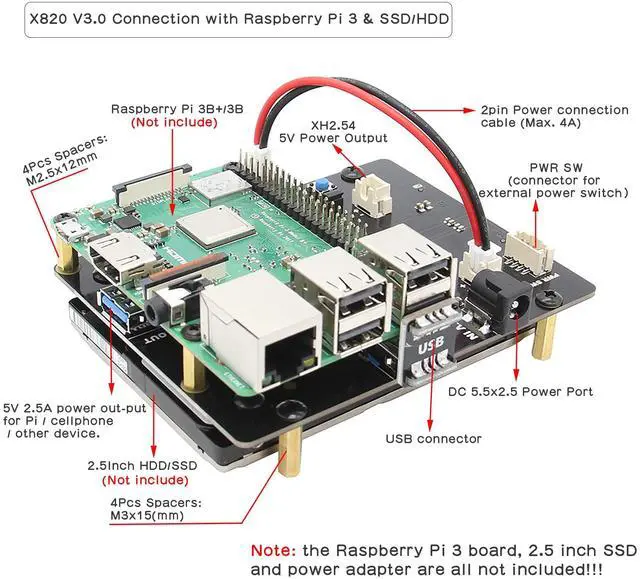

Raspberry Pi SATA X820 V3.0 HDD/SSD USB3.0 shield expansion board provides an complete storage solution for Raspberry Pi 3B+/3B motherboard, Support up to 4TB 2.5 inch SATA interface hard disk drives (HDD) / solid-state drive (SSD). A good raspberry pi sata adapter for Raspberry Pi 3B+, 3B, 2B, B+. Note: For Raspberry Pi 4 Model B 2.5 inch SATA HDD/SSD storage board, please refer to ASIN:B07VXF2HJG; For Raspberry Pi 4 Model B mSATA SSD storage board, please refer to ASIN: B07VXFGFLX
X820 V3.0 supports USB booting from your HDD/SSD('reboot' command is supported), a useful and reliable function to every raspberry pi users or fans. Suggest to use w
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Geekworm X820 V 3.0 2.5 SATA HDD/SSD Storage Expansion Board, USB 3.0 Mobile Hard Disk Module for Raspberry Pi 3 B+/3B& 2.5 Inch SATA HDD/SSD
Learn more about the Detailed Specifications
Additional Information
First Listed on Newegg
October 11, 2025
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
