Geekworm X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board+Active Cooler H505 for Raspberry Pi 5
- Compatibility: Pi 5 PCIe M.2 HAT only compatible with Raspberry Pi 5 SBC (NOT include Raspberry Pi 5), Model: X1001/H505

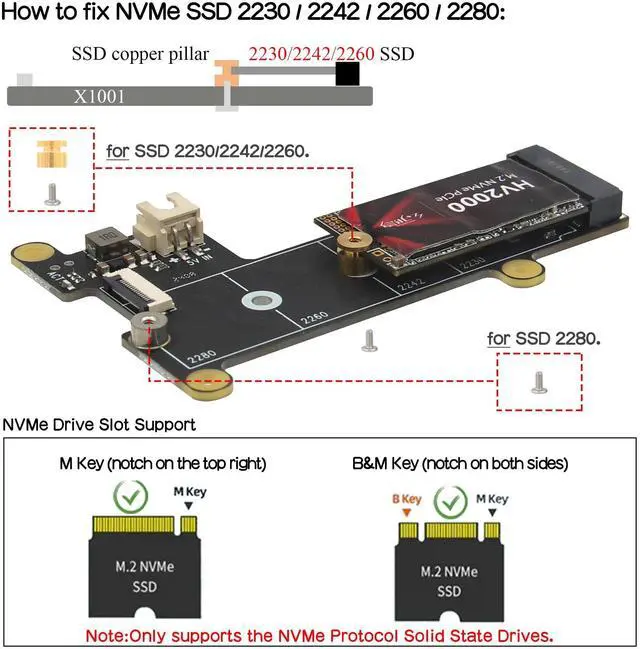

- M2 NVMe Key-M SSD Supported: Support M.2 KEY-M NVMe SSD 2230/2242/2260/2280 length installation. Comes with SSD copper pillar for 2230/2242/2260 SSD installation
- User Manual and FAQ: Google Geekworm Wiki and search X1001 and FAQ. Refer to the FAQ to do troubleshoot step by step if can't boot/recognize from NVMe SSD
- How to Power: Power the X1001 shield directly from the FFC PCIe ribbon; Recommend to use Geekworm PD 27W power adapter

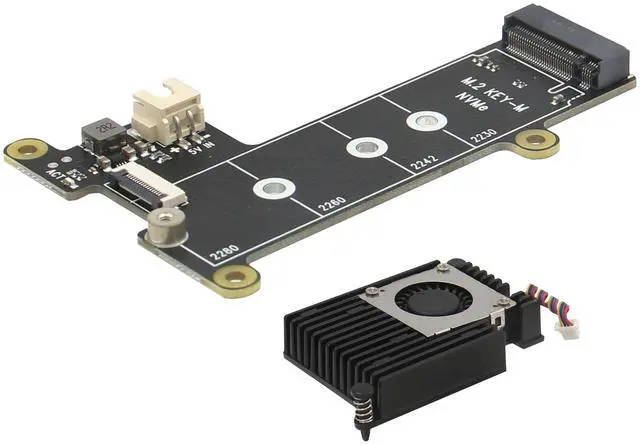

- Packing List: 1 x X1001 PCIe Peripheral Board with Accessories, 1x Active Cooler H505; Note: not include Raspberry Pi 5, SSD, TF card or power adapter
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compatibility: Pi 5 PCIe M. 2 HAT only compatible with Raspberry Pi 5 SBC (NOT include Raspberry Pi 5), Model: X1001/H505 ^^ M2 NVMe Key-M
SSD Supported: Support M. 2 KEY-M NVMe SSD 2230/2242/2260/2280 length installation. Comes with SSD copper pillar for 2230/2242/2260 SSD installation ^^ User
Manual and FAQ: Google Geekworm Wiki and search X1001 and FAQ. Refer to the FAQ to do troubleshoot step by step if can't boot/recognize from NVMe SSD ^^ How to
Power: Power the X1001 shield directly from the FFC PCIe ribbon; Recommend to use Geekworm PD 27W power adapter ^^
Packing List: 1 x X1001 PCIe Peripheral Board with Accessories, 1x Active Cooler H505;
Note: not include Raspberry Pi 5, SSD, TF card or power adapter
SSD Supported: Support M. 2 KEY-M NVMe SSD 2230/2242/2260/2280 length installation. Comes with SSD copper pillar for 2230/2242/2260 SSD installation ^^ User
Manual and FAQ: Google Geekworm Wiki and search X1001 and FAQ. Refer to the FAQ to do troubleshoot step by step if can't boot/recognize from NVMe SSD ^^ How to
Power: Power the X1001 shield directly from the FFC PCIe ribbon; Recommend to use Geekworm PD 27W power adapter ^^
Packing List: 1 x X1001 PCIe Peripheral Board with Accessories, 1x Active Cooler H505;
Note: not include Raspberry Pi 5, SSD, TF card or power adapter
