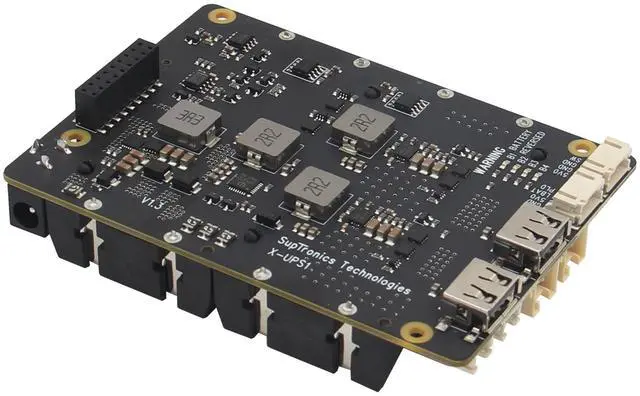

Geekworm X-UPS1 12V/5V Dual Output Universal SBC Stackable Uninterruptible Power Supply UPS Shield with Acrylic Plate Compatible with Raspberry Pi/Orange Pi/Jetson Nano/Rock Pi/Tinker Board

Compatibility: Compatible with most Single Board Computers (SBC) that uses 12Vdc or 5Vdc, such as Orange Pi 5/5B/4B, Raspberry Pi 5/4B/3B+/3B, Jetson Nano, Jetson Orin Nano, Jetson AGX Orin, Tinker Board, Rock Pi, Arduino etc ^^
Stackable Design: X-UPS1 can be stacked to increase output current and battery life, each board provides max 3A power backup; Stack several X-UPS1 to provide long-lasting and higher output power for 24/7 ^^

Specifications

: Power
input (Single board): 6-18Vdc 5%, 3A;
UPS output voltage: 12Vdc 5%, 5.1V dc 5%
UPS output current (Single boards): Max 3A;
UPS charging current (Single board): 2.3 ~ 3.2A ^^

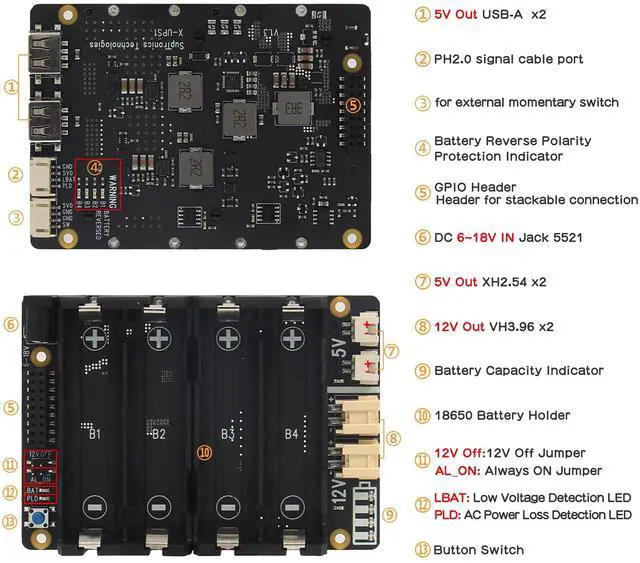

Multi Function: Wide power input 6-18V; AC power loss or power adapter failure detection; Low voltage detection; Auto power on; Protection of battery cell reverse connection ^^
Packing List: 1 x X-UPS1 Expansion Board (not include battery); 1 x 4Pin PH 2.0 to dupont cable; 1 x VH 3.96 to DC5525 Cable; 1 x XH 2.54 to DC5521 Cable; 1 x GPIO Header; 1 x Screws Pack ^^

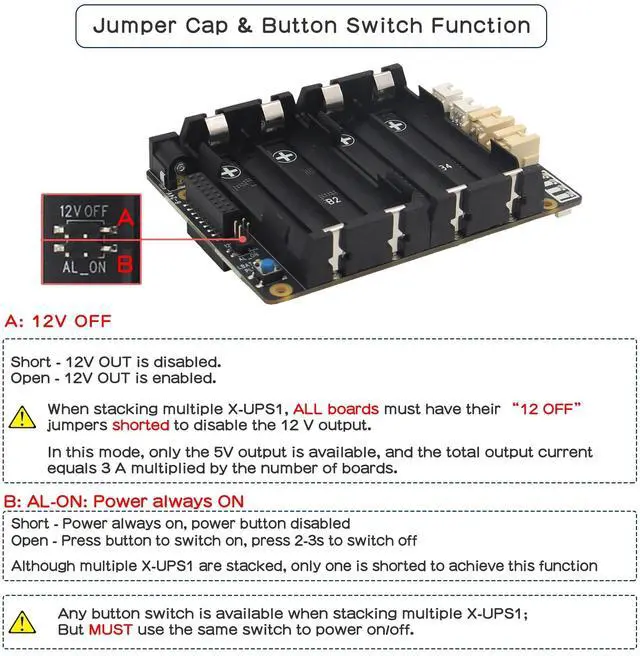

Power Output Note: 5V and 12V cannot be used together. When stacking X-UPS1 boards, ALL boards must have their 12 OFF jumpers shorted to disable the 12V output. In this mode, only 5V output is available, total current = 3A number of boards.
