$237.99
Meet Your Seller

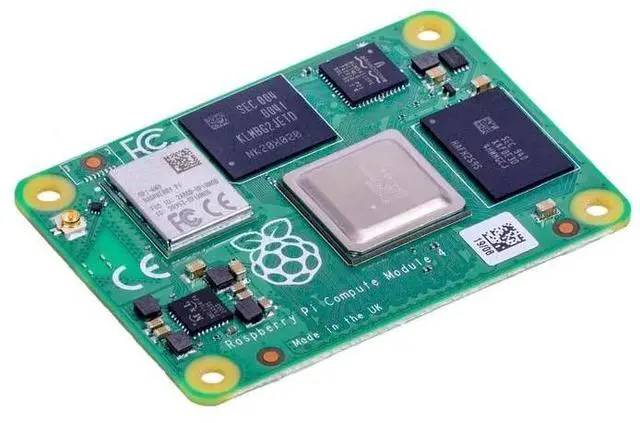

Raspberry Pi Compute Module 4 with CM4 heatsink PWM Fan, CM4 8GB RAM 32GB eMMC Single Board 64-Bit Quad-Core Processor Bluetooth 5.0 Dual-Band WiFi (CM4108032)
- The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces.
- Raspberry Pi Compute Module 4 8GB RAM 32GB eMMC CM4108032 comes with Gigabit Ethernet, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE, with onboard and external antenna options.
- H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode),Energy-efficient Raspberry Pi runs silently and uses far less power than other computers.
- Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz,more powerful than earlier models.

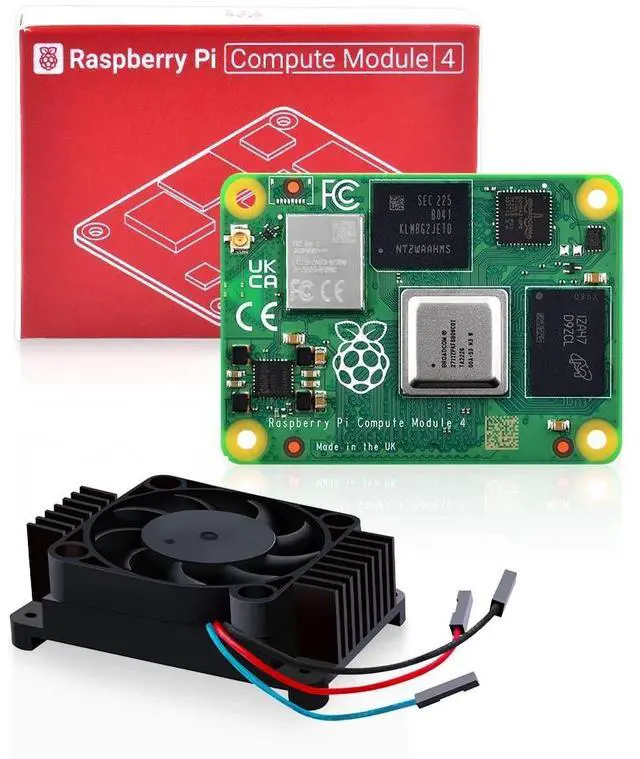

- Package Includes: 1x Raspberry Pi Compute Module 4 CM4108032 8GB RAM with 32GB eMMC Single Board,1x Aluminum Alloy CNC Heat Sink with PWM Fan for Raspberry Pi CM4 Module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description: The power of the Raspberry Pi 4 in a compact form factor for deeply embedded applications! The Raspberry Pi Compute Module 4 (CM4) harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products. Key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, up to 8GB of RAM, Gigabit Ethernet, USB 2.0, dual camera interfaces and PCIe Gen 2 x1 interface.

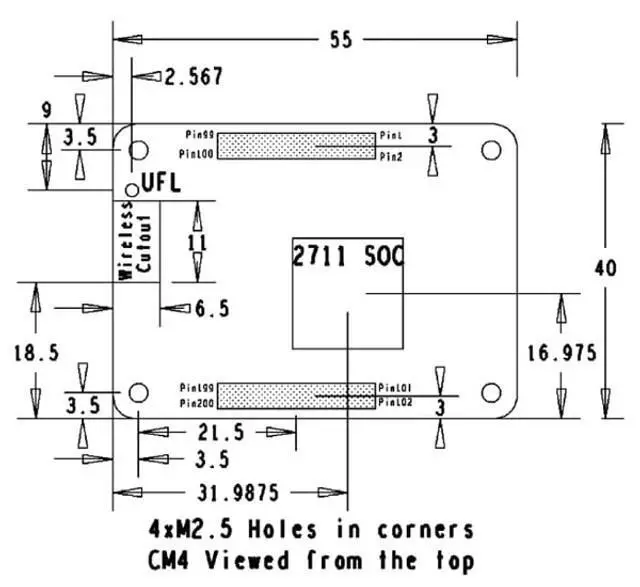

Specification: Form
factor:
55mm40mmProcessor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit
SoC @ 1.5GH zMemory: 8GB
LPDDR4EMMC:
32GBConnectivity: 2.4GH z and 5.0GH z IEEE 802.11 b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options Onboard Gigabit Ethernet PHY supporting IEEE1588 1 USB 2.0 interfacePCIe Gen 2 x1 interface 28
GPIO signalsVideo: Dual HDMI interface (up to 4Kp60 supported) 2-lane MIPI DSI display interface 2-lane MIPI CSI camera interface 4-lane MIPI DSI display interface 4-lane
MIPI CSI camera interfaceMultimedia: H. 265 (4Kp60 decode); H. 264 (1080p60 decode, 1080p30 encode);
OpenGL ES 3.0 graphicscInput power: 5V
DCOperating temperature: -20C
to +85CCompliance: For a full list of local and regional product approvals, please
visit: raspberrypi. org/documentation/hardware/raspberrypi/conformity. md
Specification: Form
factor:
55mm40mmProcessor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit
SoC @ 1.5GH zMemory: 8GB
LPDDR4EMMC:
32GBConnectivity: 2.4GH z and 5.0GH z IEEE 802.11 b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options Onboard Gigabit Ethernet PHY supporting IEEE1588 1 USB 2.0 interfacePCIe Gen 2 x1 interface 28
GPIO signalsVideo: Dual HDMI interface (up to 4Kp60 supported) 2-lane MIPI DSI display interface 2-lane MIPI CSI camera interface 4-lane MIPI DSI display interface 4-lane
MIPI CSI camera interfaceMultimedia: H. 265 (4Kp60 decode); H. 264 (1080p60 decode, 1080p30 encode);
OpenGL ES 3.0 graphicscInput power: 5V
DCOperating temperature: -20C
to +85CCompliance: For a full list of local and regional product approvals, please
visit: raspberrypi. org/documentation/hardware/raspberrypi/conformity. md
