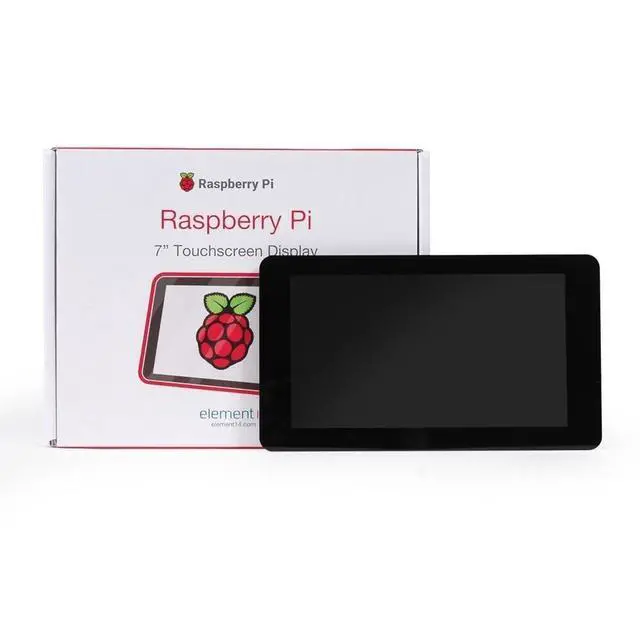

Raspberry Pi 7" Touch Screen Display
- This 7" Touchscreen display for the Raspberry Pi is perfect for creating portable and embedded projects where a keyboard and Mouse would be in the way.
- The full color display outputs up to 800 x 480 and features a capacitive touch sensing capable of detecting 10 fingers.

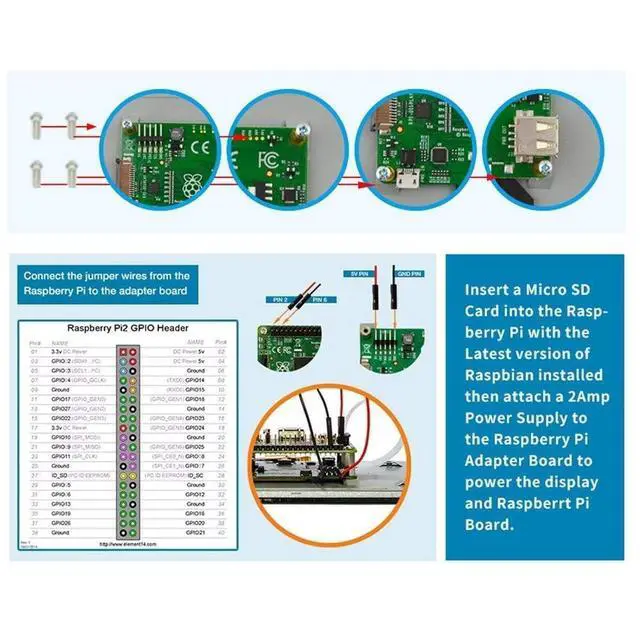

- Only two connections from the Pi TO the Display are necessary; power from GPIO (or USB) connection to the DSI port. The adapter board handles power, Signal conversion, and touch input conversion.

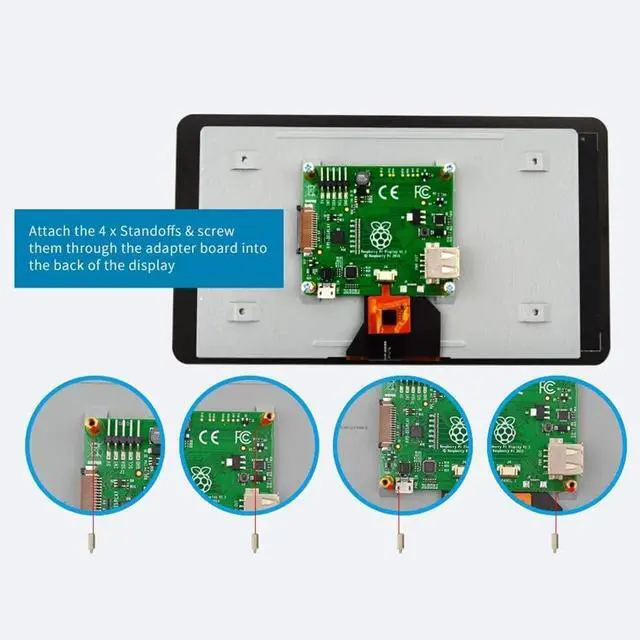

- Kit contents: 7" Touchscreen display adapter board DSI ribbon cable 4 x stand-offs and screws 4 x jumper wires
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Kit contents: 7 Touchscreen display adapter board dsi ribbon cable 4 x stand-offs and screws 4 x jumper wires technical
Screen Dimensions: 194mm x 110mm x 20mm (including standoffs) viewable screen size: 155mm x 86mm Screen resolution 800 x 480 pixels 10 finger capacitive touch Connects to the Raspberry Pi board Using a ribbon cable connected to the dsi port. Adapter board is used to power the display and convert the parallel signals from the display to the serial (dsi) port on the Raspberry Pi. Latest version of Raspbian OS required to operate correctly.
Note: The display works with all existing Raspberry Pi models, however the mounting holes only Line up with the newer board design of the a+, b+ and Pi 2.
Specifications
7 Touchscreen display.Screen Dimensions: 194mm x 110mm x 20mm (including standoffs) viewable screen size: 155mm x 86mm Screen resolution 800 x 480 pixels 10 finger capacitive touch Connects to the Raspberry Pi board Using a ribbon cable connected to the dsi port. Adapter board is used to power the display and convert the parallel signals from the display to the serial (dsi) port on the Raspberry Pi. Latest version of Raspbian OS required to operate correctly.
Note: The display works with all existing Raspberry Pi models, however the mounting holes only Line up with the newer board design of the a+, b+ and Pi 2.
