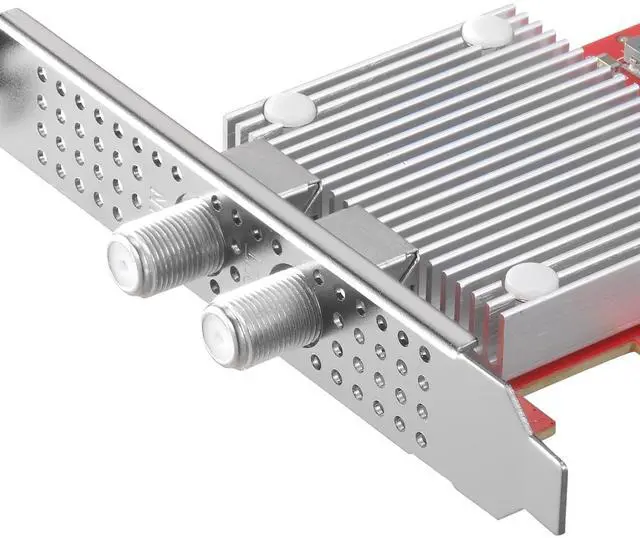

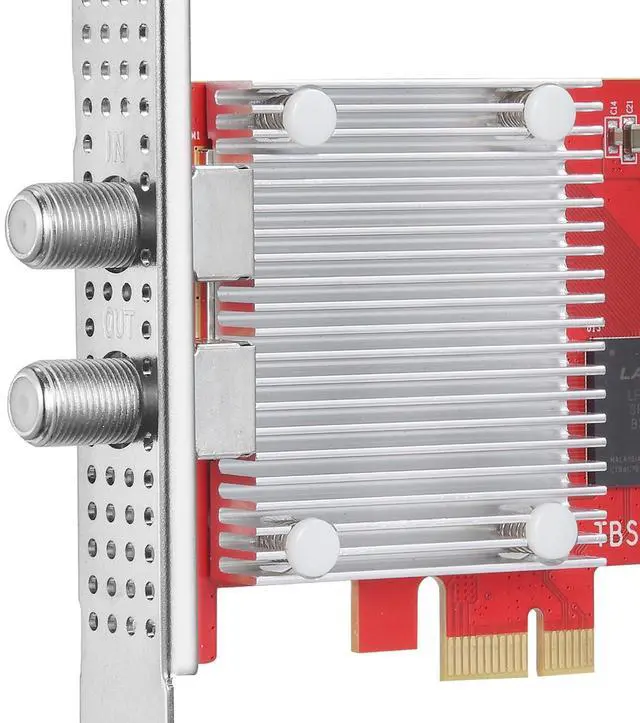

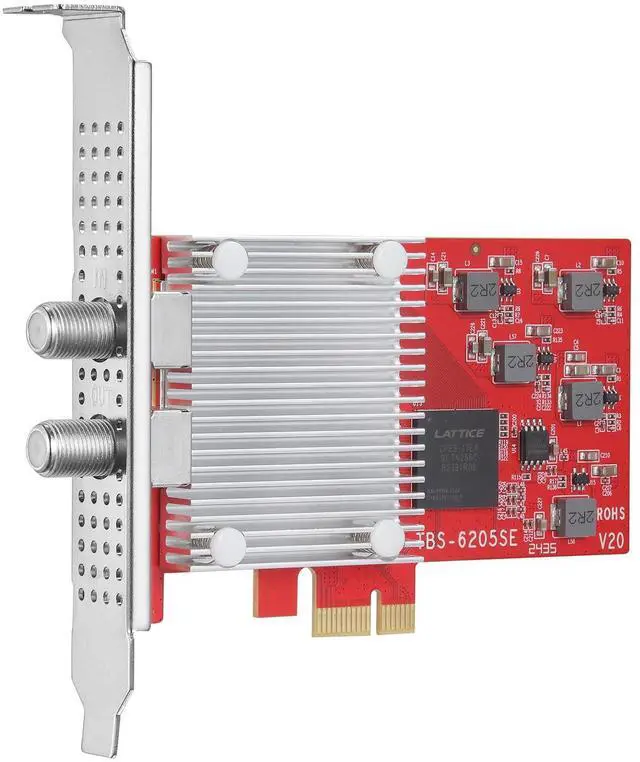

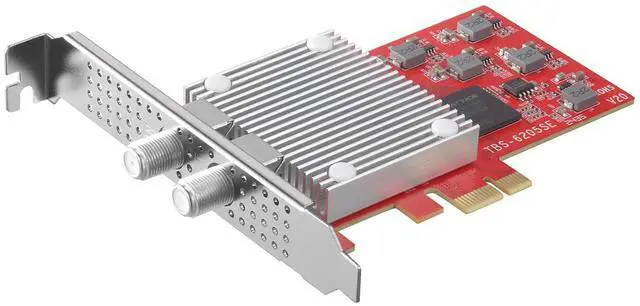

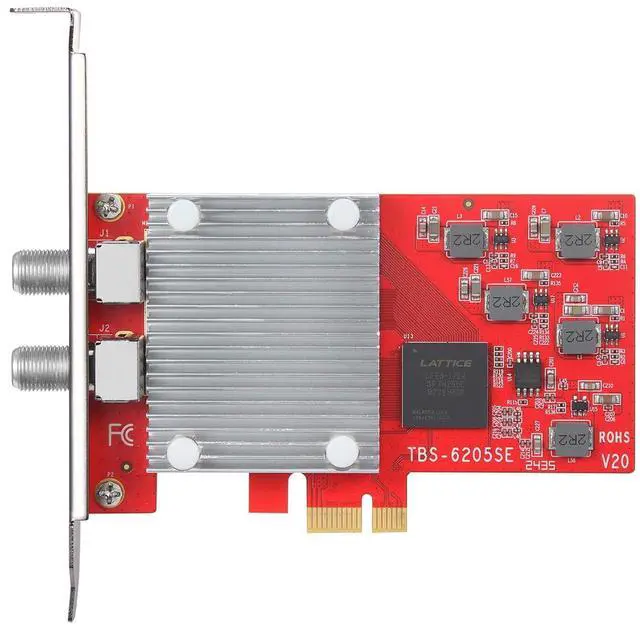

TBS 6205se DVB-T2 / C2 / T/C(J.83A/B/C) / ISDB-T/C / ATSC1.0 Quad PCIe Digital TV Tuner Card for PC

DVB-T2 and
T2-Lite:
Receiving channel: VHF band and UHF band
Channel bandwidth: 6, 7, 8 MHz
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals
16, 32, 64, 128 and 256QAM modulations
Code rate: 1/2, 3/5, 3/4, 4/5, and 5/6

DVB-T:
6, 7 and 8MHz channel bandwidths
2 and 8K FFT
QPSK, 16 and 64QAM
1/2, 2/3, 3/4, 5/6 and 7/8 code rates

DVB-C2:
6 and 8MHz channel bandwidths
1/64 and 1/128 guard intervals
16, 64, 256, 1024, 4096 QAM
2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates

DVB-C:
1.7 to 7.2 Msym/s
16, 32, 64, 128 and 256QAM
0.15 roll-off factor

ISDB-T:
6, 7 and 8MHz bandwidth
2, 4 and 8K FFT
1/32, 1/16, 1/8 and 1/4 guard intervals
QPSK, 16QAM and 64QAM

ISDB-C:
5.274 Msym/s
0.13 roll-off factor
64 and 256QAM
TSMF (Transport Streams Multiplexing Frame) AM

J. 83B (ITU-T J. 83 v 3.0
Annex B):
5.056941, 5.360537, 5.6 Msym/s
0.18 and 0.12 roll-off factor
64 and 256QAM

ATSC 1.0:
6MHz channel bandwidths
8VSB modulation
2/3 code rate

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal DVB-T2/C2/T/C(J. 83A/B/C), ISDB-T/C, ATSC 1.0.

Package Contents:
1x TBS6205se
1x DC line
1x F connector
