Ferwooh Nextion Basic Display 2.8'' NX3224T028 2.8inch TFT Resistive Touch Screen Panel 320X240 UART HMI LCD Display Module

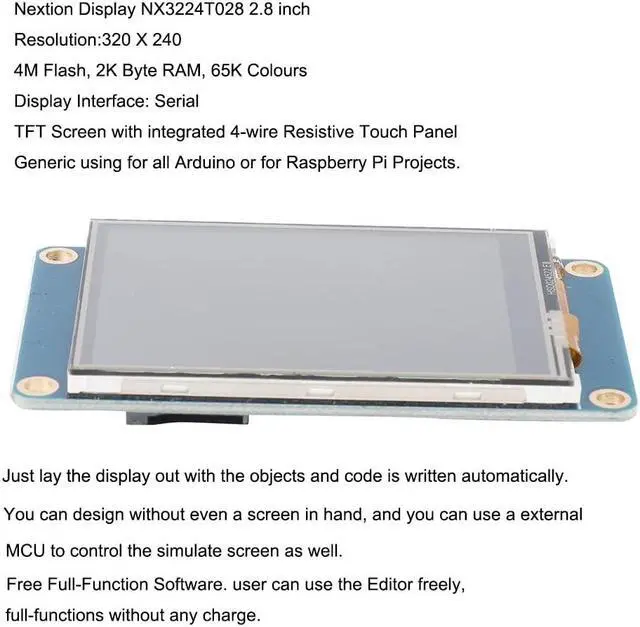

- NX3224T028 is a powerful 2.8'' HMI, TFT 320x240 resistive touch screen display, 4M Flash, 3584 RAM, 65k colors.It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART. Uploading TFT file via sd card is faster than 4pin serial port, but pls check card is FAT32 format and no more than 32GB. With the Nextion Editor software, you can easily create an intuitive touch user interface even if you are a beginner.
- Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
- This solution includes hardware part - a series of TFT boards and software part - Nextion editor. Nextion TFT board uses only one serial port to do communicating. Let you get rid of the wiring trouble. We notice that mo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

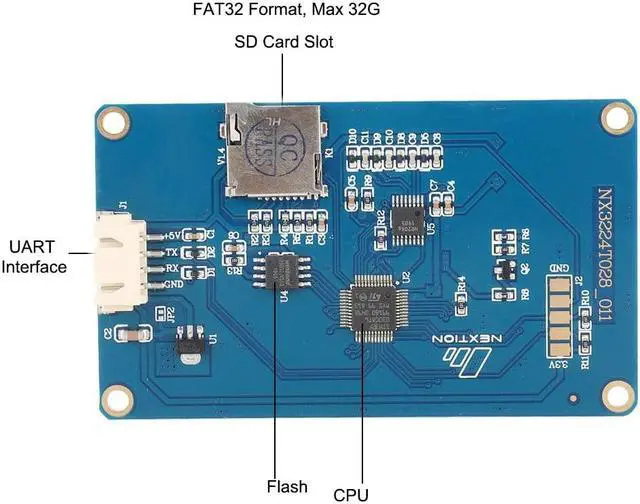

Features: English version 320 x 240 Resolution RGB 65K true to life colours TFT Screen with integrated 4-wire Resistive Touch Panel Easy 4 pin interface to any TTL Serial Host 4M Flash memory for User Application Code and Data On board micro-SD card for firmware upgrade
Visual Area: 57.6 mm (L) X 43.2 mm (W)

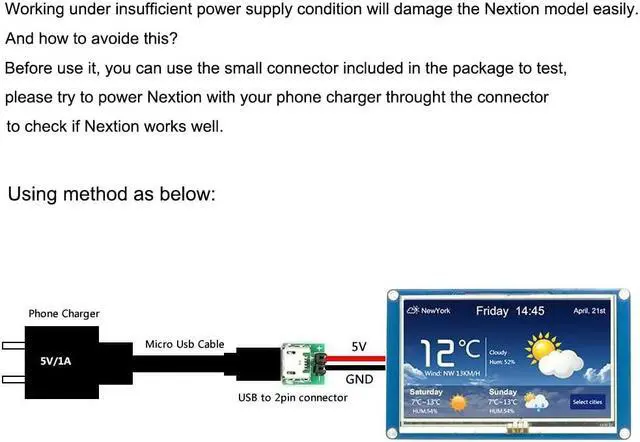

Adjustable Brightness: 0~180 nit, the interval of adjustment is 1% 5V65mA power conusmption
Wide range of applications: 1.

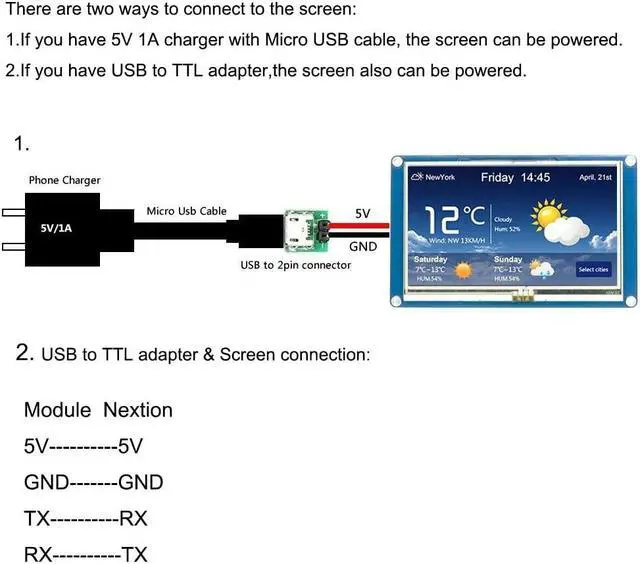

Nextion Display Connection: Nextion display has a built-in ARM microcontroller that controls display, for example it takes care of generating buttons, creating text, store images or change background. Nextion display communicates with any microcontroller using serial at a 9600 baud rate. So, Nextion screen works with any board that has serial capabilities like Raspberry Pi, ESP8266, ESP32 etc. 2. Nextion Display Weather Station Kit Nextion display could be used together with other accessories to assemble DIY kit, for example weather station kit. 3.
Lightweight GSM Mobile Phone Indoruction: With the microcontroller and Nextion HMI display, you can easily make a lightweight phone that is able to make calls, receive calls, send and also receive SMS. It uses a GSM module to connect to the mobile network and Nextion display to visualize GUI interfaces. And to this, you just need to prepare the below
DIY components: 1. miccontroller board 2. GPRS shield 3. nextion display 4.
sim card Data download: More
datasheet:
https: //www. youtube. com/results? search_query=Nextion+HMI
Document link:
https: //m. media-/images/S/aplus-media/sc/8cc247cd-1191-40dc-81a8-37dac27ef949.
pdf Nextion Editor:
https: //www. adrive. com/public/JEVwGg/Nextion%20Editor.

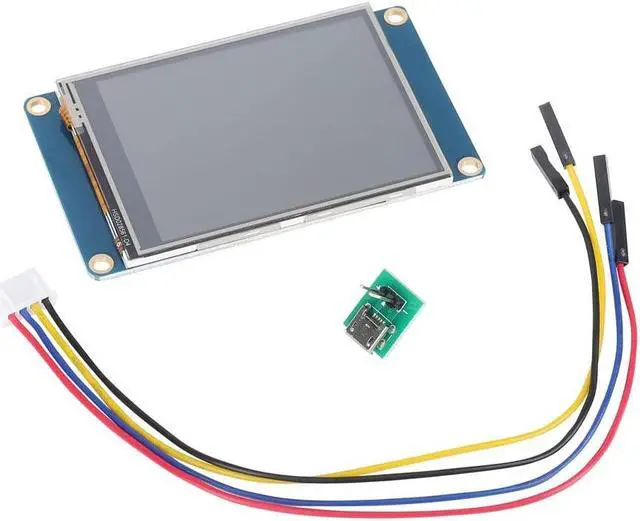

rar Package Included: 1 X 2.8 '' HMI LCD Display Module 1 X 4P Cable 1 X USB to 2pin connector
Visual Area: 57.6 mm (L) X 43.2 mm (W)
Adjustable Brightness: 0~180 nit, the interval of adjustment is 1% 5V65mA power conusmption
Wide range of applications: 1.
Nextion Display Connection: Nextion display has a built-in ARM microcontroller that controls display, for example it takes care of generating buttons, creating text, store images or change background. Nextion display communicates with any microcontroller using serial at a 9600 baud rate. So, Nextion screen works with any board that has serial capabilities like Raspberry Pi, ESP8266, ESP32 etc. 2. Nextion Display Weather Station Kit Nextion display could be used together with other accessories to assemble DIY kit, for example weather station kit. 3.
Lightweight GSM Mobile Phone Indoruction: With the microcontroller and Nextion HMI display, you can easily make a lightweight phone that is able to make calls, receive calls, send and also receive SMS. It uses a GSM module to connect to the mobile network and Nextion display to visualize GUI interfaces. And to this, you just need to prepare the below
DIY components: 1. miccontroller board 2. GPRS shield 3. nextion display 4.
sim card Data download: More
datasheet:
https: //www. youtube. com/results? search_query=Nextion+HMI
Document link:
https: //m. media-/images/S/aplus-media/sc/8cc247cd-1191-40dc-81a8-37dac27ef949.
pdf Nextion Editor:
https: //www. adrive. com/public/JEVwGg/Nextion%20Editor.
rar Package Included: 1 X 2.8 '' HMI LCD Display Module 1 X 4P Cable 1 X USB to 2pin connector
