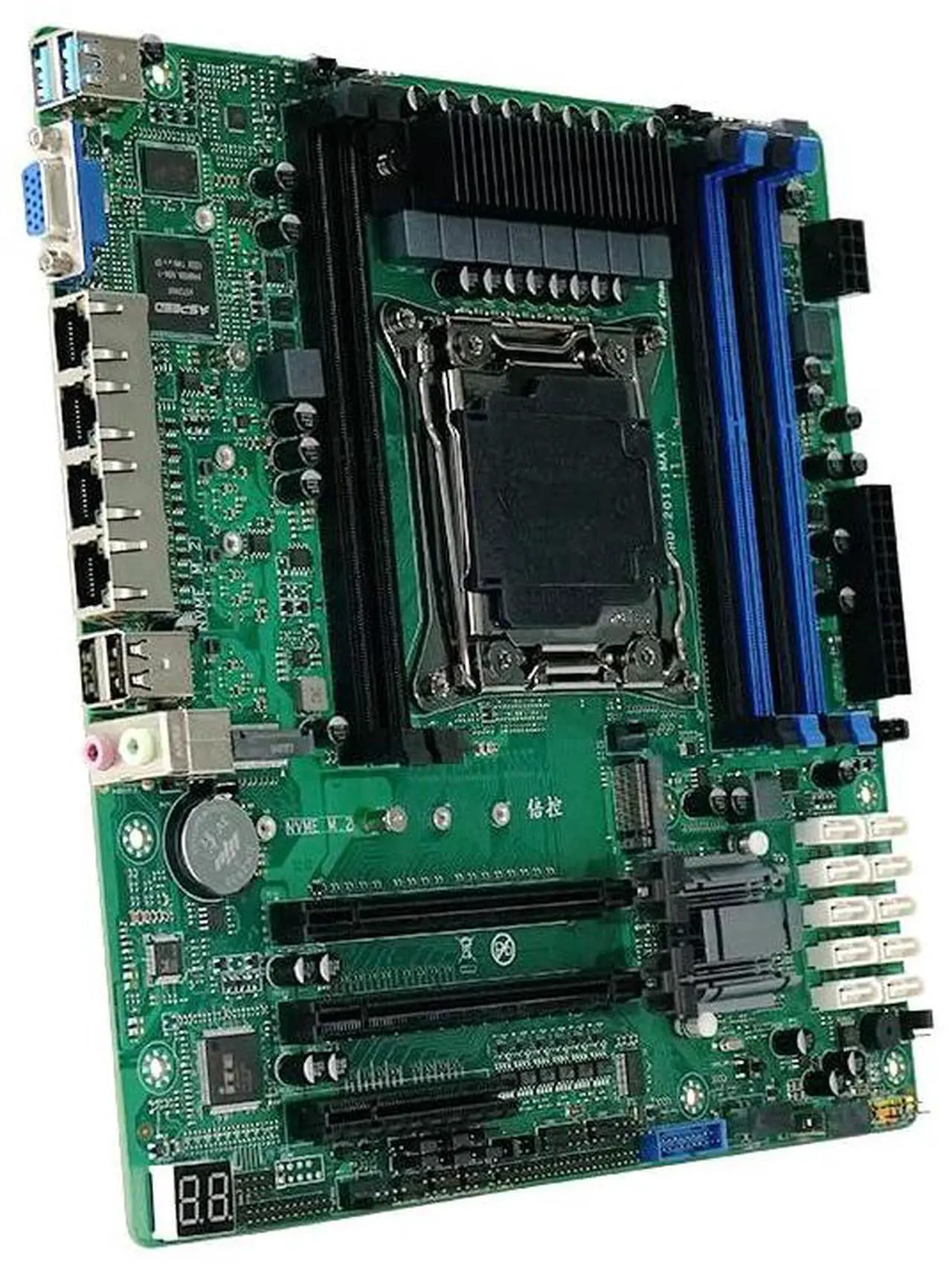

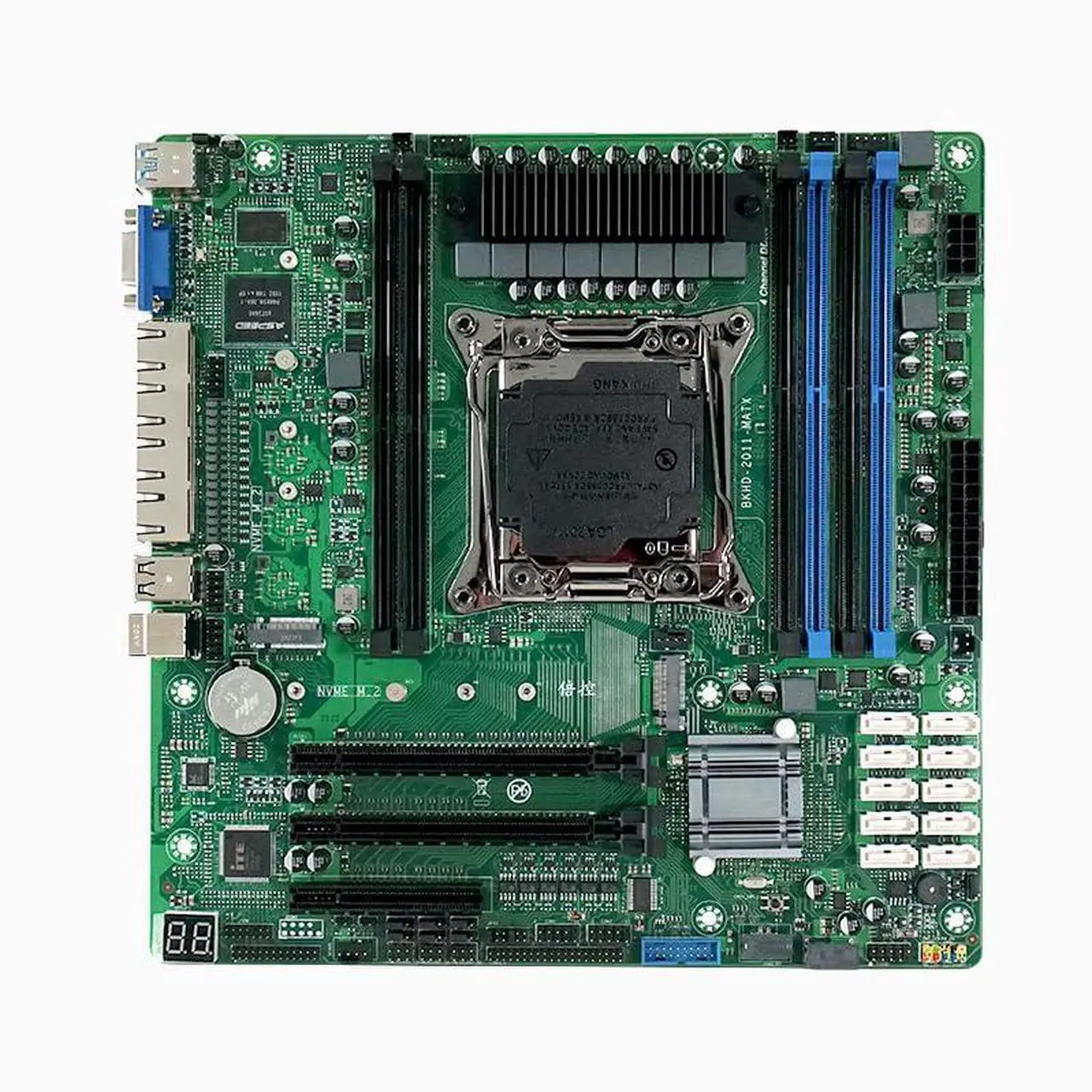

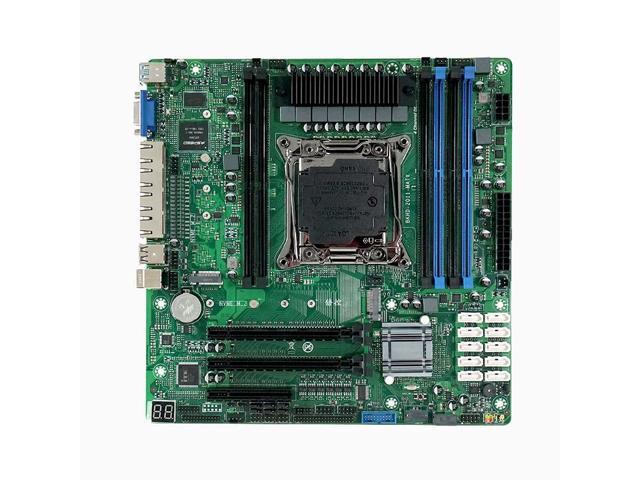

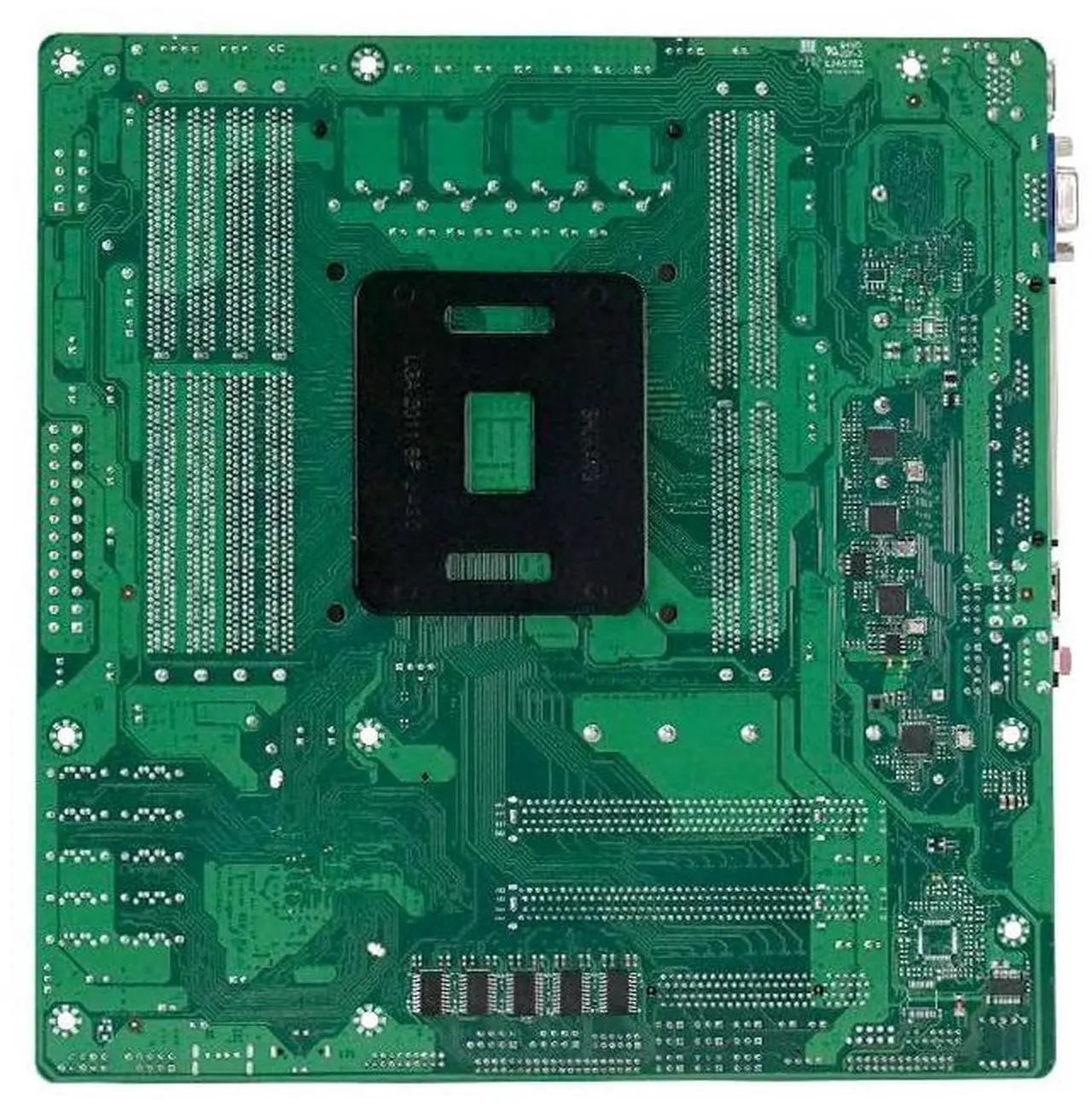

HKUXZR X99 NAS Motherboard Slot 10xSATA 2*M.2_ NVME PCIE X16 x2 LGA2011-3 for NAS Router Sever 4x2.5GbE I226 DDR4 RAM Memory VGA Support Turbo PCIE 24 * 24cm
- Support LGA2011-3 Intel Xeon E5-V3/V4 Intel Core i7 I9 Series processors
- [(High speed network card)] This NAS motherboard has 4* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
- 6*DDR4 DIMM Memory slot, Up to 6*64GB 2400MHz DIMM1/2/6/8 primary; DIMM3/4 secon 2*M.2NVMe(2210/2240/2280);10*SATA6.0Gb/s(SupportHDD/SSD)

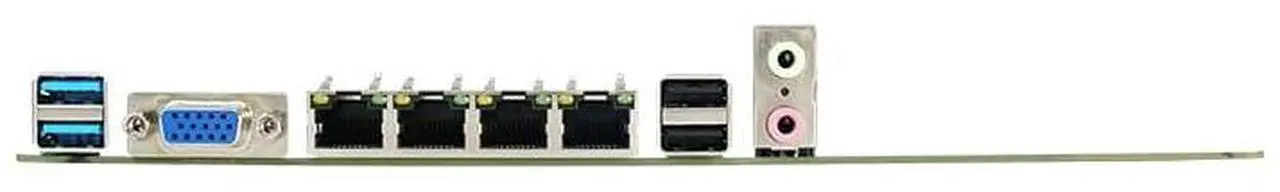

- 2*PCle x16 Gen3; 1*PCle x8 Gen3,1*Set USB2.0 pins;1*Set USB3.0 pins;1*USB2.0 port;1*Type-E port,4*Ethernet port; 2*USB2.0; 2*USB3.0; 1*VGA; 1*Audio,Realtek ALC897 1*VGA port (Onboard display chip)
- NOTE: The motherboard requires both 24PIN + 8PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up
+
+
Overview
Specs
Reviews

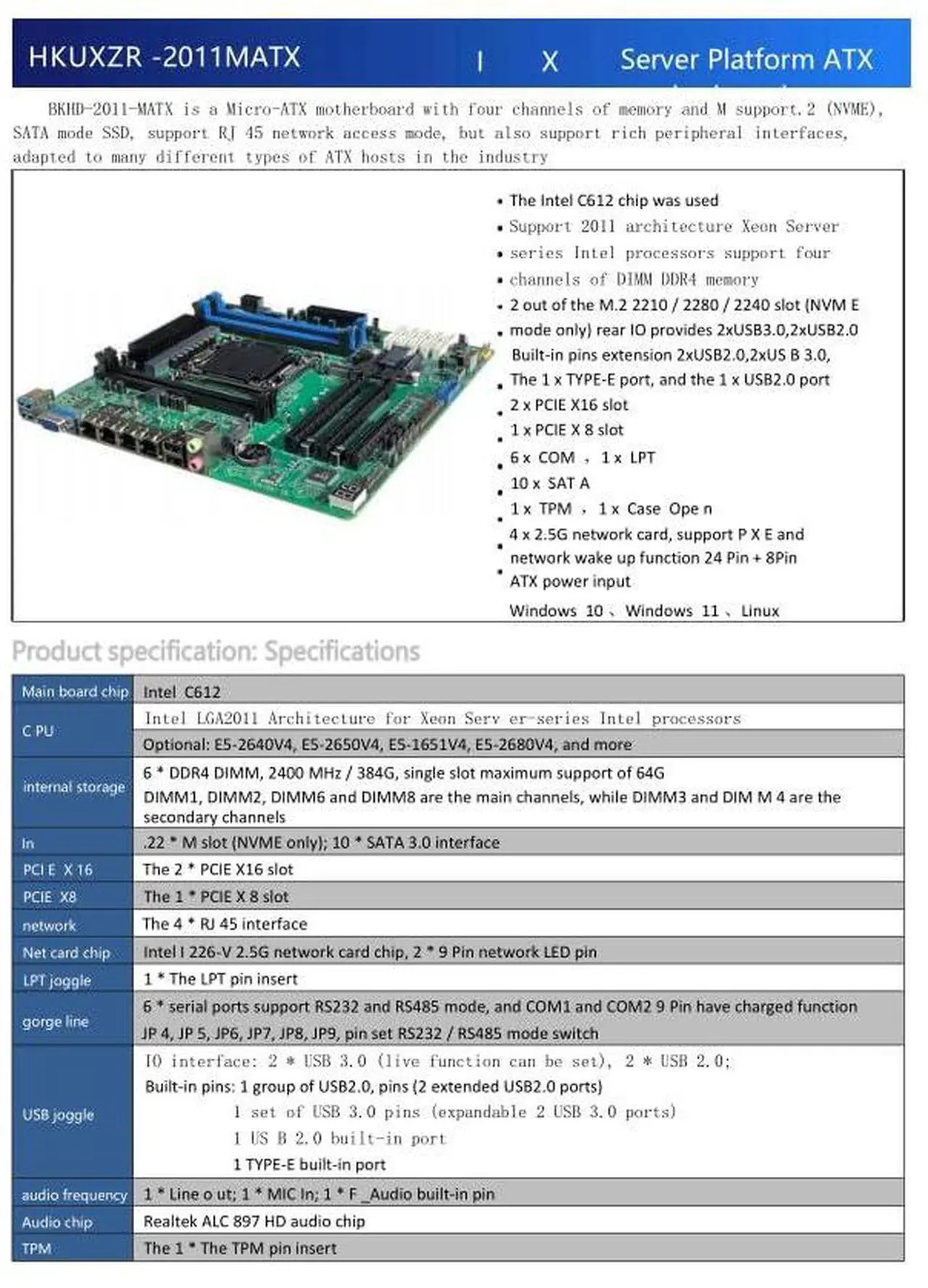

Product Features: The BKHD-2011-mATX motherboard is a high-performance motherboard designed to meet the needs of various application scenarios such as enterprise-level servers, data centres, industrial control, security surveillance, IoT gateways and high-performance computing. Compatible with the LGA2011-3 Xeon server series processors, it delivers powerful computing performance. Equipped with 4 Intel i226 chips, it provides up to 2.5G bps network bandwidth, which is suitable for application scenarios with high data transfer requirements and improves network performance. Supports 6 DDR4 DIMM memory slots, providing higher memory bandwidth and system performance to meet multi-tasking requirements. Offers 2 NVMe interfaces and 10 SATA interfaces, supporting flexible configuration of high-speed SSDs and a wide range of HDDs to meet high-capacity data storage needs. Offers 2 PCIe x16 Gen 3 slots and 1 PCIe x8 Gen 3 slot, supporting high-performance expansion cards such as graphics cards, network accelerators, storage controllers, etc. to enhance the system's expansion and processing capabilities. Offers 1 VGA display output, providing basic video output options, easy system installation and management.
