    HDMI LVDs Controller Board 40pin for 17.3" 14" 1600x900 LP173WD1 N173FGE-L23 B173RW01 LTN173KT01 LTN173KT02 B140RTN02 N140O6 B140RW02 N140FGE-L31 WLED LCD Screen

    Be the first to review this product...
    • [(LCD Controller Board)] Work for 1600x900 WLED 40 Pin LVDs LCD Screen,Video input: HD-MI VGA DVI Audio,Audio Output: Speaker Connector,Pls use in insulated environment.
    • [(Input Power Supply)] 12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare powe adapter by yourself.
    • [(Compatible Screen models )] 14" B140RTN01.0 B140RW01 V.0 N140FGE-L31 LP140WD2 B140RTN02 N140O6 B140RW02 N140FGE-L31 17.3" LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02 LTN173KT02 LTN173KT03-301 CLAA173UA01A
    • [(Compatible parts)] Speaker: 8ohm 2W 4Pin PH2.0 connection; Case:Controller Board Case Acrylic Material White Case For M.NT68676 Protect Case
    • [(Plug and play)] Connecting the cables and ports according to link picture details ,Power on ,enter into HD-MI/VGA/DVI signal ,with correct resolution ,the screen can work well.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

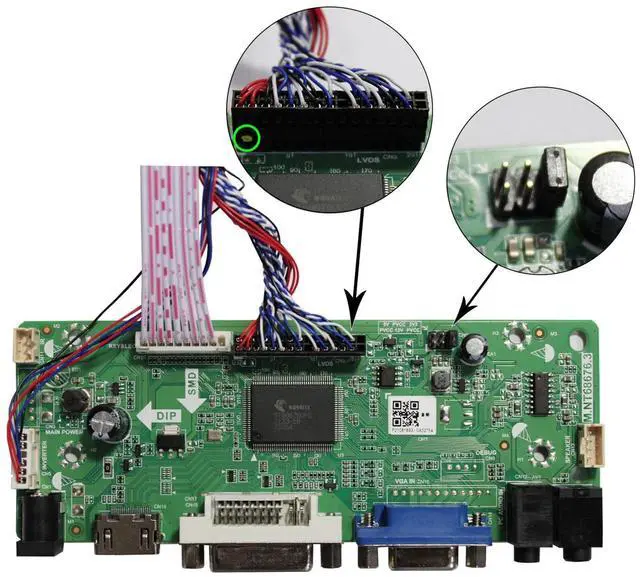

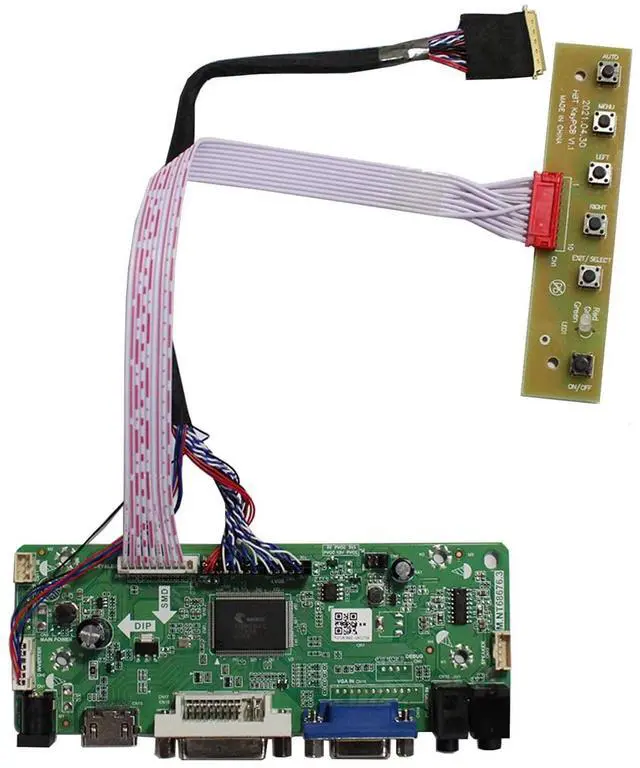

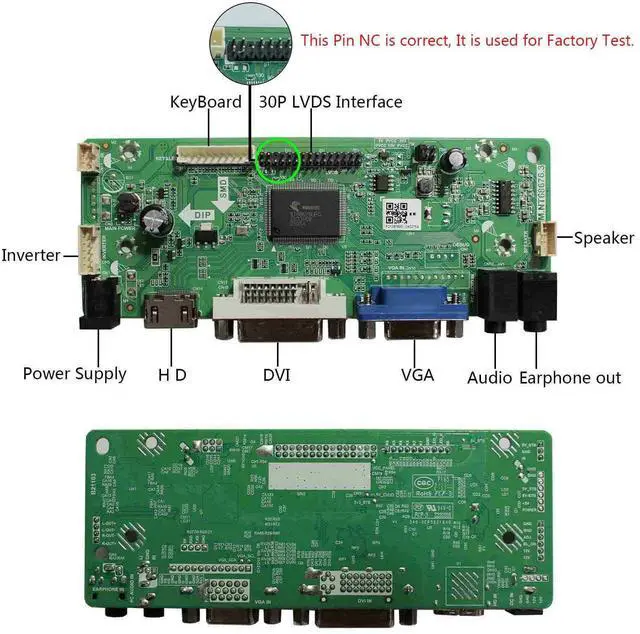

    LCD Controller Board:

    HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HD-MI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 139mm x 53mm x 17mm

    Compatible Work With:
    14inch 1600x900:
    B140RTN 01.0 B140RW01 V. 0 LP140WD2-TL
    B140RTN02 N140O6 B140RW02 N140FGE-L31
    17.3 inch 1600x900:
    LP173WD1 B173RW01 LTN173KT01-A01
    N173FGE-L21 N17306-L02 LTN173KT02 LTN173KT03-301

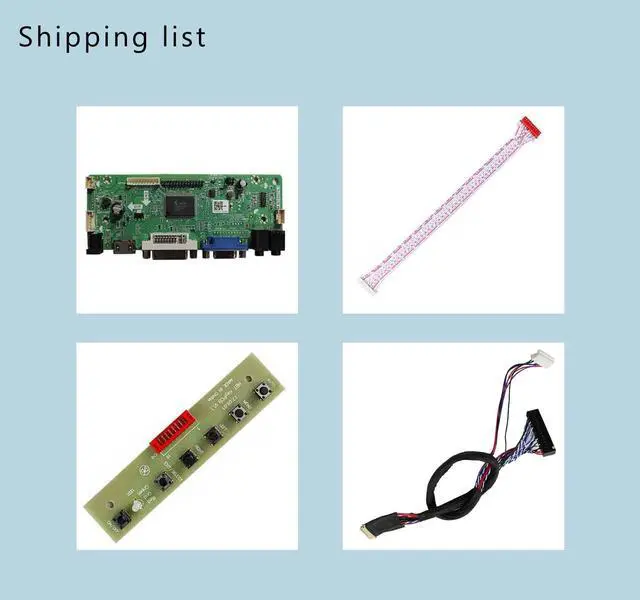

    Packing list:
    1x HD-MI VGA DVI LCD Controller Board M. NT68676
    1x 40Pin Signal Cable
    1x Keyboard With Cable
