KuWFi 6-Port Ethernet Network Switch 2 Port Uplink 802.3AT/AF 72W Cat5 Unmanaged Metal Smart Desktop Network Power Over Ethernet Injector Splitter
- PS-1006B PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable
- KuWFi PoE Injector with 4*10/100mbps POE port, 2*10/100mbps UP-Link port; Each port max. power supply reached 30W. Low heat design, safe and reliable, high stability
- It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm givespower to 802.3af end devices,In addition,the PoE switch automaticallydetermines PoE requirements, speed, duplex, and cable type usingAutoUplink. Easy to operate and reliable
- The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments
- KuWFi Power Over Ethernet Injector. Quality is guaranteed. Lifelong technical support. If you have any questions, p
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

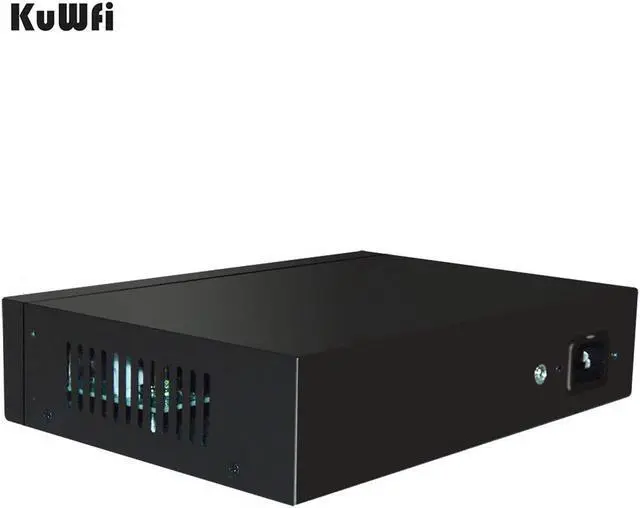

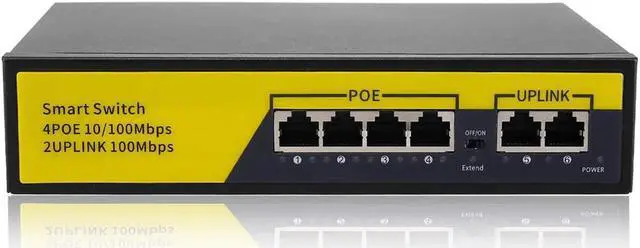

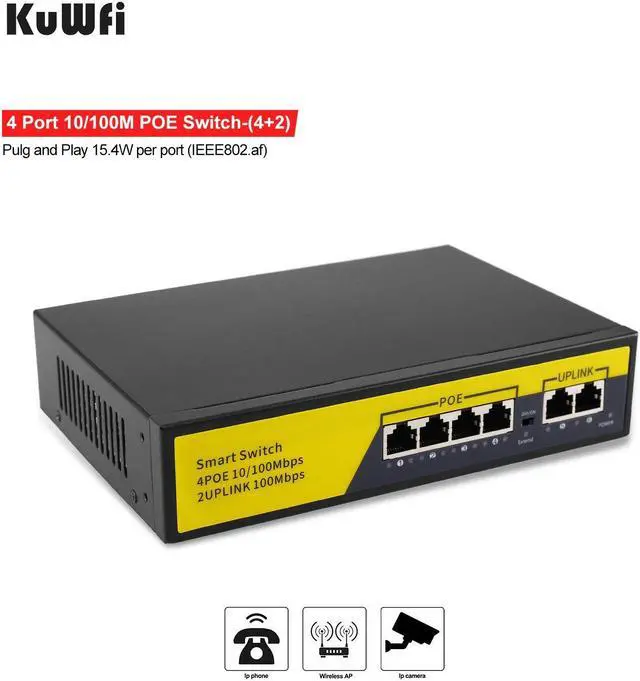

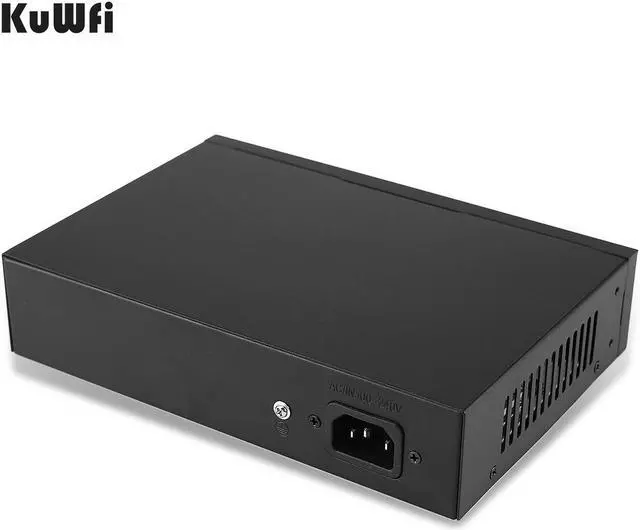

KuWFi 6-Port PoE Switch 72W
*4*10/100mbps POE port, 2*10/100/100mbps UP-Link port
*100m Transmission Distance, 250m after use extend function
*Compatible with IEEE 802.3AF /AT
*Whole Power: 72W(52V 1.3A )
*All port supported by MDI/MDIX auto flip and self negotiation
*Supply 4pcs 10/100Mpbs adaptive high speed forwarding data packetnon-lost port
*Each port max. power supply reached 30W
*Low heat design, safe and reliable, high stability

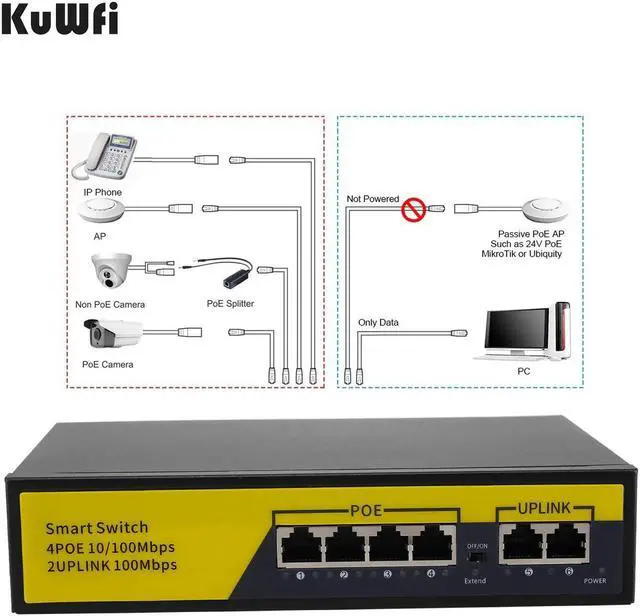

*Application: Wireless Access Point + IP Camera + IP Phone + Computer Networks
POE RJ45 Port: 4*10/100Mbps
Uplink Port: 2*10/100Mbps
DC: 52V/ 1.8A
Bandwidth: 1.2G Power: Per <=30W &Whole<=72W
Data signal port: 1236
Power supply port: 1236(+12 -36)
Distance: 250M
Extend: Yes
Agreement: IEEE 802.3AT /AF
Network Medium: Cat5 (UTP) or more
Network Standards:
IEEE 802.3 i 10BASE-T IEEE 802.3 u 100BASE-TX
IEEE 802.3 x Flow Control IEEE 802.3 af Power over Ethernet
Environment specification
Operating temperature: -10-55(32-104)
Storage temperature: -40-70(14-158)
Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Package List
6 Port 10/100M POE Switch*1
User Guide*1
Warranty Card*1
Power cable*1
*4*10/100mbps POE port, 2*10/100/100mbps UP-Link port
*100m Transmission Distance, 250m after use extend function
*Compatible with IEEE 802.3AF /AT
*Whole Power: 72W(52V 1.3A )
*All port supported by MDI/MDIX auto flip and self negotiation
*Supply 4pcs 10/100Mpbs adaptive high speed forwarding data packetnon-lost port
*Each port max. power supply reached 30W
*Low heat design, safe and reliable, high stability
*Application: Wireless Access Point + IP Camera + IP Phone + Computer Networks
POE RJ45 Port: 4*10/100Mbps
Uplink Port: 2*10/100Mbps
DC: 52V/ 1.8A
Bandwidth: 1.2G Power: Per <=30W &Whole<=72W
Data signal port: 1236
Power supply port: 1236(+12 -36)
Distance: 250M
Extend: Yes
Agreement: IEEE 802.3AT /AF
Network Medium: Cat5 (UTP) or more
Network Standards:
IEEE 802.3 i 10BASE-T IEEE 802.3 u 100BASE-TX
IEEE 802.3 x Flow Control IEEE 802.3 af Power over Ethernet
Environment specification
Operating temperature: -10-55(32-104)
Storage temperature: -40-70(14-158)
Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Package List
6 Port 10/100M POE Switch*1
User Guide*1
Warranty Card*1
Power cable*1
