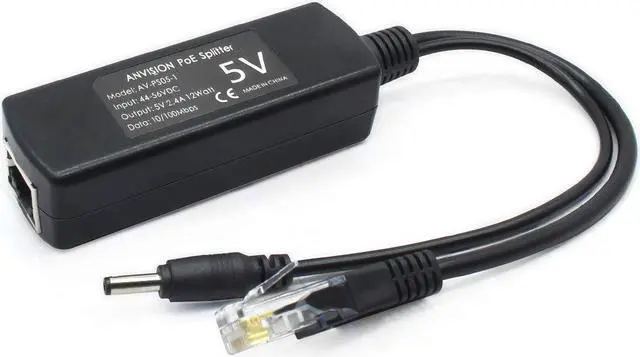

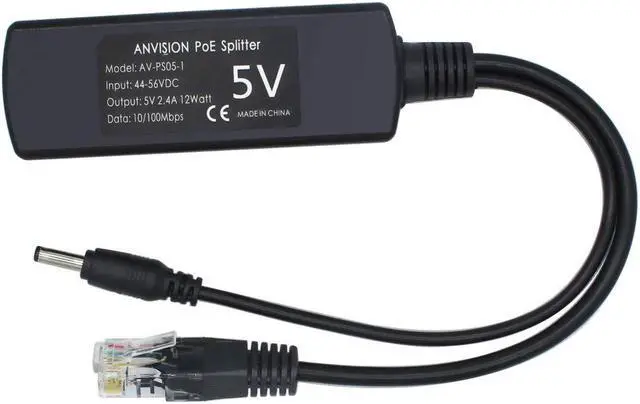

ANVISION 4-Pack 5V PoE Splitter, 48V to 5V 2.4A Adapter, Plug 3.5mm x 1.35mm, 5.5mm x 2.1mm Connector, IEEE 802.3af Compliant, for IP Camera and More
- OUTPUT: 5V DC power out (5V 2.4A 12watts Max., Plug 3.5mm x 1.35mm, 5.5mm x 2.1mm ), 10/100Mbps ethernet data
- INPUT: IEEE 802.3af (DC44-56V) from poe switch or poe injector
- PLUG and PLAY: Require no configuration, a simple solution to expand your network to where you wish to place network devices but has no power outlet
- APPLICATION: works with non-PoE network devices that require a 5V dc input and a ethernet input, such as IP camera and more. please note: this spitter is only compatible with 10/100Mbps non-PoE devices, it DOES NOT support gigabit non-PoE devices
- WARRANTY: 2 years and unlimited technical support, Package content: 4x 5V PoE splitter
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The PoE Splitter splits a PoE signal into an 5VDC power and 10/100Mbps ethernet data source.
This device allows you to run ethernet cables from a PoE Switch over long distance, and then split the PoE signal into a separate data signal and 5Vdc power sources in order to run an non-PoE devices.
Input: 44-56VDC max; Shielded RJ-45 female;
Output: 5VDC 2.4A 12W Max.,
DC Jack:

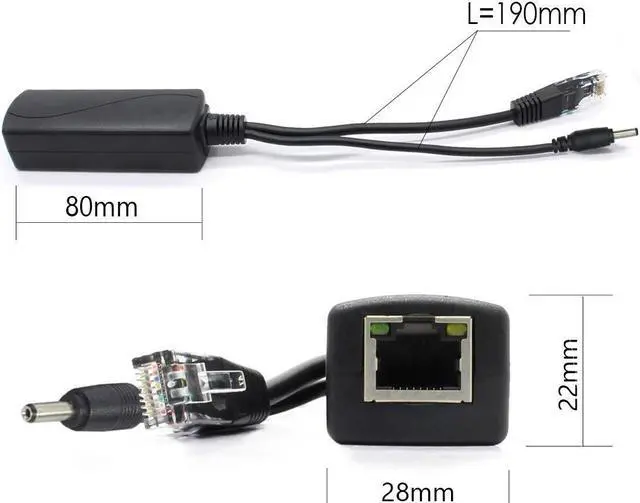

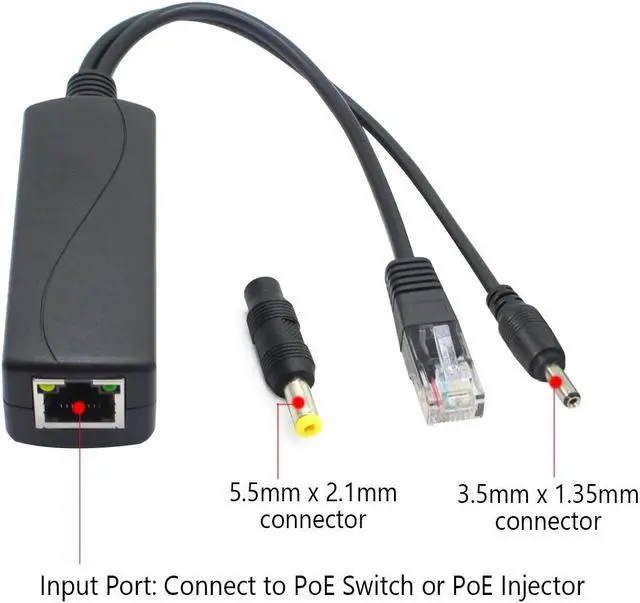

plug: 3.5 mm x 1.35 mm and 5.5 mm x 2.1 mm
Length of output cable: 19.0 cm
Operating Ambient Temperature: -10 to 45
Regulatory IEEE 802.3 af
What is included

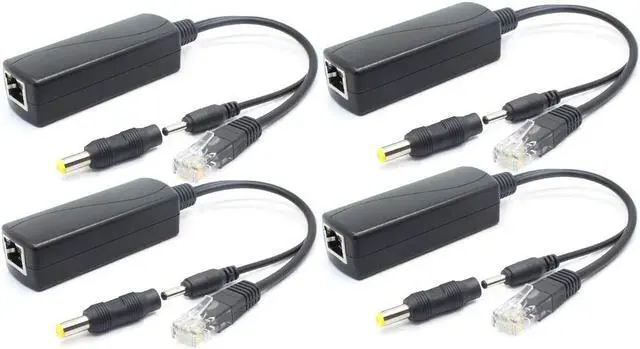

4x 5V PoE splitter
Note: this 5V PoE spitter is only compatible with 10/100Mbps non-PoE devices, it DOES NOT support gigabit non-PoE devices.
This device allows you to run ethernet cables from a PoE Switch over long distance, and then split the PoE signal into a separate data signal and 5Vdc power sources in order to run an non-PoE devices.
Specifications
:Input: 44-56VDC max; Shielded RJ-45 female;
Output: 5VDC 2.4A 12W Max.,
DC Jack:
plug: 3.5 mm x 1.35 mm and 5.5 mm x 2.1 mm
Length of output cable: 19.0 cm
Operating Ambient Temperature: -10 to 45
Regulatory IEEE 802.3 af
What is included
4x 5V PoE splitter
Note: this 5V PoE spitter is only compatible with 10/100Mbps non-PoE devices, it DOES NOT support gigabit non-PoE devices.
