Jadeshay TL631 Pro Motherboard Analyzer Diagnostic Card, PCI Mini PCI-E LPC Motherboard Tester Debug Cards for Laptop Desktop
- Universal Compatibility: TL631 Pro motherboard diagnostic card is universally compatible, seamlessly integrating with all PCI, PCI-E, mini PCI-E, and LPC slots. This extensive support ensures it works with the majority of motherboards, including popular brands like ASÛS, Gîgabyte and MSÎ.
- High Recognition Rate: Equipped with advanced technology, TL631 Pro motherboard diagnostic card boasts a high recognition rate for detecting a variety of motherboard issues. The intelligent power module recognition ensures swift and accurate diagnostics.
- Multi-Indicator Display: The diagnostic card features multi-channel LED indicators that provide real-time status monitoring of critical components, such as the power supply, motherboard, CPU, memory, graphics card and hard disk, facilitating a comprehensive system check.
- Simplified User Experience: Designed with user-friendliness in mind, motherboard diagnostic card is easy to handle and operate. Its straightforward diagnostic proce
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The diagnostic card has the following settings:

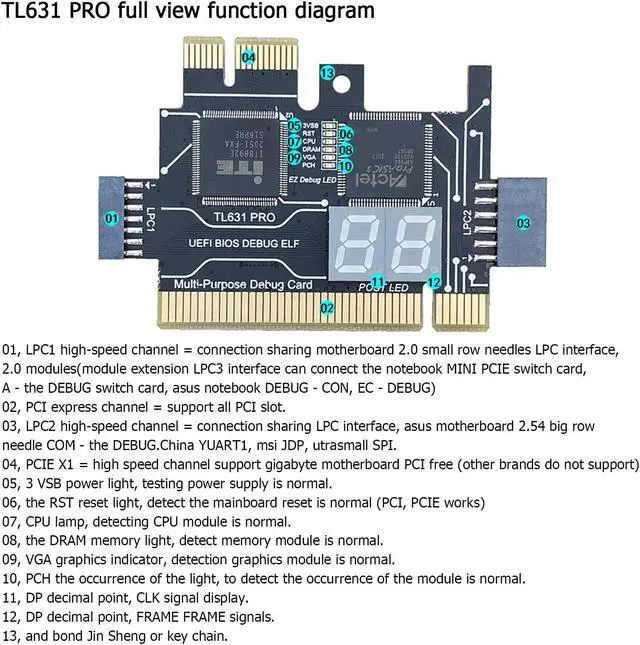

1. LPC1 shared high-speed channel = connection to the motherboard 2.0 small pin header + notebook MINI PCIE.
2. PCI high-speed channel = support all PCI slots.
3. LPC2 sharing high-speed channel = connecting to the main board with 2.54 large pin headers + ultra-micro SPI.
4. PCIEX1 high-speed channel = can test for Gigabyte motherboards without PCI.
5. LPC3 shared high-speed channel = connect notebook MINI PCIE, A-DEBUG conversion card, for ASUS DEBUG-CON, EC-DEBUG.
6. 3VSB power indicator, check whether the power supply is normal.
7. MOBO motherboard indicator, check whether the motherboard is normal.
8. CPU indicator light to check whether the CPU module is normal.
9. DRAM memory indicator, check whether the memory module is normal.
10. VGA graphics card indicator, check whether the graphics card module is normal.
11. PCH south bridge indicator, check whether the south bridge module is normal.
12. Portable round hole design, can be tied with gold rope or keychain.
13. DP decimal point, CLK signal display.
Instructions for use:
The non-positioning socket of the conversion card is inserted into the non-positioning plug, and the positioning socket is inserted into the positioning plug. If it is inserted incorrectly, the interface will be broken and damaged.
Color: Black
Interface: PCI-E, LPC
Supported brands: for ASUS/Gigabyte/MSI/ASRock, etc.
Size: 78* 51.8 mm/ 3.07 * 2.04"
Weight: about 27g
Notes:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.
Packing List:
Diagnostic Card*1
1. LPC1 shared high-speed channel = connection to the motherboard 2.0 small pin header + notebook MINI PCIE.
2. PCI high-speed channel = support all PCI slots.
3. LPC2 sharing high-speed channel = connecting to the main board with 2.54 large pin headers + ultra-micro SPI.
4. PCIEX1 high-speed channel = can test for Gigabyte motherboards without PCI.
5. LPC3 shared high-speed channel = connect notebook MINI PCIE, A-DEBUG conversion card, for ASUS DEBUG-CON, EC-DEBUG.
6. 3VSB power indicator, check whether the power supply is normal.
7. MOBO motherboard indicator, check whether the motherboard is normal.
8. CPU indicator light to check whether the CPU module is normal.
9. DRAM memory indicator, check whether the memory module is normal.
10. VGA graphics card indicator, check whether the graphics card module is normal.
11. PCH south bridge indicator, check whether the south bridge module is normal.
12. Portable round hole design, can be tied with gold rope or keychain.
13. DP decimal point, CLK signal display.
Instructions for use:
The non-positioning socket of the conversion card is inserted into the non-positioning plug, and the positioning socket is inserted into the positioning plug. If it is inserted incorrectly, the interface will be broken and damaged.
Specifications
:Color: Black
Interface: PCI-E, LPC
Supported brands: for ASUS/Gigabyte/MSI/ASRock, etc.
Size: 78* 51.8 mm/ 3.07 * 2.04"
Weight: about 27g
Notes:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.
Packing List:
Diagnostic Card*1
