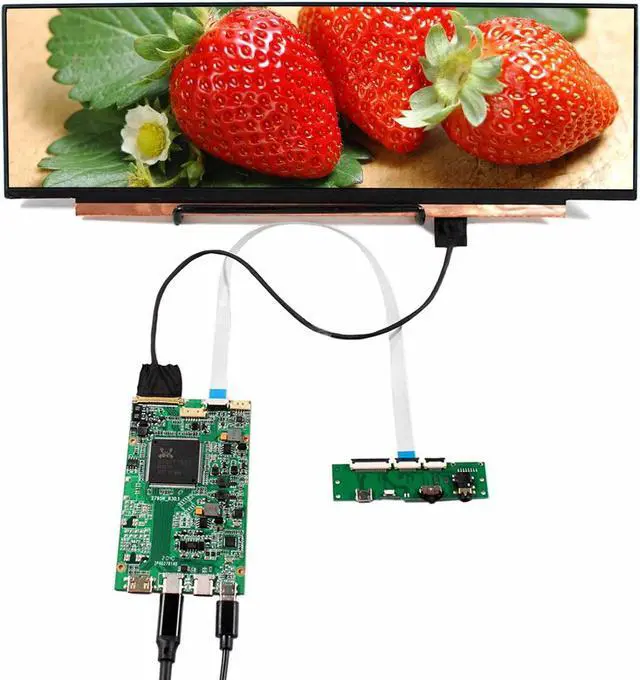

VSDISPLAY 14 Inch NV140XTM-N52 IPS LCD Screen 3840x1100 14'' Display Panel with Type C LCD Controller Board VS-RT2795T4K-V5
- Specifications:14 Inch NV140XTM-N52 3840X1100 IPS LCD screen EDP interface with type c LCD controller board,R support
- Feature:The bezel is thin and lightweight, display, max 3840x2160 60Hz support CP2.2
- Application:Widely usage,DIY compenents,can be used for computer case,panel replacement,game cabinet display screen or DJ setup,you can according to your needs to DIY
- Service:All the products are tested before package and shipment,if any question,please feel free to contact us
- Packing list:1× Type C LCD Controller;1× 14 inch NV140XTM-N52 3840X1100 IPS LCD Screen;1× Signal Cable;1× Keyboard With Cable(Please notice that there is no power supply in the packing list)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board:
Type C Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen
Input Power Adapter: PD 5V dc Type C 18W
Come In Standby Model When Not Input Signal
Standby Model <1.2W
R: Support
Video Input
( max 3840x2160 60Hz Support CP 2.2 )
Type-C (Data Transmission Image Display 5V Max 3A output)
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On

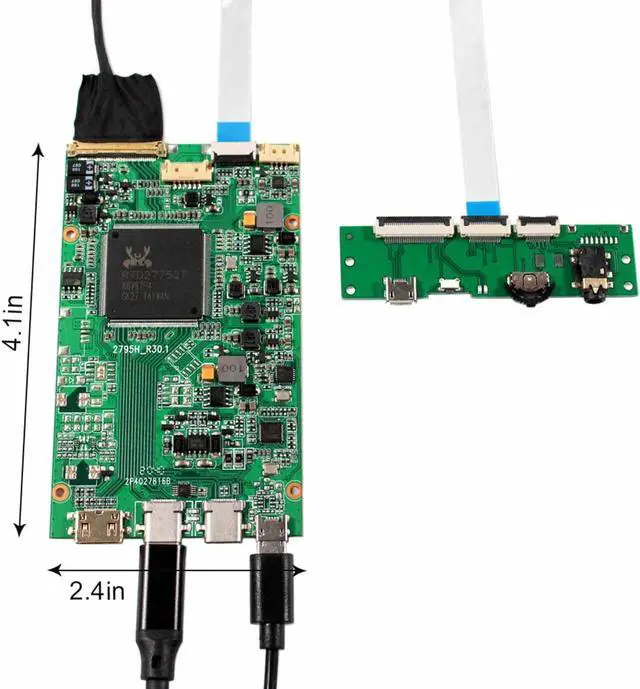

Board Size: 104.0 mm x 62mm x 5mm
14" LCD Screen NV140XTM:
Display Mode AAS, Normally Black, Transmissive
Resolution 3840 (RGB) ×1100
Outline Size 350.52 (W) × 118.65 (H) × 2.5 (D) mm
Display Area 344.218 (W) × 98.604 (H) mm
Brightness 300 cd/m² (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface eDP (4 Lanes), Connector, 30 pins
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1× Type C LCD Controller
1× 14 inch NV140XTM-N52 3840X1100 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
(Please notice that there is no power supply in the packing list, please prepare by yourself)
Type C Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen
Input Power Adapter: PD 5V dc Type C 18W
Come In Standby Model When Not Input Signal
Standby Model <1.2W
R: Support
Video Input
( max 3840x2160 60Hz Support CP 2.2 )
Type-C (Data Transmission Image Display 5V Max 3A output)
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 104.0 mm x 62mm x 5mm
14" LCD Screen NV140XTM:
Display Mode AAS, Normally Black, Transmissive
Resolution 3840 (RGB) ×1100
Outline Size 350.52 (W) × 118.65 (H) × 2.5 (D) mm
Display Area 344.218 (W) × 98.604 (H) mm
Brightness 300 cd/m² (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface eDP (4 Lanes), Connector, 30 pins
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1× Type C LCD Controller
1× 14 inch NV140XTM-N52 3840X1100 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
(Please notice that there is no power supply in the packing list, please prepare by yourself)
