DIY Water Cooling Kit with CPU/GPU Block, Cylindrical Reservoir, Pump, LED Fan, 240mm Heat Sink Connectors

Description

Specifications

:

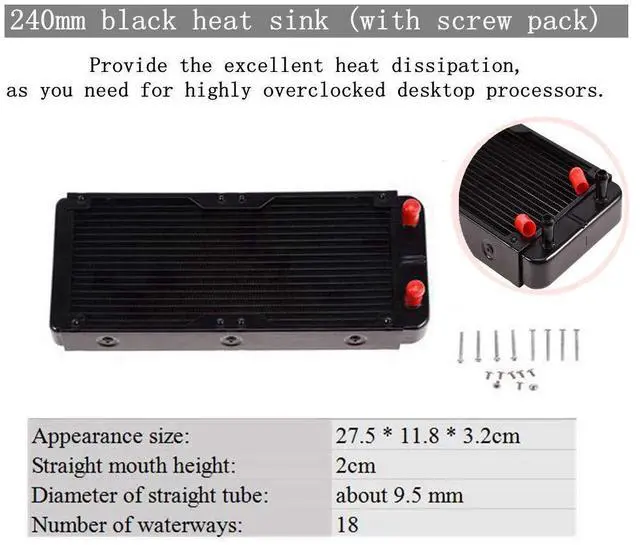

1. 240mm black heat sink (with screw pack):
Appearance size: 27.5 * 11.8 * 3.2 cm
Straight mouth height: 2cm
Diameter of straight tube: about 9.5 mm
Number of waterways: 18

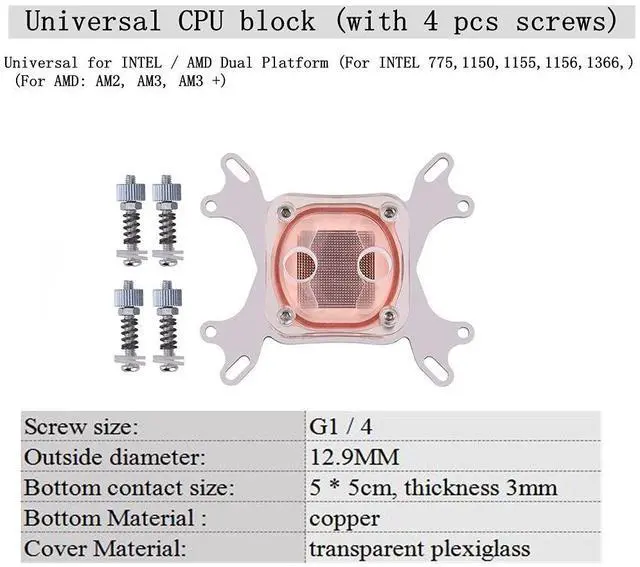

2. Universal CPU block (with 4 pcs screws):
Screw size: G1 / 4
Outside diameter: 12.9MM
Bottom size: 5 * 5cm, thickness 3mm
Material: Bottom: copper; Cover: transparent plexiglass

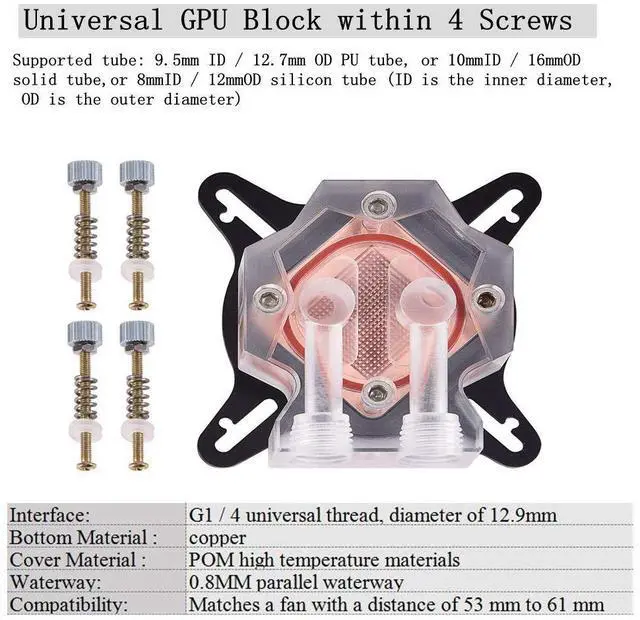

3. Universal GPU block
Interface: G1 / 4 universal thread, diameter of 12.9 mm
Material:
Bottom: copper; Cover: POM high temperature materials
Waterway: 0.8MM parallel waterway
Compatibility: Matches a fan with a distance of 53 mm to 61 mm
Supported tube: 9.5 mm ID / 12.7 mm OD PU tube, or 10mmID / 16mmOD solid tube, or 8mmID / 12mmOD silicon tube (ID is the inner diameter, OD is the outer diameter)

4. Cylindrical Water Reservoir (including plastic bracket * 2, metal bracket * 2, screw
pack * 1):
Water reservoir height: about 160mm
Water reservoir diameter: 5cm
Water reservoir interface: G1 / 4 universal thread
Interface diameter: 12.9 mm

5.
Transparent hose:
Inner diameter: 8mm
Outer diameter: 12mm

6.
Pump (including shock pad):
Features: Waterproof, high stability, quiet, long lasting.
Thread size: G1 / 4
Interface diameter: 12.9 mm
Pump Size: Overall Length 7.7CM, Height 5.2CM, Cover Thickness 2.8CM, Cover Width 5.2CM
Material: Acrylic
Pump head: 5 meters
Power supply interface: large 4Pin
Power: 9W
Current: 0.8A
Voltage: 12V
: 600L / H

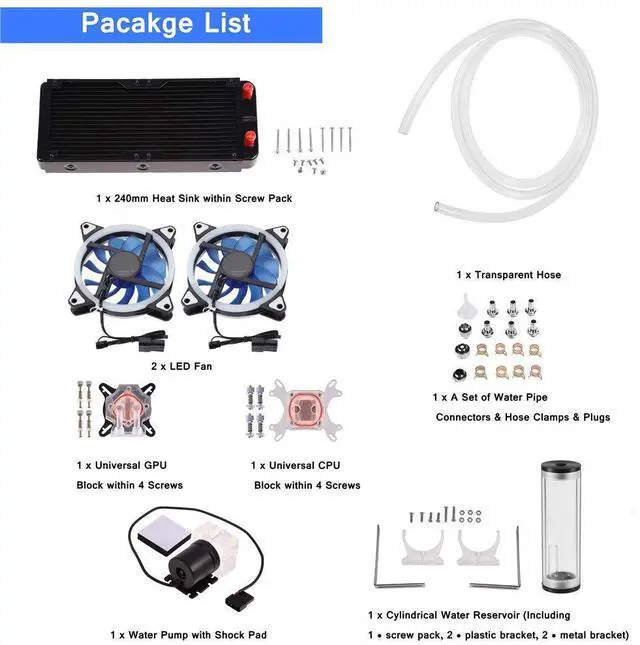

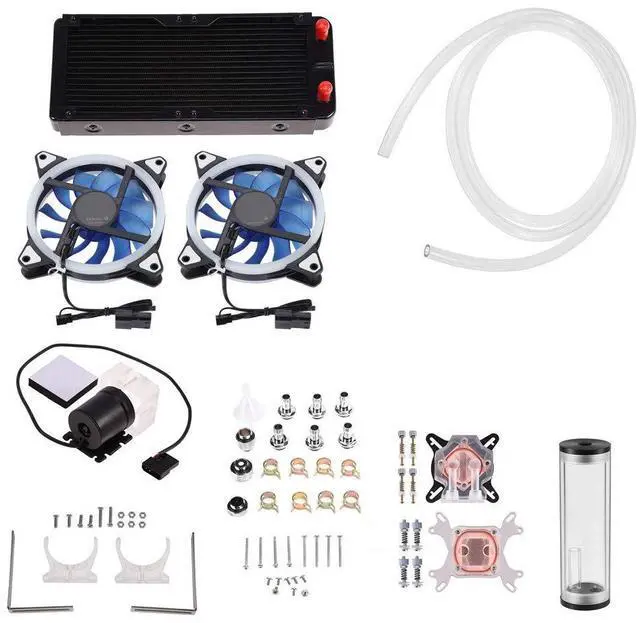

Pacakage List:
1 x 240mm Heat Sink within Screw Pack
2 x LED Fan
1 x Universal CPU Block within 4 Screws
1 x Universal GPU Block within 4 Screws
1 x C(Including 1 * screw pack, 2 * plastic bracket, 2 * metal bracket)
1 x Transparent Hose
1 x with Shock Pad
1 x A Set of Water Pipe Connectors & Hose Clamps & Plugs
