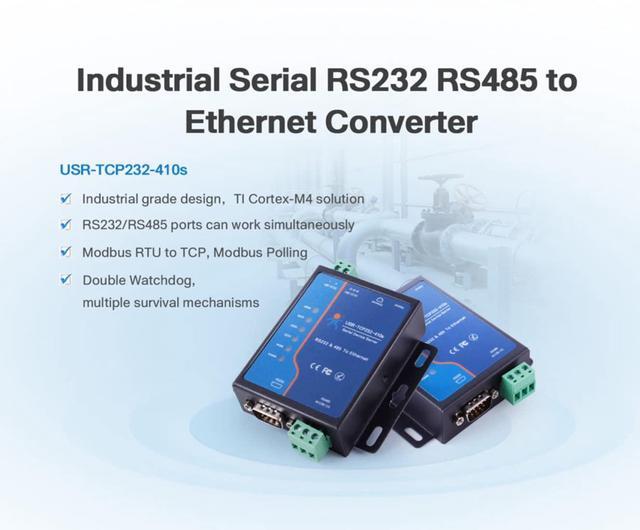

USR-TCP232-410S Serial to Ethernet Converter Support Modbus RTU & TCP Terminal Power Supply RS232 RS485 to TCP/IP Module

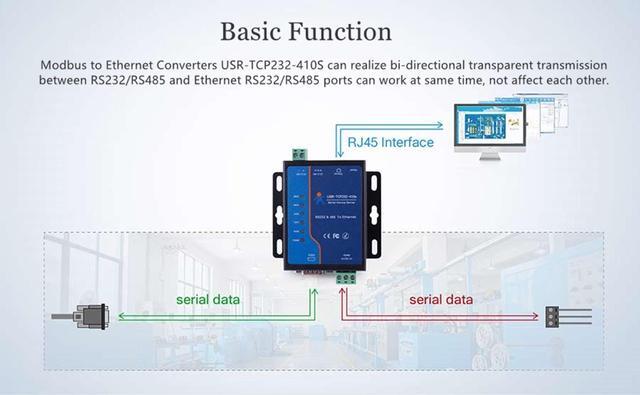

Basic Function of RS232 RS485 Ethernet Converter

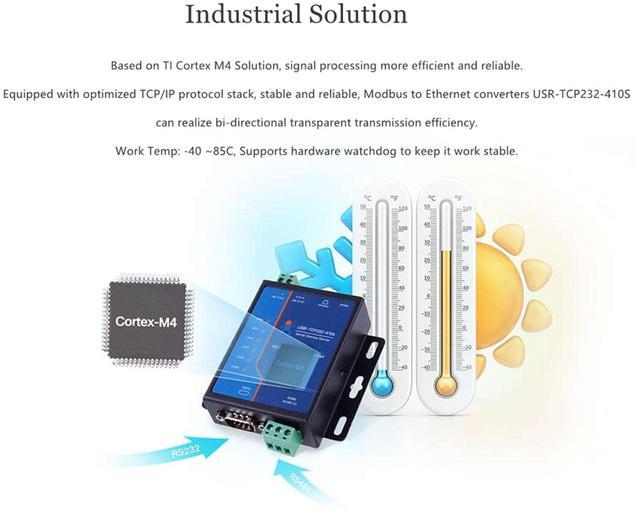

Industrial Solution: TI Cortex M4 Solution, -40~85C
Web Server: Web socket/ Web to Serial
Modbus Gateway: Modbus RTU to Modbus TCP / Modbus Pollinig
Flow Control: CTS/RTS, XON/XOFF
2 Network links, each serial supports sending data to two target servers
Network Printing
N series supports hardware watchdog, never crash

Basic Feature of RS232 RS485 Ethernet Converter
Multiple indicator lights for convenient debugging
Power-line terminal for industrial application
ARM kernel and TCP/IP protocol stack
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
TCP Server, TCP Client, UDP, UDP Server and HTTPD Client work mode
Two ports can work independently at the same time
Support virtual serial port and provide corresponding software USR-VCOM
Serial baud rate from 600bps to 230.4K bps; Check bit of None, Odd, Even, Mark and Space
DNS and DHCP supported
Provide PC TCP/IP SOCKET programming example, VB, C++, Delphi, Android, IOS
Built-in webpage; also can customize webpage for users
Reload button, one key to restore default settings
RJ45 with Link/Data indicator light, built-in isolation transformer and 2 KV electromagnetic isolation
The global unique MAC address bought from IEEE, user can define MAC address
Upgrade firmware via network

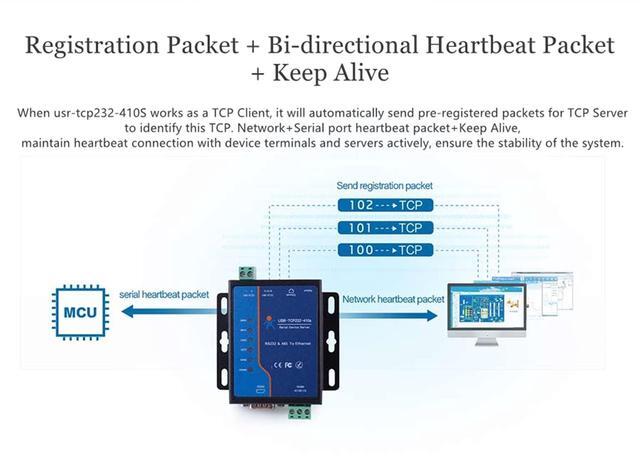

Keepalive, rapidly detect dead links
Support account and password, can be used to page login and network settings
Support one channel Websocket, realize bidirectional transparent transmisison bewteen webpage and serial 0
Support UDP broadcast function, send and receive data from all ip in the network

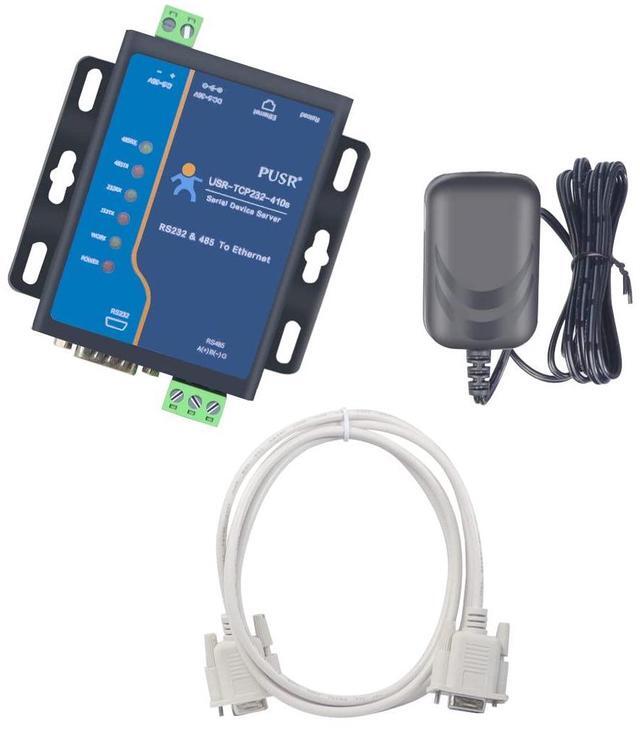

Package includes:
1* Serial to Ethernet Converter
1* Serial cable
1* Plug
