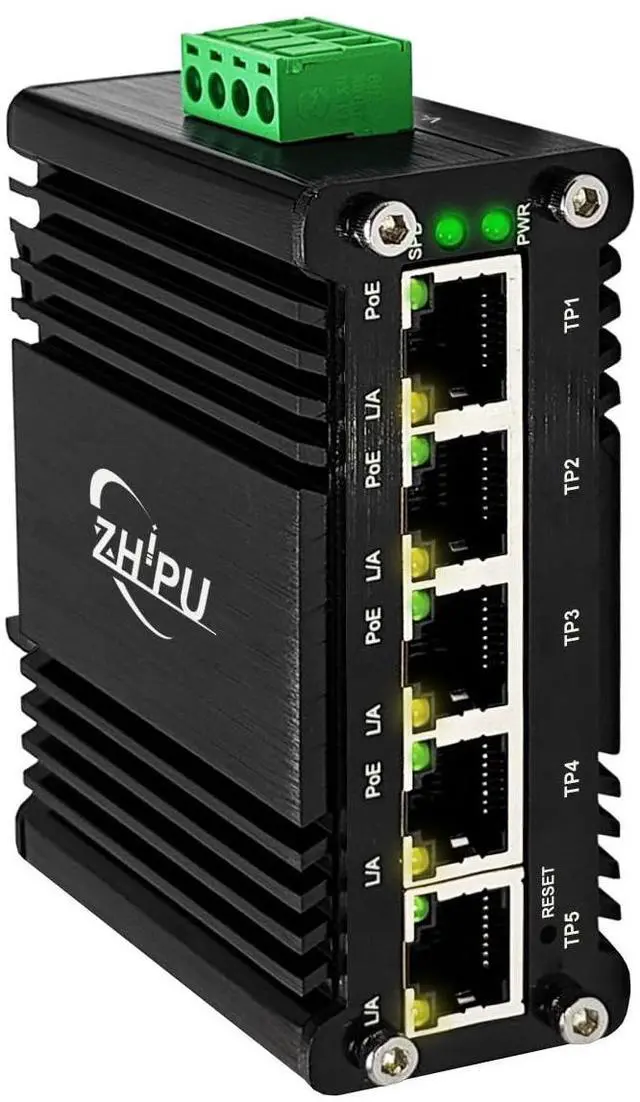

Mxtgifar Industrial 5 Ports Managed Gigabit Ethernet PoE Switch Web Management Switch Din Rail Small Smart Network Switch IEEE802.3at 30W@120W, Support QoS, VLAN 12-48V DC
- 5x10/100/1000Base-T RJ45 with Auto-MDI/MDIX
- This product supports IEEE 802.3af/at PoE+(TP1 to TP4) and is equipped with an independent upstream port (TP5).
- The switch is designed with low power consumption, no fan and no noise.Featuring a durable aluminum casing, it can operate reliably in extreme temperatures ranging from -40 ° C to 75 ° C.
- DIN rail network management switch, designed specifically for industrial use, supports various redundant power inputs ranging from 12 to 48VDC.
- The groove design is intentionally raised by six centimeters to facilitate the protection of the product's interior from damage and can be used under various conditions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

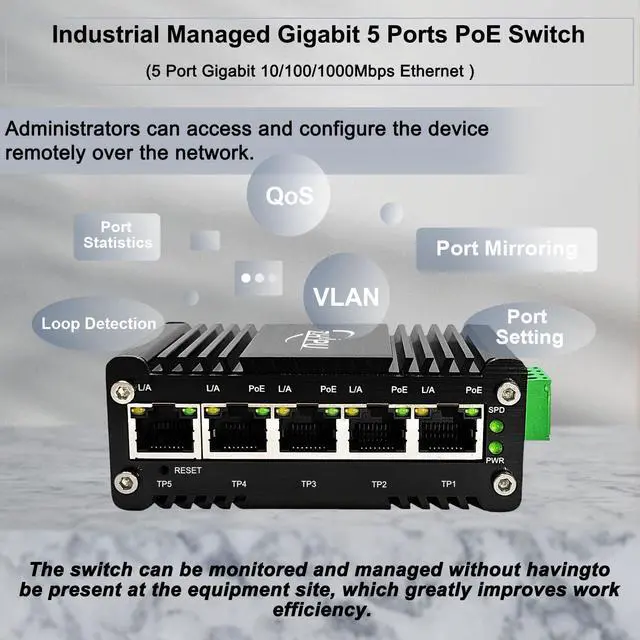

The MT-IMC005GPM is a DIN-rail mounted web-managed switch designed for industrial use, supporting a wide range of redundant power inputs from 12 to 48VDC. The switch is designed with low power consumption, no fan and no noise. The aluminum alloy metal shell provides excellent heat dissipation, ensuring stable product operation. Built with a durable aluminum case, it operates reliably in extreme temperatures from -40°C to 75°C. It also has extensive LED indicators for network diagnostics. The switch features five 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports with IEEE 802.3 at PoE+ (TP1-TP4) support and one uplink port (TP5).
Its Ethernet ports are compatible with both half-duplex and full-duplex modes. This device offers a reliable and user-friendly solution for network integration, particularly for connecting devices like IP cameras and wireless access points over long distances.
Features:
5x10/100/1000Base-T RJ45 with Auto-MDI/MDIX
Supports IEEE 802.3 af/at PoE+ (TP1 to TP4) and equipped with Independent Uplink port (TP5)

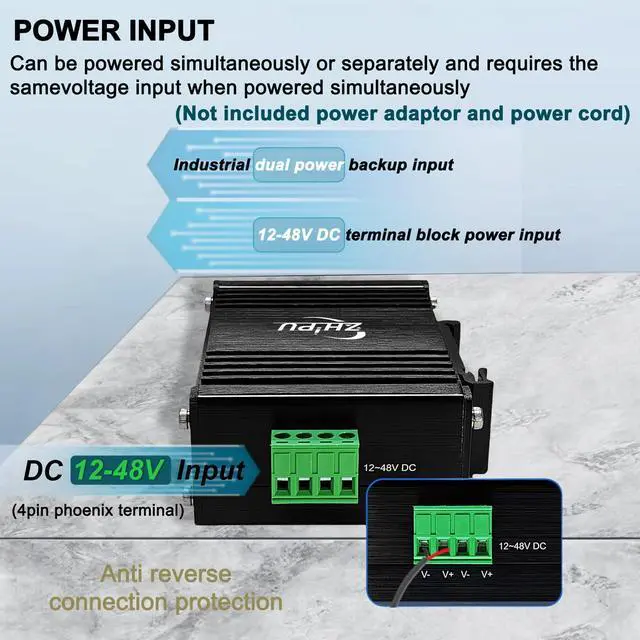

Supports 12~48VDC wide voltage Redundant Power Input and boost to 48V PoE output

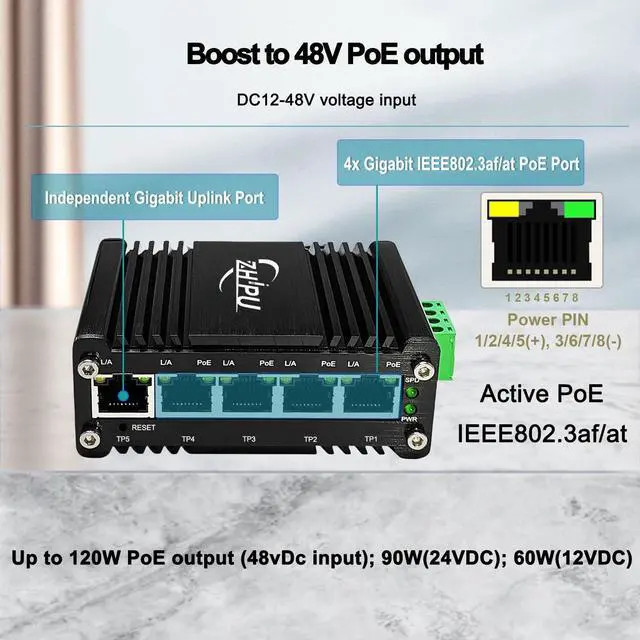

Supports up to 120w PoE budget (48VDC), 90wt PoE budget (24VDC), 60w PoE budget (12VDC)

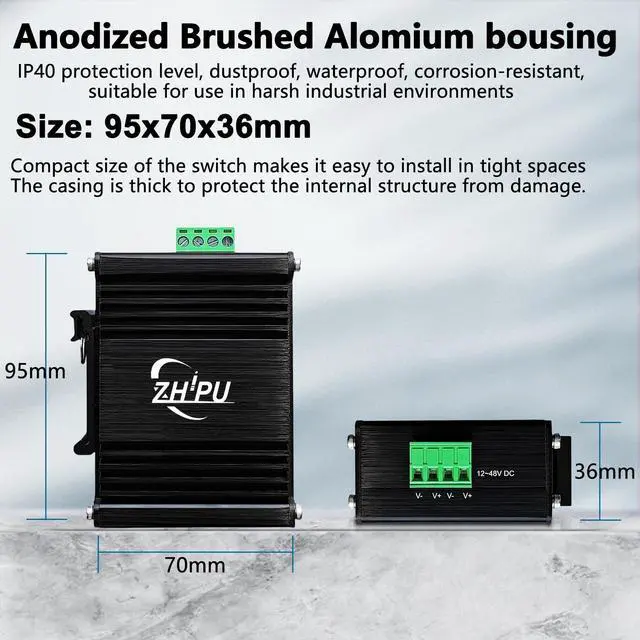

Support DIN-Rail and Wall-mount installation; Design of brushed oxidized aluminum alloy housing
Environmentally hardened -40 to 75 (-40 to 167) operating temperature
Its Ethernet ports are compatible with both half-duplex and full-duplex modes. This device offers a reliable and user-friendly solution for network integration, particularly for connecting devices like IP cameras and wireless access points over long distances.
Features:
5x10/100/1000Base-T RJ45 with Auto-MDI/MDIX
Supports IEEE 802.3 af/at PoE+ (TP1 to TP4) and equipped with Independent Uplink port (TP5)
Supports 12~48VDC wide voltage Redundant Power Input and boost to 48V PoE output
Supports up to 120w PoE budget (48VDC), 90wt PoE budget (24VDC), 60w PoE budget (12VDC)
Support DIN-Rail and Wall-mount installation; Design of brushed oxidized aluminum alloy housing
Environmentally hardened -40 to 75 (-40 to 167) operating temperature
