Pinhaijing LAN Ethernet 2 Way Relay Board Delay Switch TCP/UDP Controller Module Web Server

LAN Ethernet 2 Way Board Delay Switch TCP/UDP Controller Module WEB Server

Descriptions:
Micro-channel remote control 2-way remote cloud Ethernet network switch delay TCP/UDP module controller can be expanded to 8
Control via Ethernet and internet pull 2, the release
And can be extended by a pin external module to eight outputs
Module supports TCP, UDP, cloud remote control three kinds of operation
Easy to understand instructions, instruction can 1--65535 seconds delay
Module is equipped with VB, for Delphi PC program and source code to help you easily computerized remote control
TCP and cloud remotely can check the status of all relays
Also after each command processing is complete, the module will return to the latest state of all relays
UDP mode no status query or other returns
Code is extremely simple, easy to be embedded into a variety of applications
Full support for secondary development, open TCP, UDP control protocol, cloud secondary development package provides remote SOAP Web Service API interface and RESTful Web Service API interface

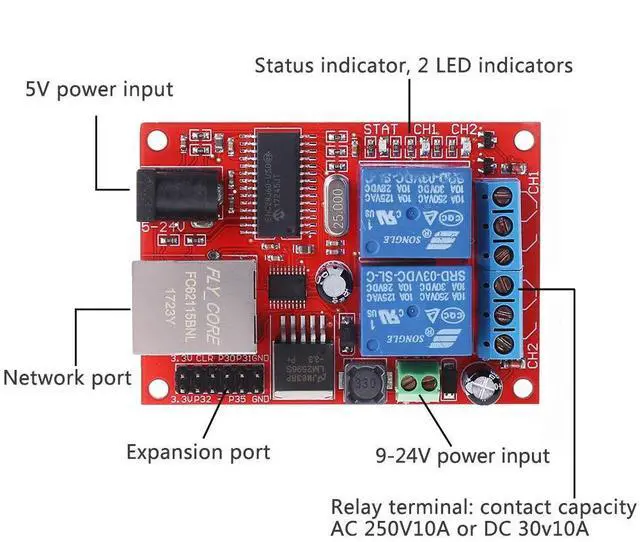

Module Features:

STC microcontroller for industrial chip
Onboard 2-way high-quality, with absorption diode circuit
With 1-channel power indicator, each has status indicator lights up and
The module can be extended up to 8 outputs, Note:
The module should be active high
You can configure the module through the network parameters, such as the module IP address, default for gateway, etc
Holding status before power down (configurable)
Through internet control, remote cloud by local password for protection, safe and reliable
Supports 5V or 9-24V input voltage 1.6 mm thick PCB by the military grade FR-4 sheet material, PCB size 6.8 x 4.8 cm, set aside the mounting holes

Specification:
Brand new
PCB dimensions: approx. 6.8 x 4.8 x 1.5 cm/ 2.68 x 1.89 x 0.59"
P
