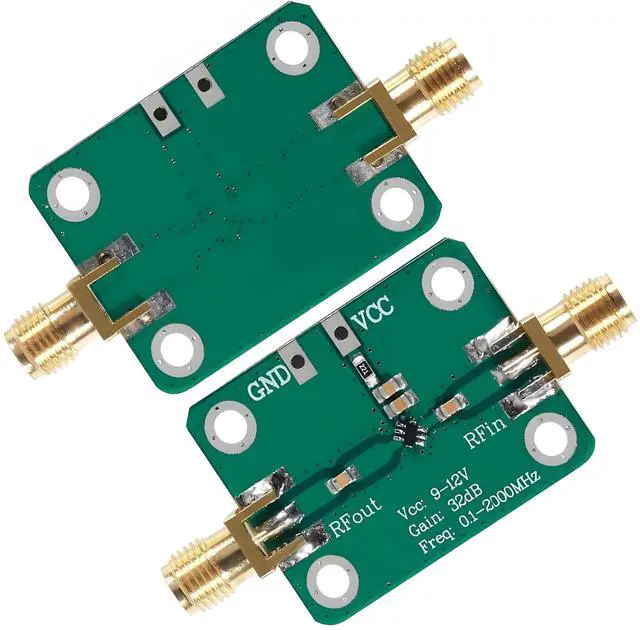

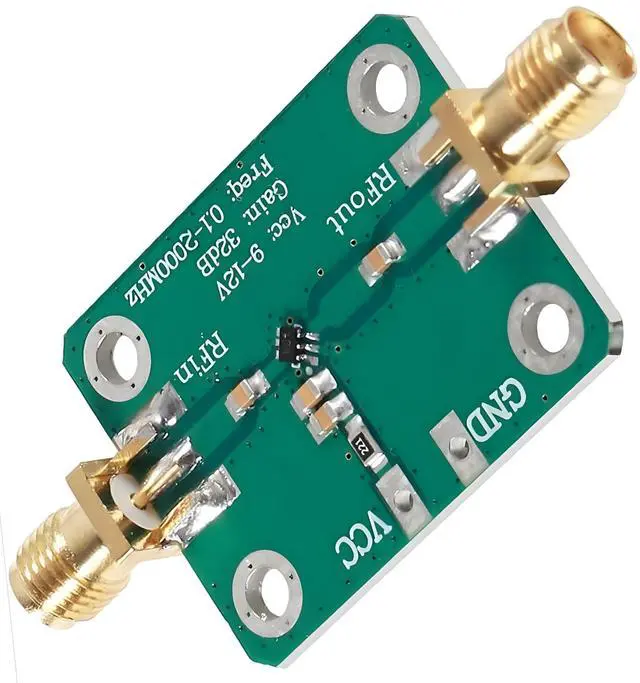

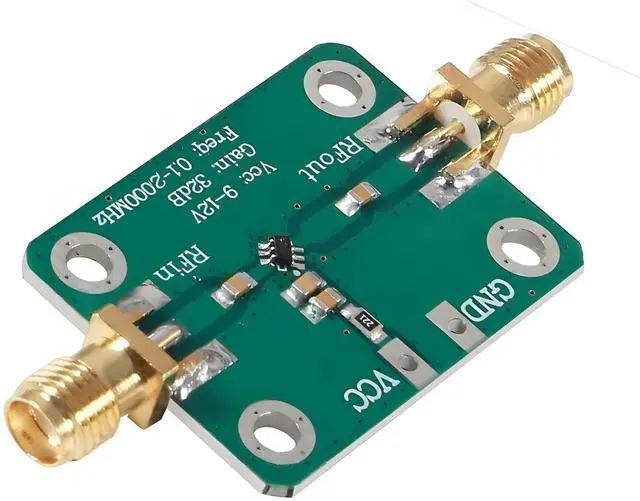

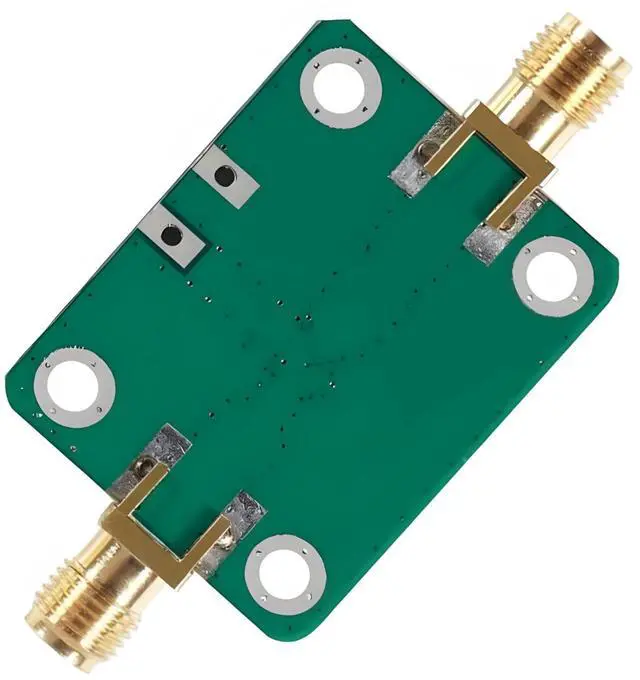

PAMEENCOS 5pcs 0.1-2000MHz RF WideBand Amplifier 30dB High Gain Low Noise LNA Amplifier LNA Development Board
- Maximum output power 12dBm (P1dB) (1-2000MHz) (if the post-stage has low-pass links, it can even reach 18dBm)
- Frequency: 1-2000MHz, Gain: Gp>30dB, Noise figure: 2dB @500MHz
- Output power: P1db>13dBm, Supply voltage: 9-12V, Operating current: about 30-40mA
- 35.8dB@100MHz, 35.8dB@300MHz, 35.6dB@500MHz, 32.6dB@1000MHz, 26.4dB@1500MHz, 19.6dB@2000MHz
- A perfect match various circuits as ideal amplifier buffer amplifiers
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: 1. Maximum output power 12dBm (P1dB) (1-2000MHz) (if the post-stage has low-pass links, it can even reach 18dBm)2.
Frequency: 1-2000MHz3.
Gain: Gp>30dB4.
Noise figure: 2dB @500MHz5.
Output power: P1db>13dBm6.
Supply voltage: 9-12V7.
Operating current: about 30-40mA8.
Minimum size: 25*39mm (excluding connector length) 9.
Weight: 7g10. 35.8 dB@100MHz11. 35.8 dB@300MHz12. 35.6 dB@500MHz13. 32.6 dB@1000MHz14. 26.4 dB@1500MHz15.

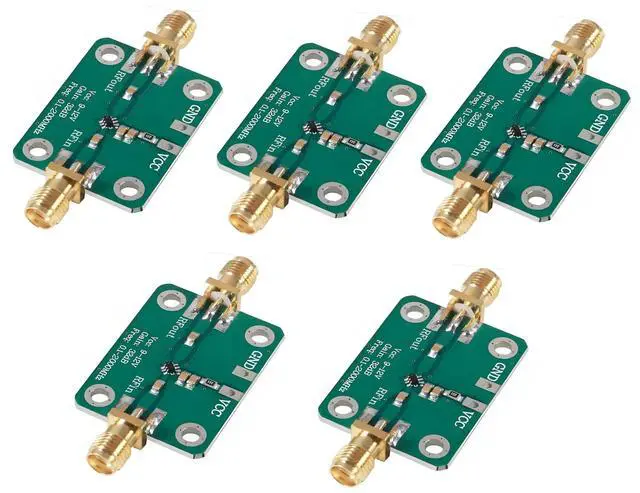

19.6 dB@2000MHzPackage included: 5pcs 0.1 -2000MHz RF WideBand Amplifier 30dB High Gain Low Noise LNA Amplifier LNA Development Board
Frequency: 1-2000MHz3.
Gain: Gp>30dB4.
Noise figure: 2dB @500MHz5.
Output power: P1db>13dBm6.
Supply voltage: 9-12V7.
Operating current: about 30-40mA8.
Minimum size: 25*39mm (excluding connector length) 9.
Weight: 7g10. 35.8 dB@100MHz11. 35.8 dB@300MHz12. 35.6 dB@500MHz13. 32.6 dB@1000MHz14. 26.4 dB@1500MHz15.
19.6 dB@2000MHzPackage included: 5pcs 0.1 -2000MHz RF WideBand Amplifier 30dB High Gain Low Noise LNA Amplifier LNA Development Board
