Coolwell FT232 USB to UART TTL Module USB-C Connector Compatible 3.3V/5V Logic Level, Supports Mac OS, Linux, Android, Wince, Windows 7/8/8.1/10/11 (2pcs Pack)
- FT232 USB UART board, original FT232RL onboard
- FT232 USB UART device, supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
- FT232 USB C, 3x VCCIO power mode via jumper setting: VCCIO - 5V: 5V output; VCCIO - 3.3V: 3.3V output; open the jumper: powered from target board (3.3V-5V)

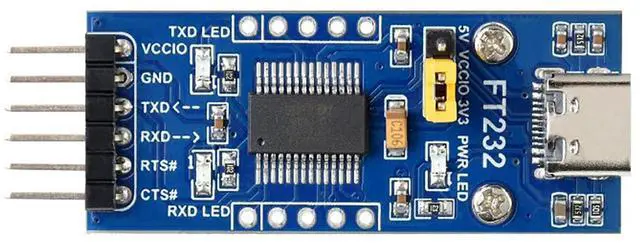

- 3x LED indicators: TXD, RXD, PWR; Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#

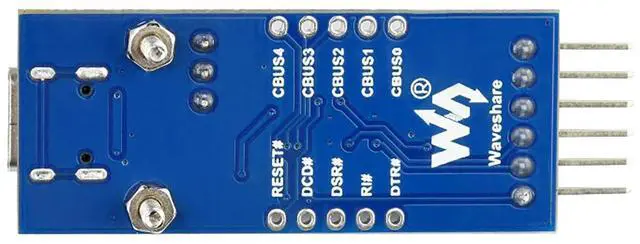

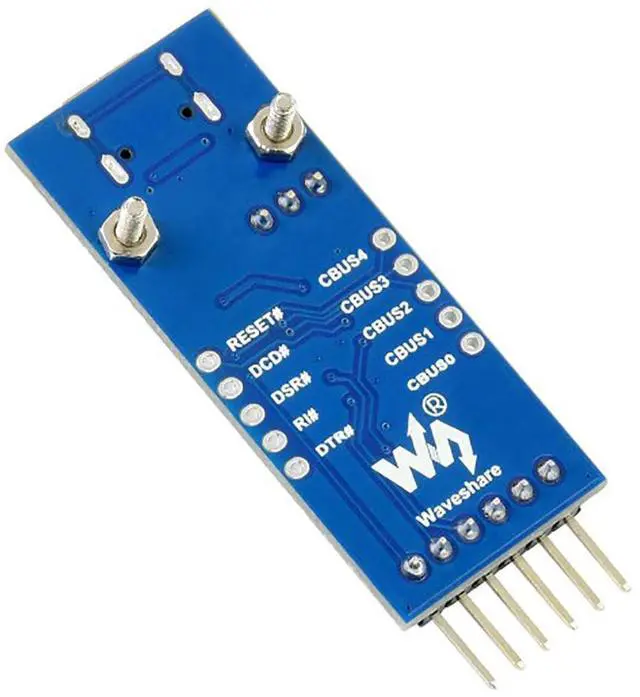

- Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FeaturesOriginal FT232RL onboardSupports Mac OS, Linux, Android, WinCE, Windows 7/8/ 8.1 /10/11... 3x VCCIO power mode via jumper setting: --VCCIO
- 5V: 5V
output--VCCIO - 3.3V: 3.3V
output--open the jumper: powered from target board ( 3.3V -5V)3x
LED indicators: TXD, RXD, PWR
Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board) Part List1. FT232 USB UART Board (Type C) x22. 6-pin custom connector jumper wire x23. 5-pin male pinheader & 5-pin female pinheader x4
- 5V: 5V
output--VCCIO - 3.3V: 3.3V
output--open the jumper: powered from target board ( 3.3V -5V)3x
LED indicators: TXD, RXD, PWR
Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board) Part List1. FT232 USB UART Board (Type C) x22. 6-pin custom connector jumper wire x23. 5-pin male pinheader & 5-pin female pinheader x4
