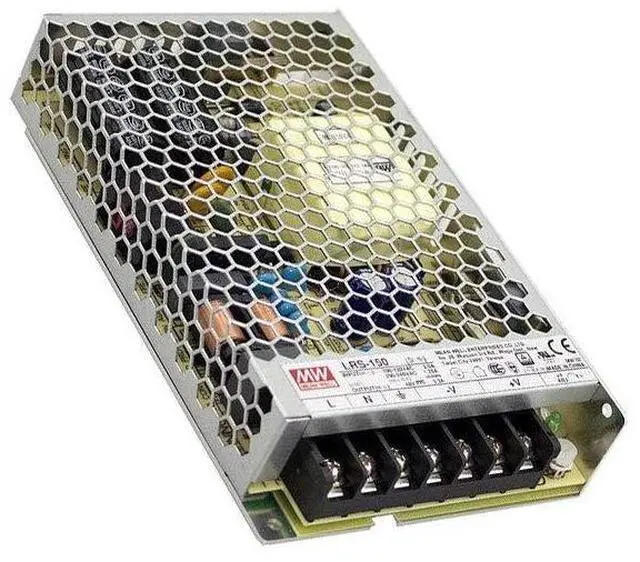

Mean Well LRS-150-12 150W Single Output Switchable Power Supply 12VDC 12.5A (LRS Series 150W 12V)

Your electronic devices will need this LRS-150-12 AC to DC power supply from MEAN WELL to convert alternating currents into useful direct currents to operate. It has a voltage of 12 V and maximum output power of 150 W. This part's single output can handle a current up to 12.5 A. This part has a temperature range of -30 C to 70 C.
EU RoHS: CompliantECCN
(US): EAR99Package
Height: 30mmPackage
Width: 97mmPackage
Length:
159mmMounting: ScrewPCB
changed:
7Type:
SwitchingStyle: EnclosedInput/Output
Type: AC/DCNumber of
Outputs: 1Output
Type: FixedOutput
Voltage (V): 12Output
Current (A): 12.5O utput
Power (W): 150Minimum AC
Input Voltage (V): 85Maximum AC
Input Voltage (V): 264Minimum DC
Input Voltage (V): 240Maximum DC
Input Voltage (V): 370Minimum
Isolation Voltage: 3750VAC
Line Regulation: 0.5 %Load
Regulation: 0.5 %Maximum
Input Current (A): 2.8 (Typ)
Input Frequency (Hz): 47
to 63Tolerance (%): 1Efficiency
(%): 87.5 (Typ)
Configurable: NoInput
Connector Type: Screw Terminal BlockOutput
Connector Type: Screw
Terminal BlockPower Indicator: YesRipple
& Noise: 150mV (Max)
Medical: NoMinimum
Operating Temperature (C): -30Maximum
Operating Temperature (C): 70Product
Weight (g): 480Pin
Count: 7You could go to MEAN WELL company website, click "Service" and choose "Quality Control Inspection Report", input S/N number to get the test report and lot information. About the quotation for batch order, please contact with the seller directly.
