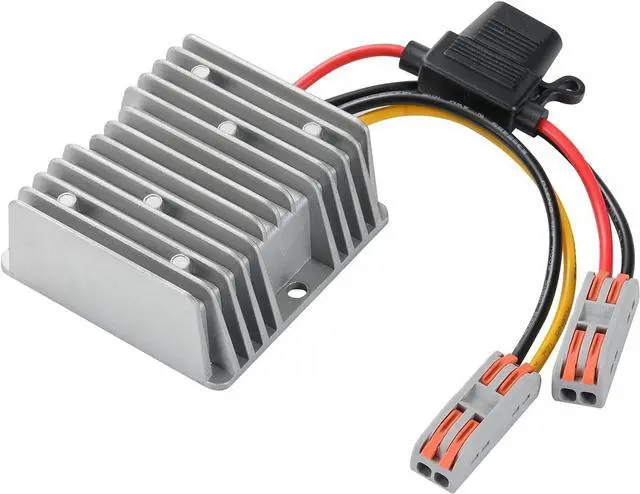

YABOANG 10-22V to 24V 10A 240W Waterproof DC-DC Boost Converter with Fuse

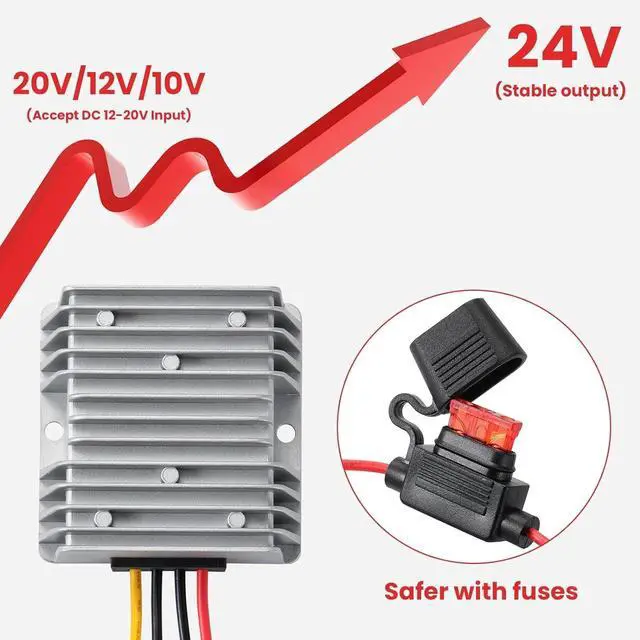

- Voltage Converter Features: Boosts DC 12V to 24V 10A 240W MAX, Transmission efficiency: 95%, Fixed output voltage, Our voltage converter is with junction box and fuse, which is safe, reliable and easy to use. When the voltage is too high, the circuit is faulty or abnormal, the fuse will blow and the transformer will shut down to protect the electrical appliances. This also reduces the risk of fire and explosion

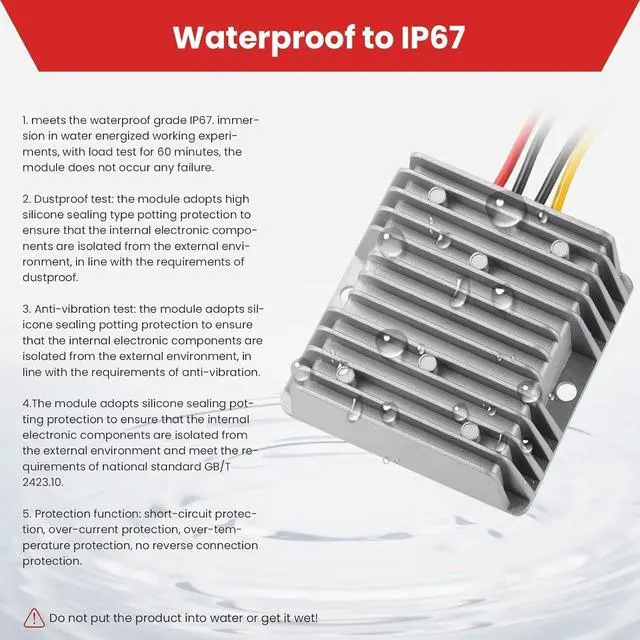

- Heat Dissipation PerformanceThe12V voltage booster has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance
- Intelligent ProtectionAssembled with smart chip, equipped with intelligent overcurrent/overload/low load/short circuit/overheat protection by using the12V power transfomer voltage
- Widely ApplicationThe12V DC boost voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DC-DC converter: 12V to 24V 10A 240W MAX
Input parameters: 1.
rated input voltage: 10-22V2.
transfer efficiency: 95%3,
Input line: 15-16CM (R+
B-)Output parameters: 1,
Output voltage: 24V2.
output: 10A MAX3, Maximum
output power: 240W MAX4. idle adjustment rate 2%5. load regulation 3%6. quiescent current loss 20MA7. output line 15-16CM(Y+
B-)Environmental parameters: 1. working temperature -20-652. storage temperature -40-853.
working humidity 10%-90%RHDefense function: 1. waterproof classification IP672. short circuit protection YES3. overheating protection YES4. overcurrent protection YES

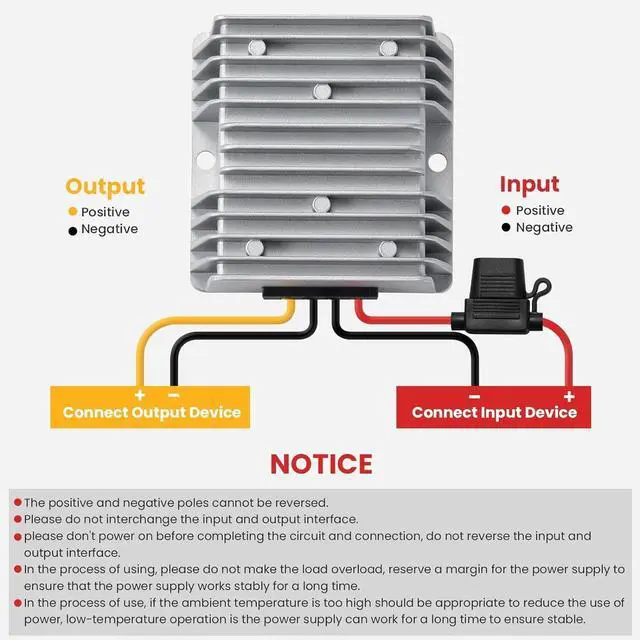

Please read the safety instructions carefully to avoid leakage, explosion or fire1. do not use the appliance near a heat source such as a fire or heater2. do not connect the input cable to 220V electricity3. do not place the product in a fire or heat it up4. do not short-circuit the positive or negative pole of the device with wires or other metal objects5. non-professional personnel must not disassemble and repair the device themselves6. the product is not equipped with protection against reverse polarity of the input. Note that the positive and negative poles of the input must not be reversed and that reversing the polarity will result in permanent damage to the product7.
storage: store the product in a dry and cool place with a temperature of -40 to 80, avoid contact with corrosive substances, and keep it away from fire and heat sources8. heat dissipation methodnatural heat dissipation, no other equipment is required to assistPackage includes: 1 x converter
Input parameters: 1.
rated input voltage: 10-22V2.
transfer efficiency: 95%3,
Input line: 15-16CM (R+
B-)Output parameters: 1,
Output voltage: 24V2.
output: 10A MAX3, Maximum
output power: 240W MAX4. idle adjustment rate 2%5. load regulation 3%6. quiescent current loss 20MA7. output line 15-16CM(Y+
B-)Environmental parameters: 1. working temperature -20-652. storage temperature -40-853.
working humidity 10%-90%RHDefense function: 1. waterproof classification IP672. short circuit protection YES3. overheating protection YES4. overcurrent protection YES
Please read the safety instructions carefully to avoid leakage, explosion or fire1. do not use the appliance near a heat source such as a fire or heater2. do not connect the input cable to 220V electricity3. do not place the product in a fire or heat it up4. do not short-circuit the positive or negative pole of the device with wires or other metal objects5. non-professional personnel must not disassemble and repair the device themselves6. the product is not equipped with protection against reverse polarity of the input. Note that the positive and negative poles of the input must not be reversed and that reversing the polarity will result in permanent damage to the product7.
storage: store the product in a dry and cool place with a temperature of -40 to 80, avoid contact with corrosive substances, and keep it away from fire and heat sources8. heat dissipation methodnatural heat dissipation, no other equipment is required to assistPackage includes: 1 x converter
