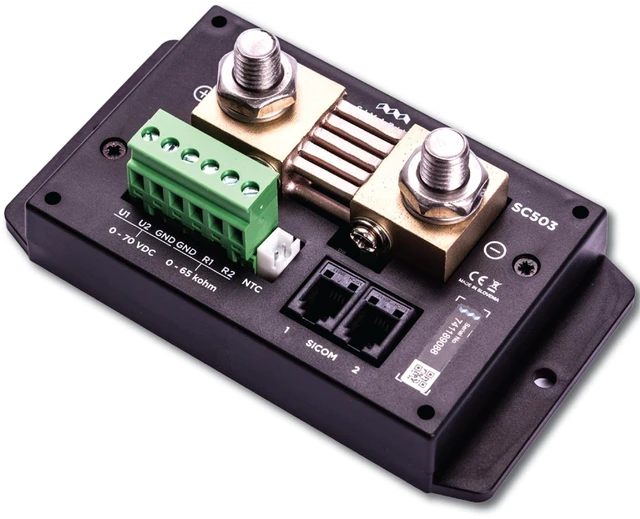

Simarine SC503 shunt 500A, Tank Monitoring, Inverter Monitoring, Compatible with PICO Battery Monitor and VIA Control Panel, Compatible with Simarine PICO Battery Monitor and VIA Control Panel

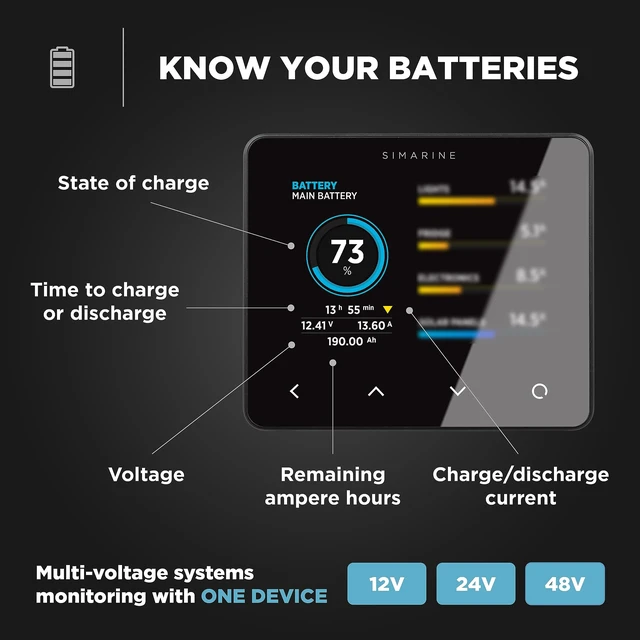

- All you need to know about your batteries: The SC503 is innovative combination of high-amp shunt and tank level module. It primary purpose is to provide complete battery monitoring by showing you the complete state of a battery or battery banks charge, its current reading and voltage reading, as well as the temperature of the battery compartment. Compatible with Simarine PICO Battery Monitor and VIA Control Panel
- Also for tank, inverter, solar etc. monitoring: With additional inputs that are provided on the module itself, it can also serve the purpose of monitoring additional voltage or resistance sensors, such as tank-level sensors. The high-amp shunt can also be used for measuring the current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and generators (shore power chargers and solar panels).

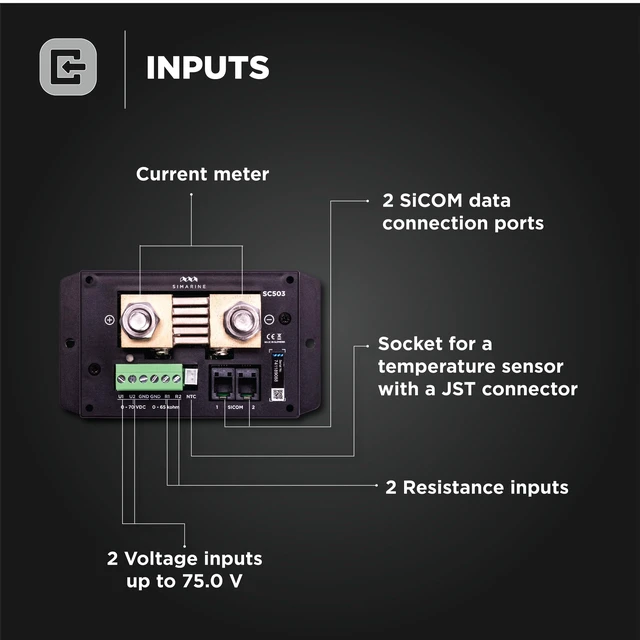

- Inputs: 2 voltage inputs up to 75.0 V, 2 resistance inputs (for the temperature), 1 socket for a temperature sensor with a JST connector, 1 current sensor up
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Simarine's high precision SC503 active digital shunt measures voltage, current, and temperature of the battery or battery bank. It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and gray water. Innovative combination of shunt and tank level module. SC503 is a high precision combo shunt for PICO battery monitor with 2 voltage, 2 temperature, 1 socket for temperature sensor with JST connector and 1 current sensor up to 500A for up to 75V systems.
SC505 is capable of measuring continuous current up to 500A and suitable for maximal power of 6000W at 12V or 12000W at 24V.
The Simarine's SC503 package contains: - 1x SC503 digital shunt - 1x SiCOM cable (5 meters). Compatible with Simarine PICO Battery Monitor and VIA Control Panel
SC505 is capable of measuring continuous current up to 500A and suitable for maximal power of 6000W at 12V or 12000W at 24V.
The Simarine's SC503 package contains: - 1x SC503 digital shunt - 1x SiCOM cable (5 meters). Compatible with Simarine PICO Battery Monitor and VIA Control Panel
