EKWB EK-Quantum Kinetic TBE 200 D5 PWM Pump-Reservoir Combo, D-RGB, Plexi

EK-Quantum Kinetic TBE D5 combo unit is the revolution of the most popular pump-reservoir assembly design on the market. The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine D5 pump! The reservoir is equipped with a total of six G1/4" ports so that users can choose the most optimal setup for their liquid cooling loops. The top features three G1/4" ports, one of which has a pre-installed nickel-plated brass internal tube which helps to prevent the splashing of the coolant inside the reservoir if the top is to be used as an inlet.

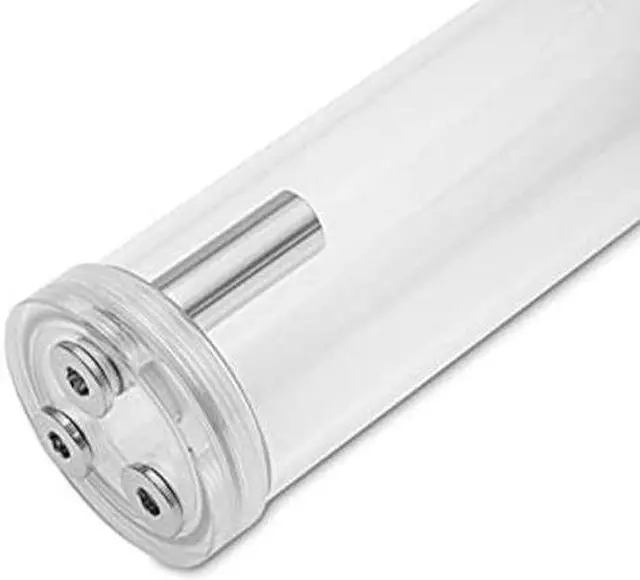

The 60mm diameter tube is made of high-quality acrylic material just like the reservoir bottom and top while the sealing is performed by a quality EPDM o-ring. The integrated addressable D-RGB is compatible with popular RGB sync technologies from all major motherboard manufacturers. This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.
Pump electrical and mechanical properties: -
Motor: Electronically commuted spherical motor -
Rated voltage: 12V DC -
Power consumption: 23W -
Maximum pressure head: 3.9 m -
Maximum flow: 1500L/h -
Maximum system temperature: 60degC -
Materials: Stainless steel, PPS-GF40, EPDM O-rings, hard coal -
Power connector: SATA Power Connector and 4-Pin PWM FAN connector
Technical specifications: - Reservoir diameter 60mm -
Reservoir free volume: 205mL -
Overall unit height: 200mm -
Mounting hole pattern: 65x34mm - D-RGB connector standard 3-pin (5+, Digital, Blocked, Ground)
Enclosed: - EK-Quantum Kinetic TBE 200 D5 PWM D-RGB - Mounting clip with rubber insert - Self-adhesive mounting hole pattern sticker - Mounting mechanism (incl. required Allen keys) - Installation manual
Model: 3831109818398
