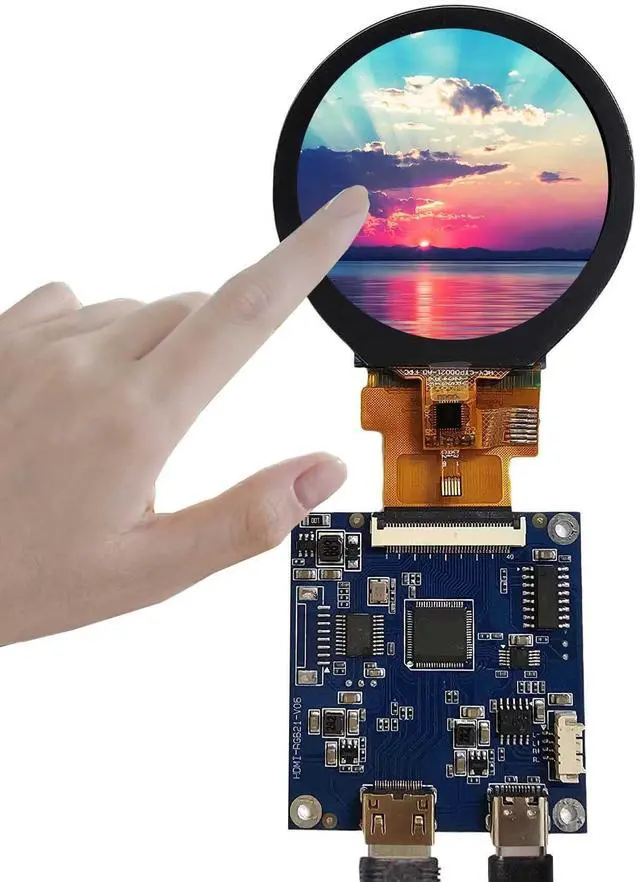

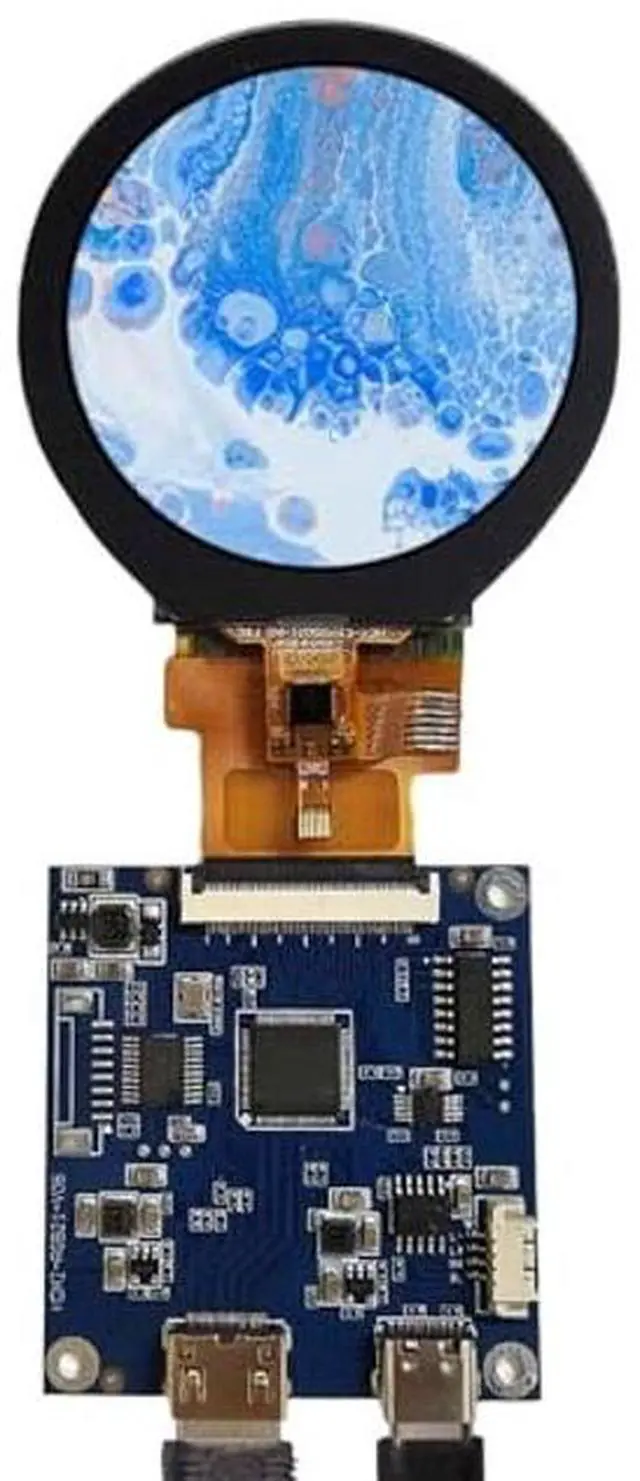

FanyiTek 2.1 inch 480X480 IPS MIPI 300nit Circle LCD Touch Screen and 40 pins Controller Board
- [(Round MIPI screen)] 2.1" 480x480 circle display,IPS full viewing angle,outline size:56.18x59.71x2.3(WxHxD)mm,display area:53.28x 53.28(WxH)mm,300nit high brightness ,WLED backlight ,input voltage: 2.8V .
- [(Controller board)] Video input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- [(Capacitive Touch sensor panel)] The design of touch panel makes the operation more convenient, No button damage issue for after long time use.
- [(Input Power)] 5Vdc More than 1A,Pls prepare it seperately .

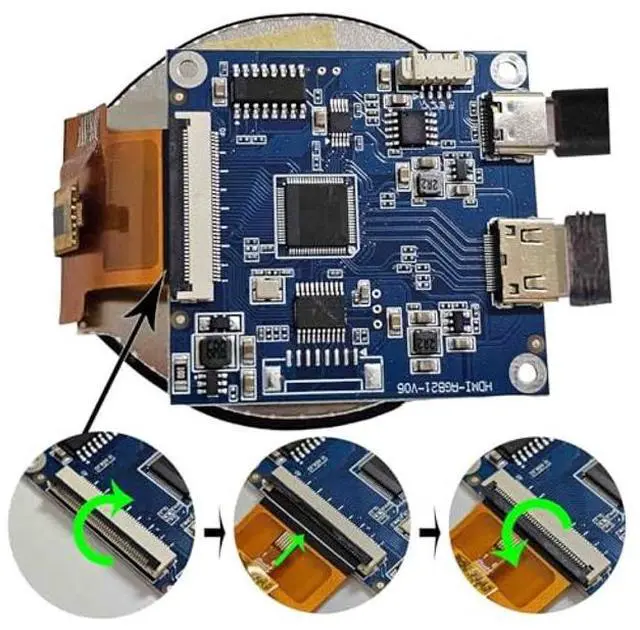

- [(Plug and play)] Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

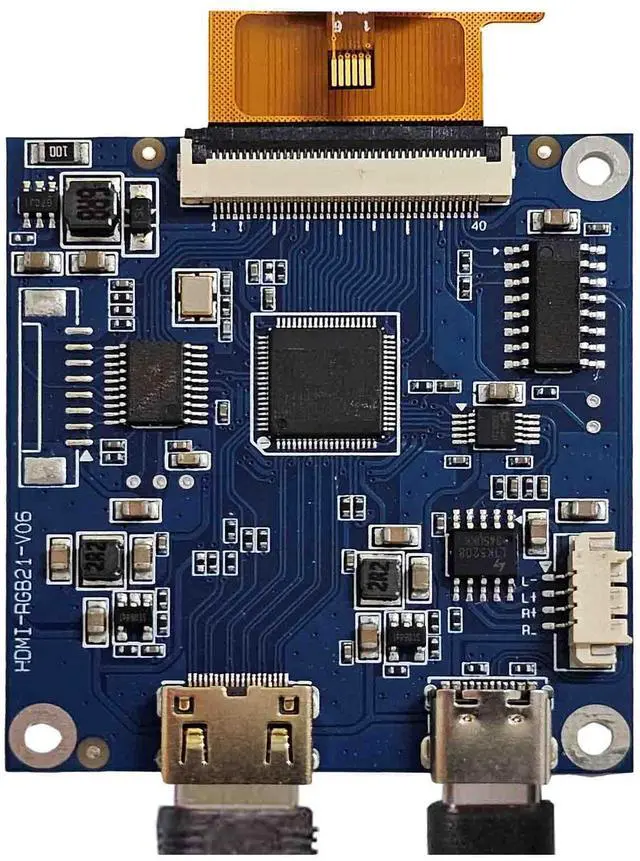

LCD Controller Board:
LCD Controller Board for Mipi Interface LCD Screen
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
2.1" VS21001C40 480X480 Capacitive Touch LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 480 (RGB) x480
Outline Size 60.5 x 62.5 x4 (WxHxD) mm
Display Area 53.28 x 53.28 (WxH) mm
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi, 40 pins,
Backlight WLED
Input Voltage 2.8V (Typ. )

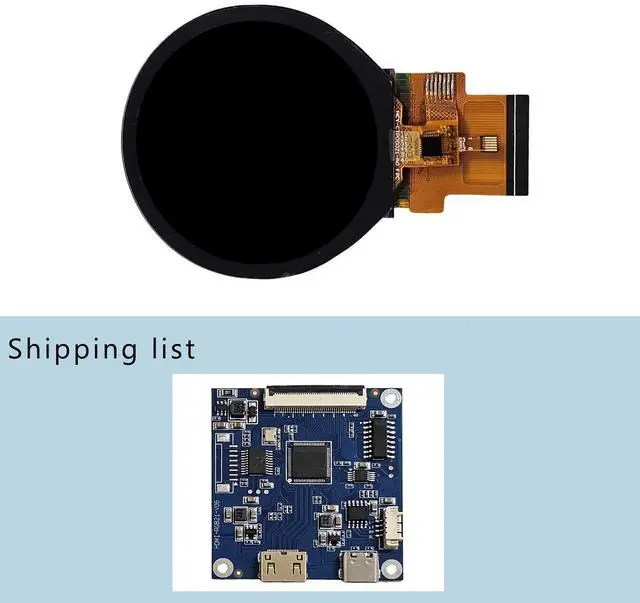

Packing list:
1xLCD Board
1x 2.1 inch VS21001C40 480x480 Capacitive Touch LCD Screen
LCD Controller Board for Mipi Interface LCD Screen
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
2.1" VS21001C40 480X480 Capacitive Touch LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 480 (RGB) x480
Outline Size 60.5 x 62.5 x4 (WxHxD) mm
Display Area 53.28 x 53.28 (WxH) mm
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi, 40 pins,
Backlight WLED
Input Voltage 2.8V (Typ. )
Packing list:
1xLCD Board
1x 2.1 inch VS21001C40 480x480 Capacitive Touch LCD Screen
