PROCET Outdoor 10 Gigabit PoE Injector Adapter 30W PoE+ IEEE802.3AT IP67 Waterproof Wide Temp -40 to 149 for IP Cameras, Wireless APs, Microwave Radio, PoE+ Powered PD

More and more people are cutting the cord and going solar, Solar to

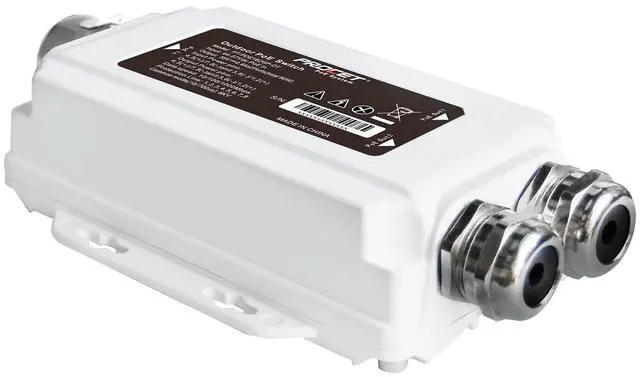

POE+: Whether you have a remote PTZ Camera or Wifi, this injector can take a wide range of input power and power and deliver constant POE+ with surge protection. An outdoor rated POE injector/midspan specially for exterior, complex backhaul and networking applicantions. Enclosed in an IP67 Reflective Aluminum case with a sealing that gasket passes tension, bearing, corrosion, and aging test for IP67 apolatons. It supports not only 10/100/1000Mbps of data rates, but also 2.5 /5/10GbE NBase-T. The single output port delivers 55V, 0.55A power 2 pair for remote PD wth 6KV (10/700us) sure protecton. It works with iuput voltage of 12-55Vdc makes it possible for solar application. The output voltage is a fixed one at 55V. Wide temperature extend to -4 to +65. The output port equipped detecting chip which is compliant with IEEE 802.3 af/at can power up wireless APS, IP cameras, Microwave radio, base stantions and other power Ethernet backhaul devices. For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Eaeily to install with mounting holes, no need to open the equipment.

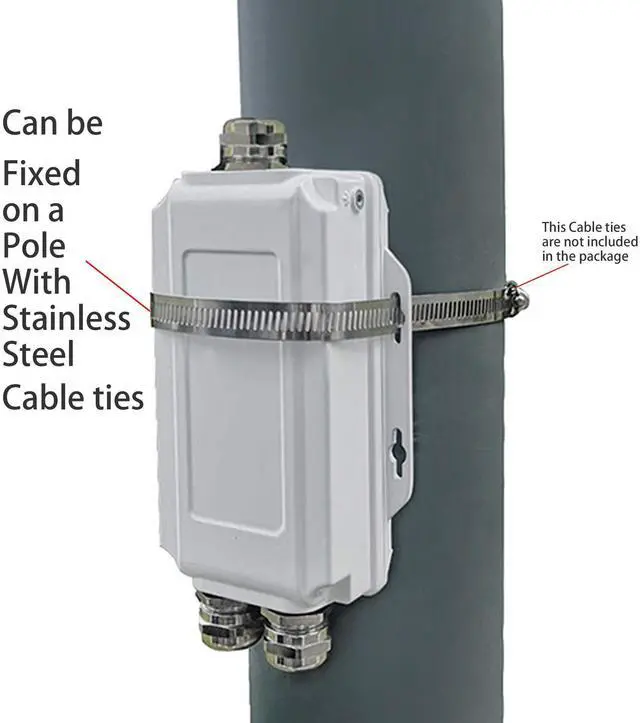

With Stainless Steel Cable ties can be fixed on a pole.
-lnput: 12-55Vdc
4.0A -Output: 55Vdc 550mA -Power
Pins: 4/5(+), 7/8(-) Mode B- -Data
Speed: 10/100/1000Mbps & 2.5 /5/10GbE -Full comoliant with lEEE802 3af/at -PoE Surge Protection 6KV, Protected
line: 1, 2, 3, 4, 5, 6, 7, 8 -
Operating Temperature: -40degC to 65degC -Operating
Humidity: 20% to 80%, non-condensation -Storage
Temperature: -40degC to 85degC -
Storage Humidity: 10%% to 95%, non condensation -
Operating Altitude: up to 5000meters.
- Case: Aluminum
-Color:

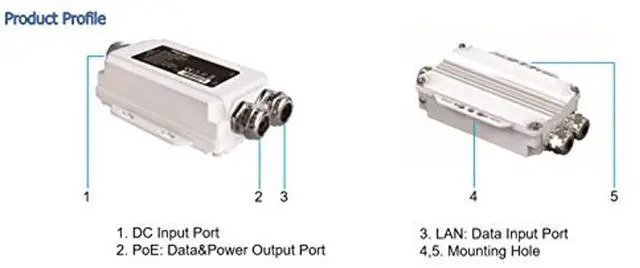

WhiteMounting: Wall-mounted/Pole-mounted -
IP Rated: IP67
-Size: 187mm X 104.79 mm
X 45mm -Weight: 565g -Packing.: Manual x 1
