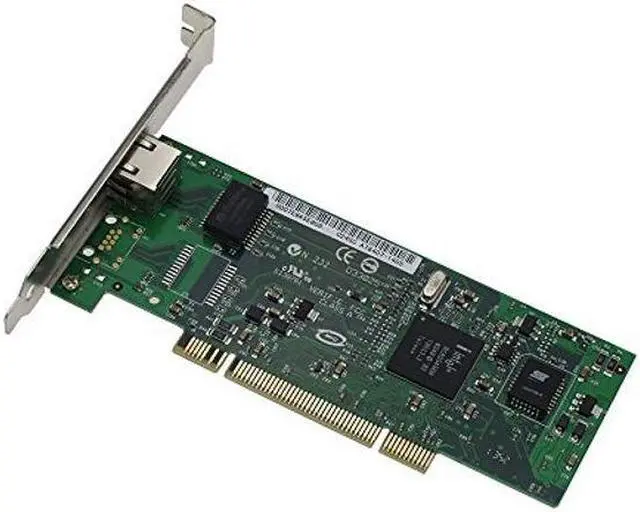

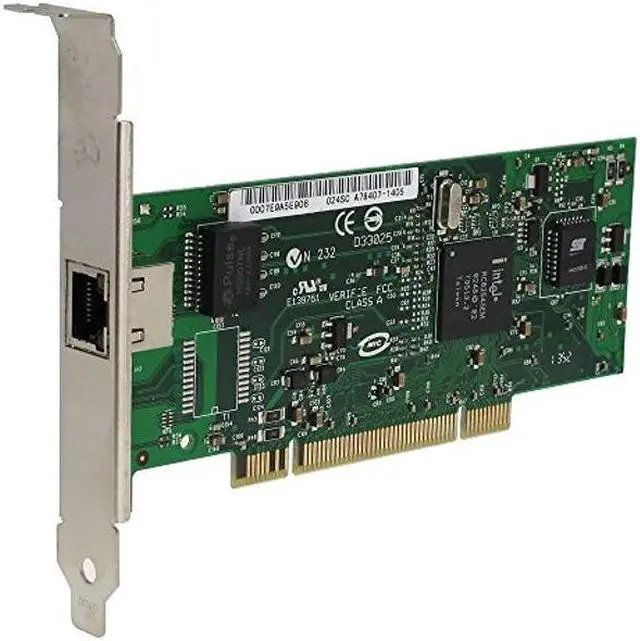

SEDNA - PCI 10/100/1000Mbs Gigabit LAN adapter (Intel 82545EM chipset)

Features and

Specifications

:

Inel 82545E chipset

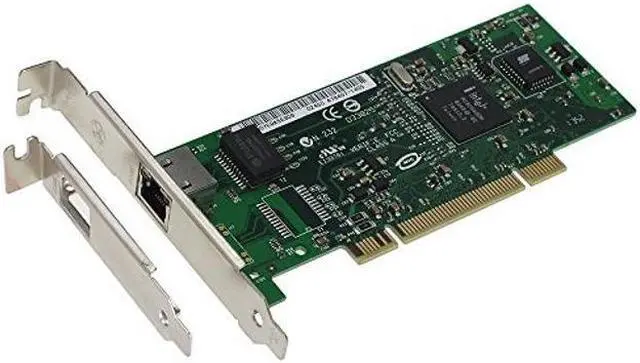

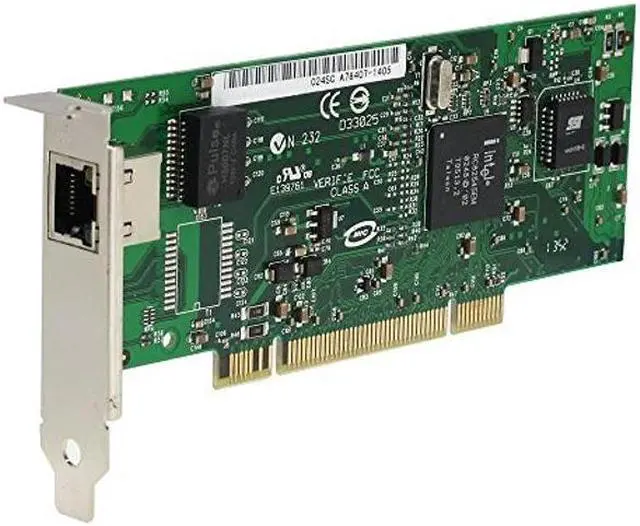

Comes with 1 standard bracket and 1 low profile bracket
PCI revision 2.2, 32/64 bit, 33/66 MHz
High-performance, auto-negotiating 10/100/1000 connection
Full duplex operation at 10/100/1000 Mb/s
Automatic Crossover Detection and Correction Supported
A standard IEEE 802.3 Ethernet interface for 1000Base-T, 100Base-TX, and 10Base-T applications ( 802.3, 802.3 u, 802.3 ab).
IEEE 802.3 x compliant flow control support with software controllable pause times and threshold values
IEEE 802.3 ab Auto-Negotiation
IEEE 802.1Q VLAN support with VLAN tag insertion and stripping and packet filtering for up to 4096 VLAN tags
Jumbo frame support up to 16KB
Compliance with PCI Power Management v 1.1 /ACPI v 2.0
Wake on LAN (WoL) support
Automatic link speed switching from 1000 Mb/s down to 10 or 100 Mb/s in standby
Connectors: 1 x RJ-45
Dimensions: 160 x 20x 120mm

Package Content:

1 x PCI LAN card
1 x Driver CD
1 x Low profile bracket
