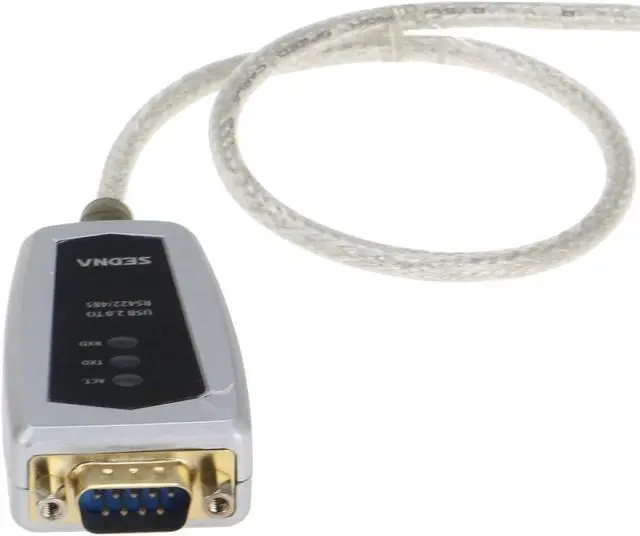

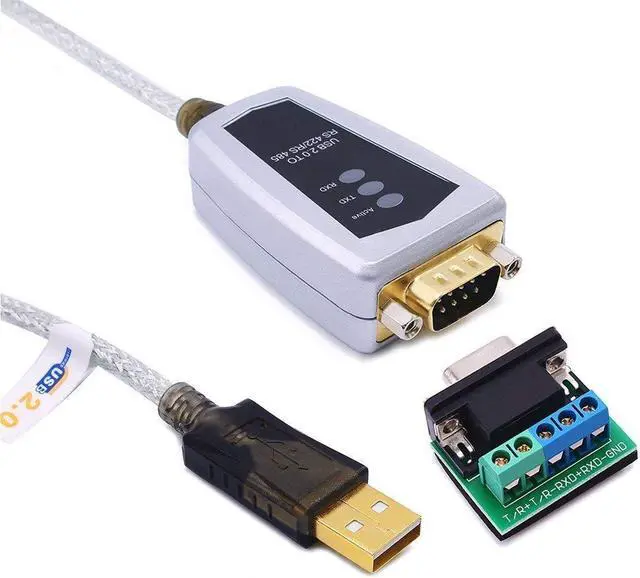

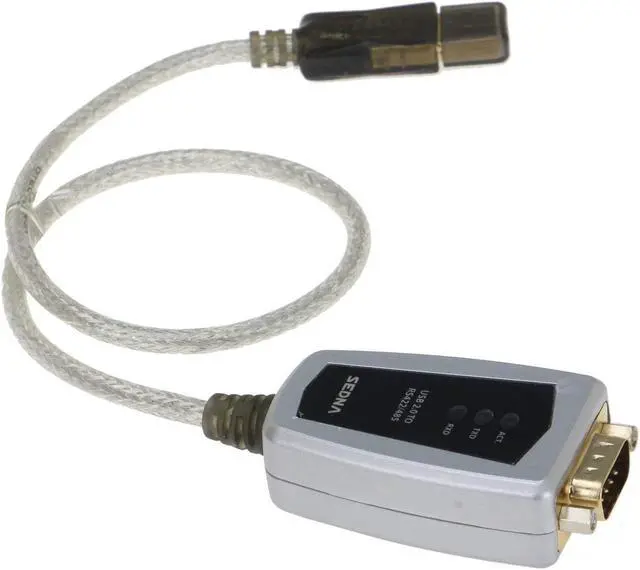

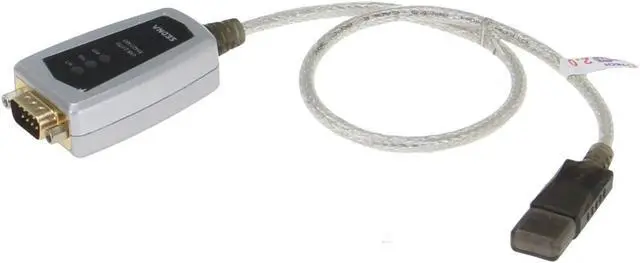

Sedna - USB to RS422 / RS485 Serial Port Converter Adapter Cable (FTDI chipset)
- With FTDI Chip Supports Windows 10, 8, 7, XP and Mac and Linux
- USB 2.0; compatible USB 1.1
- Baud rate: 300bps to 921Kbps
- No IRQs, DMA or required; No IRQ Conflicts
- Built-in static and surge protection up to 600W; 15KV ESD protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
With FTDI Chip Supports Windows 10, 8, 7, XP and Mac
RS422/RS485 TIA/EIA Standard
USB 2.0; compatible USB 1.1
Baud rate: 300bps to 921Kbps
Indication LED's for Power, TX and RX
No IRQs, DMA or required; No IRQ Conflicts
Automatic send data control. Auto detection of data speed; Zero delay automatic transmission
Automatic hand-shaking protocol supported
Built-in static and surge protection up to 600W; 15KV ESD protection (Electro-Static discharge)
Supports multiple terminals up to 32 RS-485 or RS-422 devices
Transmission distance: up to 1200 meters for RS-485/422 end
Working modes: asynchronous; point-to-point or point-to-multipoint; 2-line half duplex and 4-line full duplex.
Application fields: Industrial automation, LED INFO display equipments, PLC control and management.. etc
Cable length: 0.5 Meter
Packing Included
1 x SE-USB-RS485-02
1 x 9 pin terminal connector
1 x Driver CD
With FTDI Chip Supports Windows 10, 8, 7, XP and Mac
RS422/RS485 TIA/EIA Standard
USB 2.0; compatible USB 1.1
Baud rate: 300bps to 921Kbps
Indication LED's for Power, TX and RX
No IRQs, DMA or required; No IRQ Conflicts
Automatic send data control. Auto detection of data speed; Zero delay automatic transmission
Automatic hand-shaking protocol supported
Built-in static and surge protection up to 600W; 15KV ESD protection (Electro-Static discharge)
Supports multiple terminals up to 32 RS-485 or RS-422 devices
Transmission distance: up to 1200 meters for RS-485/422 end
Working modes: asynchronous; point-to-point or point-to-multipoint; 2-line half duplex and 4-line full duplex.
Application fields: Industrial automation, LED INFO display equipments, PLC control and management.. etc
Cable length: 0.5 Meter
Packing Included
1 x SE-USB-RS485-02
1 x 9 pin terminal connector
1 x Driver CD
