Sedna SE-PCIE-m2SSDx4-R-MA Interface Cards/Adapter M.2 Internal - Accessory (PCIe, M.2, PCIe 2.0, Black, Green, Box, 6 GB/s)

Features:

( All SSD in photos are for demo. only and not included in the package )

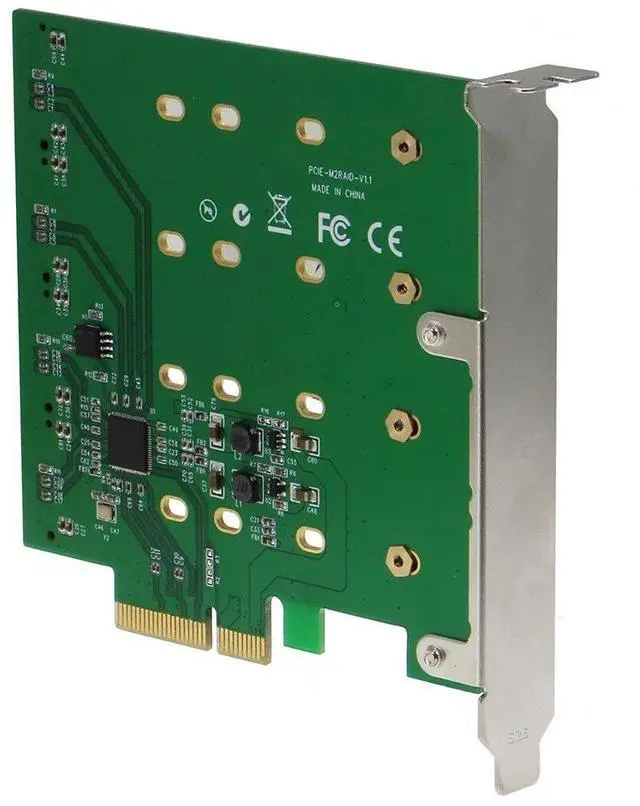

Chipset: Marvell 88SE9230 support HyoperDuo

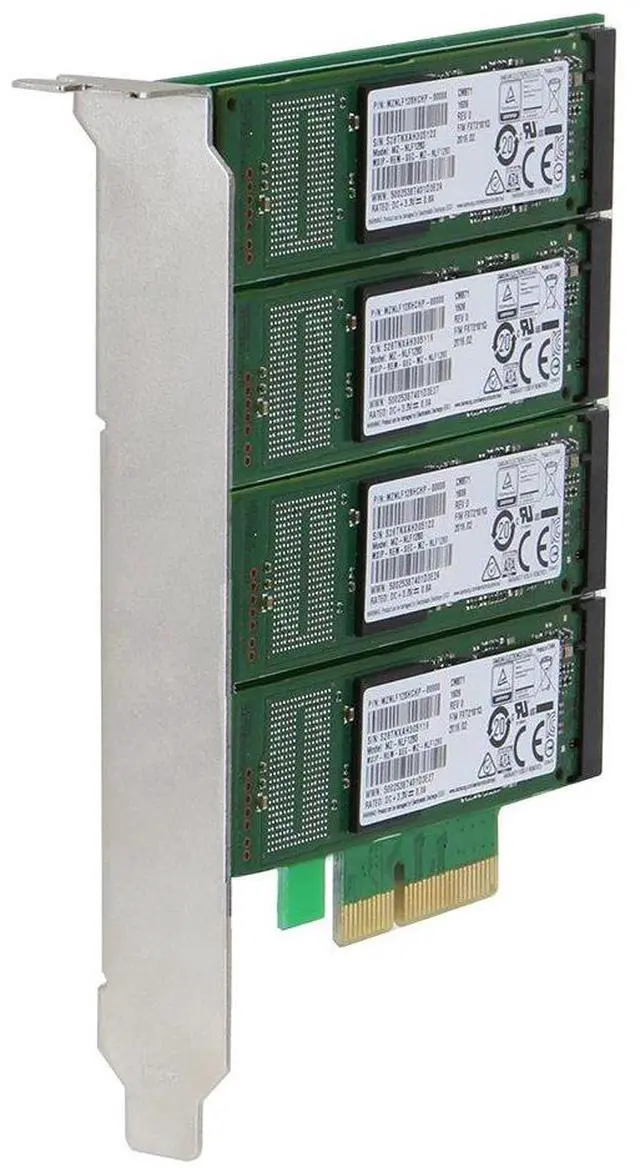

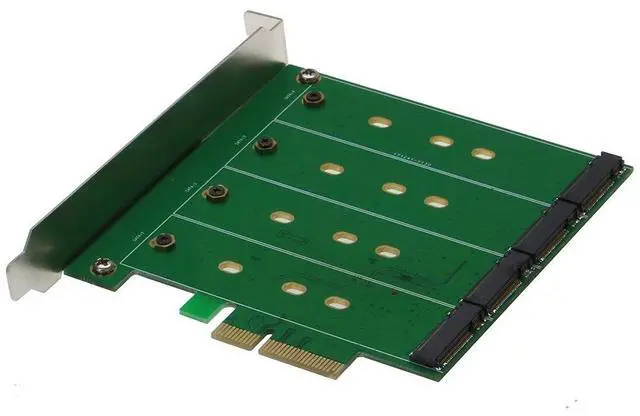

Direct mounting of 4 M2 SSd on board ( not included )
RAID function supported
HyoperDuo technology, with low capacity SSD can be used as accelerating cache drive for high capacity standard HDD, making a low cost combination of super fast big capacity storage system

Specifications

:

Supports 4 SATA-based B key NGFF SSD ( PCIe version SSD not supported )
Supports 2230, 2242, 2260 & 2280 size NGFF SSD
HyoperDuo technology for Hard disk acceleration
PCI Express 2X Specification Rev. 2.0
2-Lane (x2) PCI-Express with transfer rate 5Gb/s Full Duplex channel
Compliant with Serial ATA 3.0 Specification, Data transfer rate up to 6.0G b/s
Backward compatible with SATA 1.0 /SATA 2.0 specification
Support NCQ
RAID Function:
RAID 0-Striping (Stripe Size: 32K, 64K)
RAID 1-Disk Mirroring
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note: Not Supported RAID on PM

Supported OS: Windows 10/8/7/Vista / XP/Server 2008/2003/ Linux 2.6X and up

System Requirement:

Available PCIE 2.0 2X, 4X, 8X or 16X slot on PC
Supported OS

Package Content:

PCIE SATA III M2 SSD Raid adapter
Software / Driver CD
User Manual
