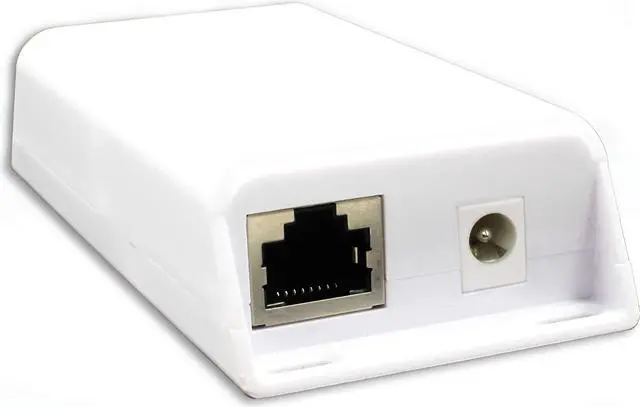

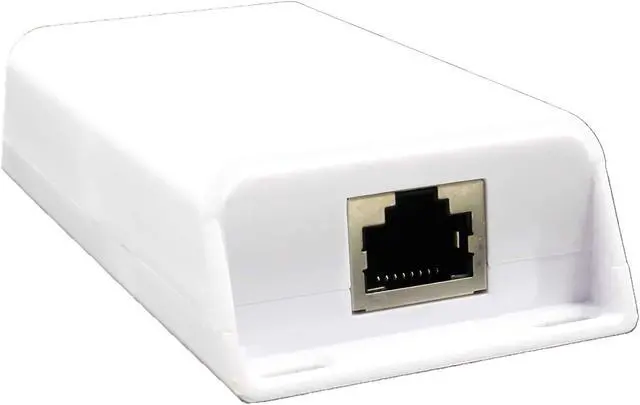

PoE Texas | 802.3at to 24-Volt Converter | Easily Mix and Match 802.3at and 24-Volt Devices

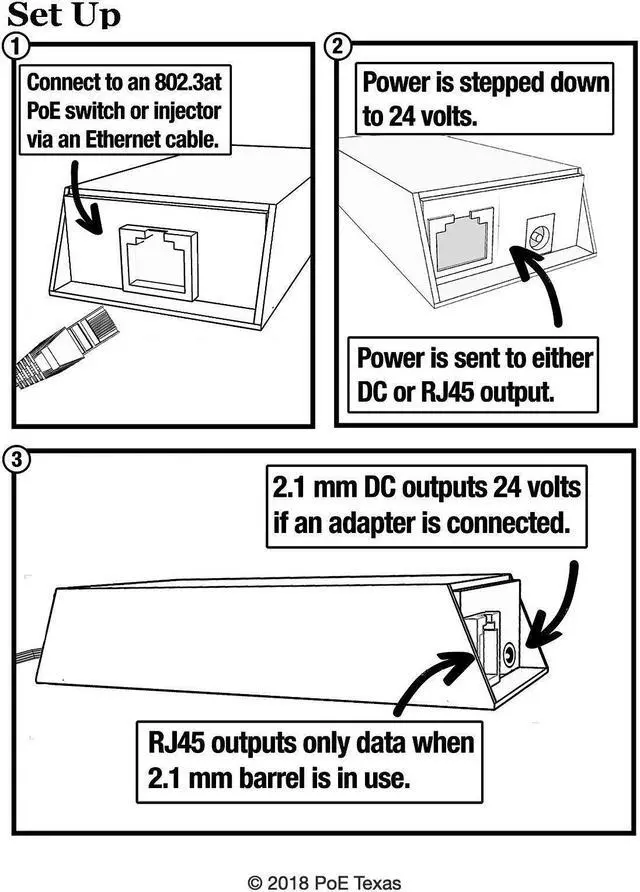

Ideal for mixing 24-volt devices with 802.3 af/at devices: Extend power for 24 volt devices up to 328 feet. The GAT-24v25w splitter provides 25 watts of continuous 24 volt power to any device. Use with your existing 802.3 at PoE+ Switch or 48v PoE Injector to power devices like Legacy Ubiquiti or MikroTik 24-volt passive devices. Simple application and installation will allow you to instantly convert 802.3 at PoE+ to 24 volts with divided gigabit data. Power will be delivered on the DC output and 10/100/1000 data will be available separately on the RJ45.

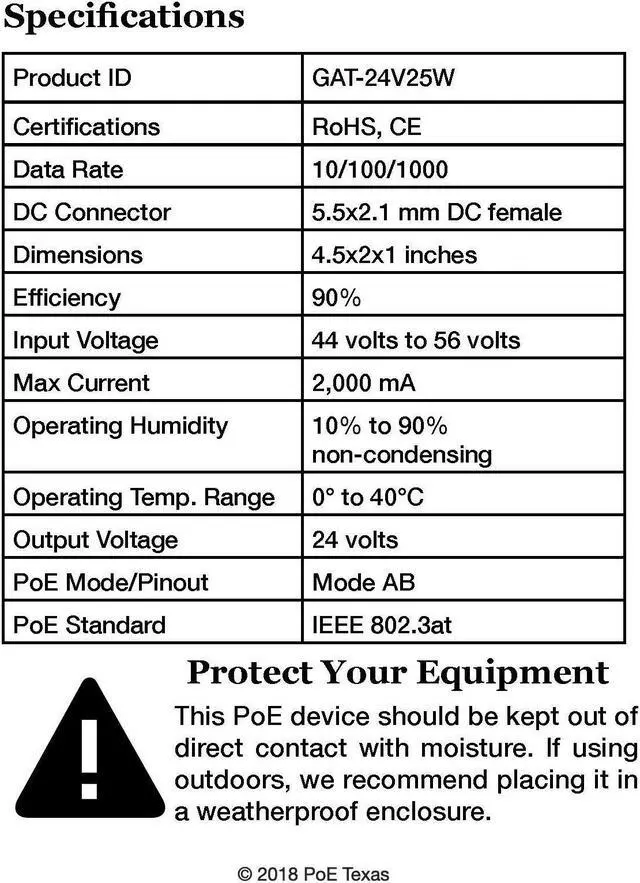

PRODUCT SPECIFICATIONS: Connector
Types: Female DC Barrel / 2x Female
RJ45 Connector Size: 5.5 x 2.1 mm
DC Data Rate: 10/100/1000
Dimensions: 4x2x1
Inches Efficiency: 90%
Input Voltage Range: 44-56 Volts (IEEE 802.3 at Compliant)
LEDs Per Port: Green (POE) / Yellow (24V)
Max Power: 25 Watts
Mount Type: Wall or DIN Rail Clips (Sold Separately)
Operating Temperature: -10 to 60C
Operating Humidity: 5% to 90%
Output Voltage: 24
Volts POE Method: IEEE 802.3 at for 25 Watts / IEEE 802.3 af for 15
Watts POE Mode/Pinout: Mode A (1, 2 3, 6) / Mode B (4, 5 7, 8)
Weight: 3 oz
Power Supply: Not included - see our 48v injector and switch products
