Mini Industrial 4 Port 10/100/1000Mbps Gigabit Ethernet Switch with SFP Din Rail/Wall-Mount 10/100/1000BASE-T RJ45 + 1 100/1000FX (SFP) Support 12-48V DC 10Gbps Switching Capacity

Overview:
This Mini Industrial 4 Port 10/100/1000Mbps Gigabit Ethernet Switch with SFP Port supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. This industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
Features:

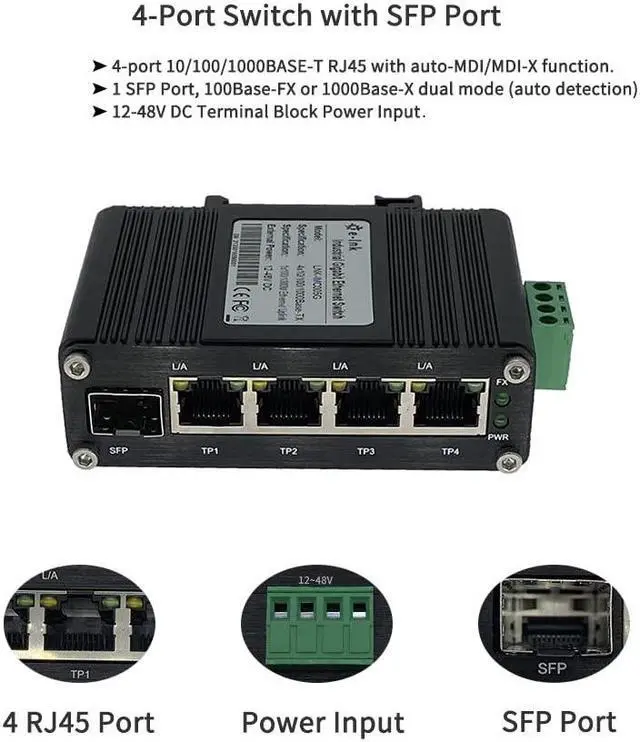

> 4-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function.
> 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection).
> Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex.

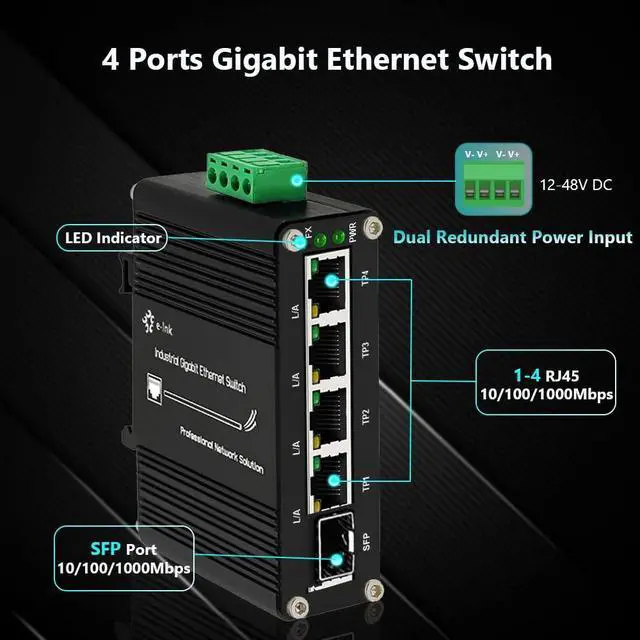

> Support DC 12V~48V wide range voltage input with built-in voltage booster.
> Standard: IEEE 802.3 10Base-T Ethernet, IEEE 802.3 u 100Base-TX Fast Ethernet, IEEE 802.3 x flow control.
> Complies with IEEE 802.3 az Energy Efficient Ethernet (EEE).
> Industry standard design, dust proof and close design IP40, rugged high-strength metal case.

Specifications

:
Standard: IEEE 802.3 10Base-T Ethernet, IEEE 802.3 u 100Base-TX Fast Ethernet, IEEE 802.3 x flow control
Casing Material: Aluminum
Case Input Power: 12~48V DC (Terminal
Block) Packet Buffer Memory: 1Mbits
Max Packet Length: 9K
Bytes Switch Capacity: 10Gbps/non-blocking
Transmission Distance: up to 20KM
Power Consumption: < 6W
Dimensions (WxDxH): 90 x 70x 29mm( 3.74 x 2.76 x 1.15 in)
Weight: 250g( 0.55 lb)
