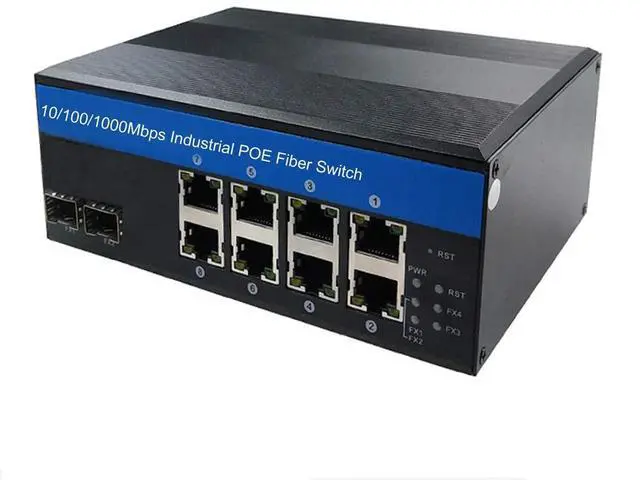

OLYCOM 8Port POE Outdoor Switch Gigabit Ethernet Din Rail Mounted IP40 with 2pcs Industrial SFP Transceivers Dual Fiber SM 20KM LC
- INTERFACE: 2×10/100/1000Base-X SFP uplink port ( with 2pcs industrial SFP modules 1000Base-LX) and 8×10/100/1000Base-TX UTP ports with POE ( NOT include power adapter).
- SFP MODULES: 2pcs industrial SFP transceivers which are up to 1.25Gb/s data link 1310nm Single-mode dual fiber 20KM LC. Support Hot-Pluggable.
- POE PORTS: 8pcs full Gigabit Ethernet RJ45 ports with POE AT (30w each RJ45 port),240W totally (Not include power adapter).
- EXTREME TEMPERATURE SWITCH: This full Gigabit 8 Port PoE+ Switch is equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 75 °C (- 40 - 167 °F)) for harsh environments.

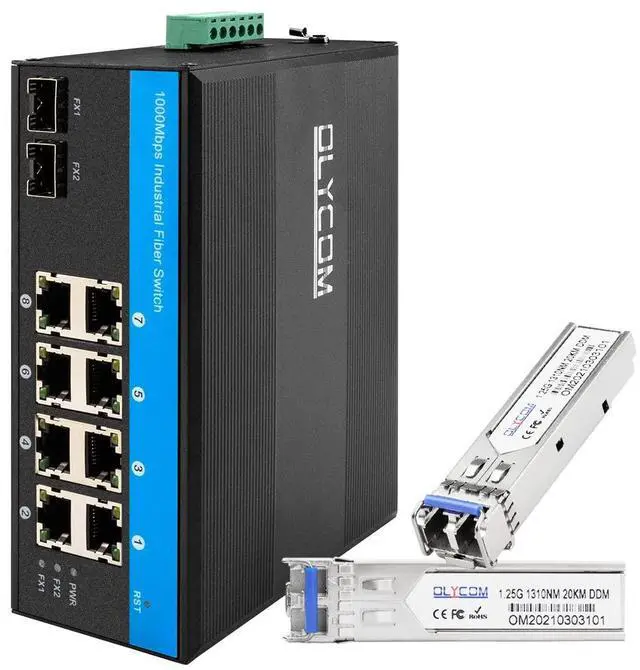

- WHAT YOU GET: 1pc 8port POE outdoor DIN-Rail Ethernet Switch, 2pcs industrial transceiver 1000Base-Lx ( 1.25G SM dual fiber 1310nm 20KM LC DDM) and lifetime technical support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OLYCOM Outdoor Switch Gigabit Ethernet Din Rail Mounted IP40 with 2pcs Industrial SFP Transceivers Dual Fiber SM 20KM LC
1.

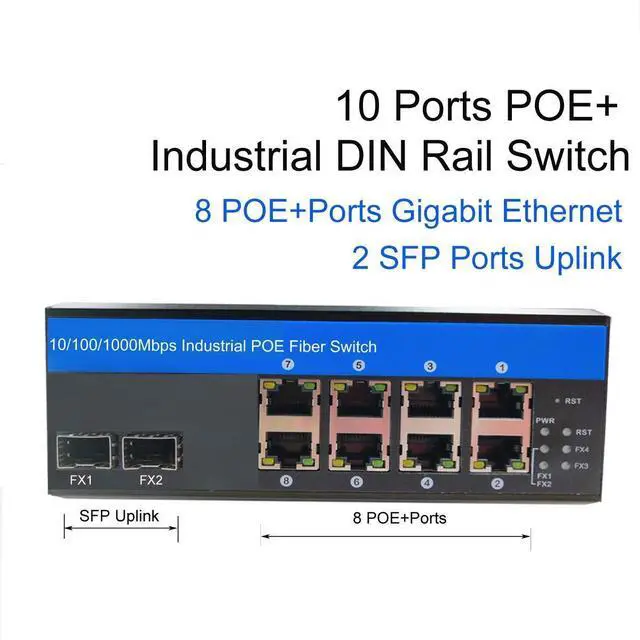

Product Name: 8Port POE Outdoor Switch Gigabit Ethernet (2F+8TP)
2. Model No.: IM-FP288GE-SD20
3.
Fiber Port: 2 x 1000Mbps ( WITH 2pcs industrial SFP transceiver, 1.25G, dual fiber, SM, 20KM, LC DDM)
4.
Network Port: 8 x 10/100/1000M CAT5 ports
5.
POE Port: 8 x 10/100/1000M RJ45 ports with IEEE 802.3 af/at, 15.4W /30 for each port. 240W in total (WITHOUT power adapter)
5.
Switching features: Transmission
mode: storage and forward; System bandwidth40Gbps (non-traffic jam)
6.
Network media:
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair (100m); 100/1000BASE-TX: CAT5 or above shielded twisted pair (100m);
8.

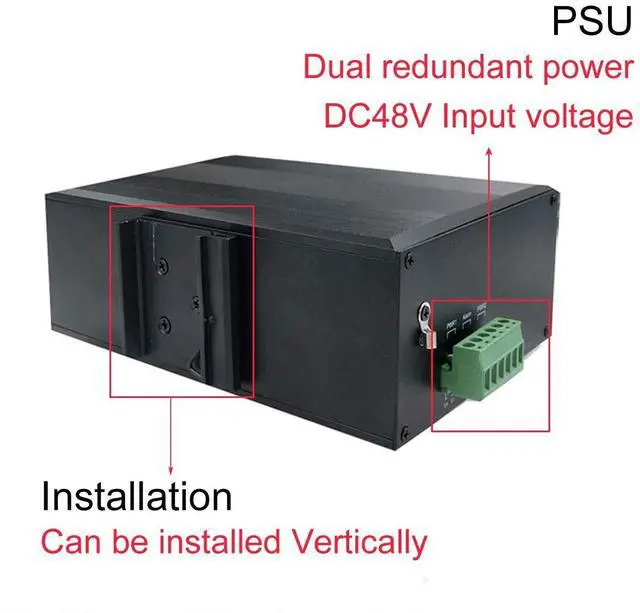

PSU: Input
voltage: DC 48-52V;
No-load power: 5W; Reverse connection: support
9.
LEDs: Power, network, fiber
10.
Working Temperature: -40° 75°C (-40° 176°F) tough extreme environment.
11.
Safety: CE Mark, commercial; CE/LVD EN60950
12.
Safety class: IP40 protection
13.

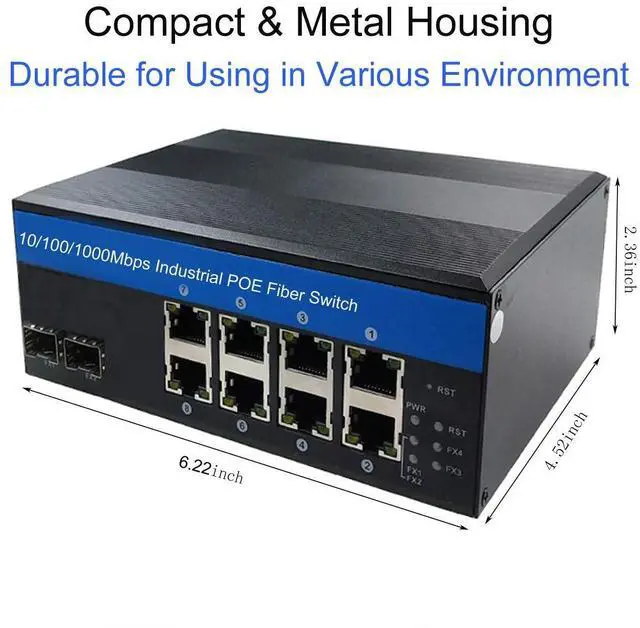

Mechanical information: Shell: Corrugated metal housing
14.
Mounting method: Din-rail mounting
Warranty
Replacement within 3years; 5 years repairing
1.
Product Name: 8Port POE Outdoor Switch Gigabit Ethernet (2F+8TP)
2. Model No.: IM-FP288GE-SD20
3.
Fiber Port: 2 x 1000Mbps ( WITH 2pcs industrial SFP transceiver, 1.25G, dual fiber, SM, 20KM, LC DDM)
4.
Network Port: 8 x 10/100/1000M CAT5 ports
5.
POE Port: 8 x 10/100/1000M RJ45 ports with IEEE 802.3 af/at, 15.4W /30 for each port. 240W in total (WITHOUT power adapter)
5.
Switching features: Transmission
mode: storage and forward; System bandwidth40Gbps (non-traffic jam)
6.
Network media:
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair (100m); 100/1000BASE-TX: CAT5 or above shielded twisted pair (100m);
8.
PSU: Input
voltage: DC 48-52V;
No-load power: 5W; Reverse connection: support
9.
LEDs: Power, network, fiber
10.
Working Temperature: -40° 75°C (-40° 176°F) tough extreme environment.
11.
Safety: CE Mark, commercial; CE/LVD EN60950
12.
Safety class: IP40 protection
13.
Mechanical information: Shell: Corrugated metal housing
14.
Mounting method: Din-rail mounting
Warranty
Replacement within 3years; 5 years repairing
