OLYCOM POE Switch 8 Port Managed L2+ 10/100/1000M 8 Port SFP Vlan QoS STP/RSTP with 4pcs Industrial 1000Base-LX
- INTERFACE: 8×10/100/1000Base-X SFP uplink port ( with 4pcs industrial SFP modules 1000Base-LX) and 8×10/100/1000Base-TX UTP ports with POE ( NOT include power adapter).
- SFP MODULES: 4pcs industrial Mini GBIC SFP transceivers which are up to 1.25Gb/s data link 1310nm Single-mode dual fiber 20KM LC. Support Hot-Pluggable. Industrial working temperature (- 40 75 °C (- 40 - 167 °F)).
- POE STANDARD: The 8 port POE switch supports POE (15.4W) and POE+ (30W). 1/2 (V+), 3/6 (V-) is the default, and 4/5 (V+),7/8 (V-) is optional wire connection. Total power is 240W.

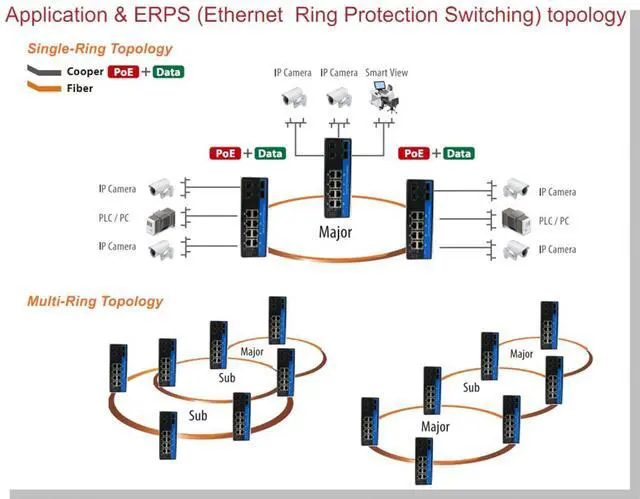

- L2 MANAGED: This POE switch 8 port managed supports STP, RSTP, MSTP, ITU-T G.8032 EPR, Qos, IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching and other managed functions.
- WHAT YOU GET: 1pc 8port POE Managed L2+ outdoor DIN-Rail Ethernet Switch, 4pcs industrial transceiver 1000Base-Lx ( 1.25G SM du
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OLYCOM POE Switch 8 Port Managed L2+ 10/100/1000M 8 Port SFP Vlan QoS STP/RSTP with 4pcs Industrial 1000Base-LX
1.
Product Name: 8Port POE Managed L2+ Outdoor Switch Gigabit Ethernet (8F+8TP)
2. Model No.: IM-FP888GW-SD20
3.
Fiber Port: 8 x 1000Mbps ( WITH 4pcs industrial SFP transceiver, 1.25G, dual fiber, SM, 20KM, LC DDM)
4.
Network Port: 8 x 10/100/1000M CAT5 ports
5.
POE Port: 8 x 10/100/1000M RJ45 ports with IEEE 802.3 af/at, 15.4W /30 for each port. 240W in total (WITHOUT power adapter)
5.
Switching features: Transmission
mode: storage and forward; System bandwidth40Gbps (non-traffic jam)
6.
Network media:
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair (100m); 100/1000BASE-TX: CAT5 or above shielded twisted pair (100m);
8.

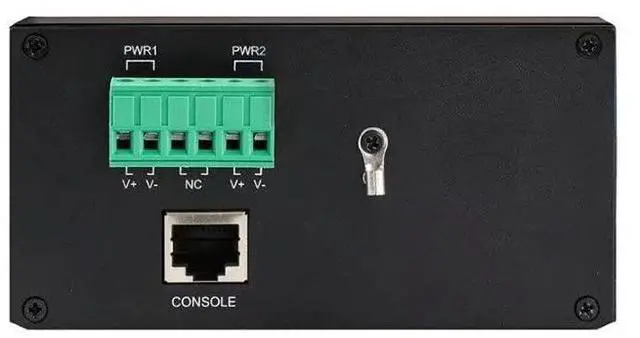

PSU: Input
voltage: DC 48-52V;
No-load power: 5W; Reverse connection: support
9.
LEDs: Power, network, fiber
10.
Working Temperature: -40° 75°C (-40° 176°F) tough extreme environment.
11.
Safety: CE Mark, commercial; CE/LVD EN60950
12.
Safety class: IP40 protection
13.
Mechanical information: Shell: Corrugated metal housing
14.

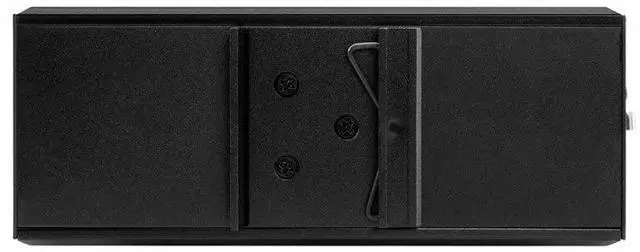

Mounting method: Din-rail mounting
Warranty
Replacement within 3years; 5 years repairing
1.
Product Name: 8Port POE Managed L2+ Outdoor Switch Gigabit Ethernet (8F+8TP)
2. Model No.: IM-FP888GW-SD20
3.
Fiber Port: 8 x 1000Mbps ( WITH 4pcs industrial SFP transceiver, 1.25G, dual fiber, SM, 20KM, LC DDM)
4.
Network Port: 8 x 10/100/1000M CAT5 ports
5.
POE Port: 8 x 10/100/1000M RJ45 ports with IEEE 802.3 af/at, 15.4W /30 for each port. 240W in total (WITHOUT power adapter)
5.
Switching features: Transmission
mode: storage and forward; System bandwidth40Gbps (non-traffic jam)
6.
Network media:
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair (100m); 100/1000BASE-TX: CAT5 or above shielded twisted pair (100m);
8.
PSU: Input
voltage: DC 48-52V;
No-load power: 5W; Reverse connection: support
9.
LEDs: Power, network, fiber
10.
Working Temperature: -40° 75°C (-40° 176°F) tough extreme environment.
11.
Safety: CE Mark, commercial; CE/LVD EN60950
12.
Safety class: IP40 protection
13.
Mechanical information: Shell: Corrugated metal housing
14.
Mounting method: Din-rail mounting
Warranty
Replacement within 3years; 5 years repairing
