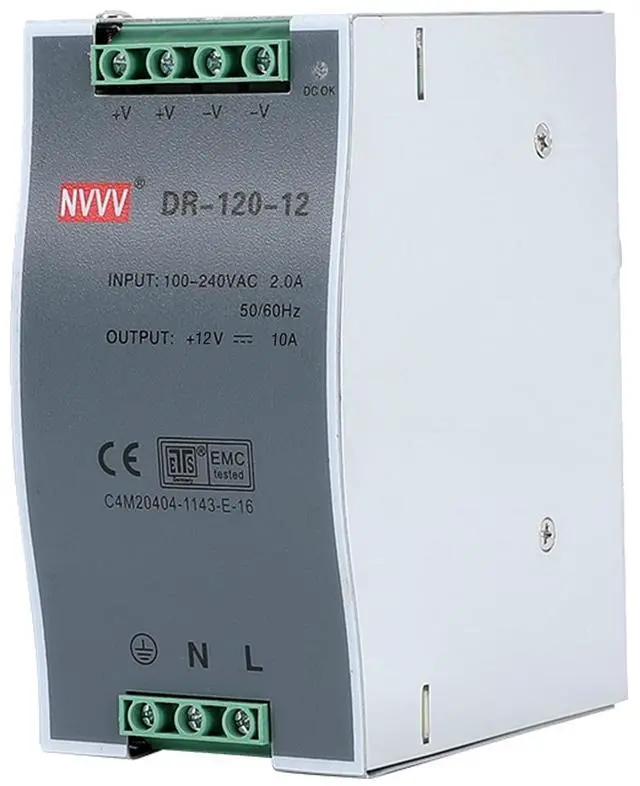

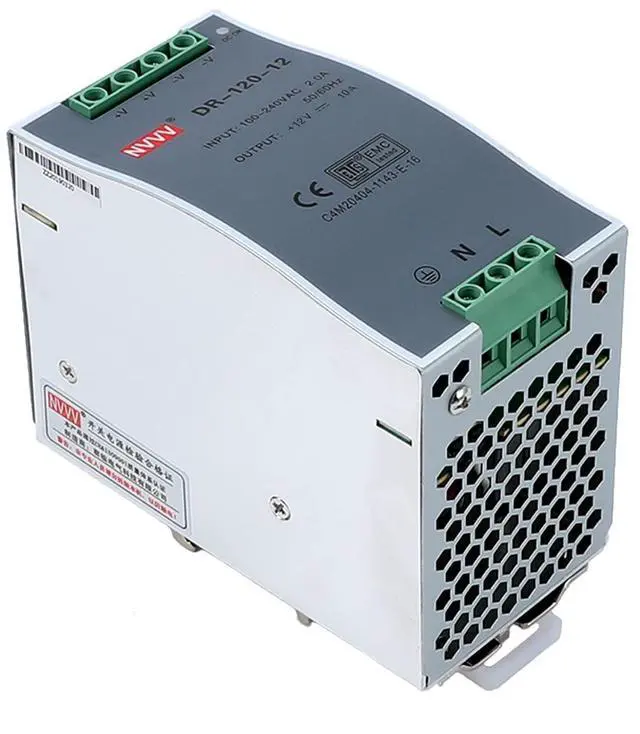

NVVV DR-120-12 AC to DC DIN-Rail Mount Power Supply, 12V, 10 Amp, 120W Single Extreme -30 to 70 °C (-22 to 158 °F) Operating Temp, Overload Protection, Metal, Silver+Grey
- POWER - The DR-120 specs out with 12 volts at 10 amps and has a universal AC input range; Gone through 100% full load burn-in tests; Input voltage 85-264 VAC at 47-63Hz
- Easy install - the door-120 series power supply was designed to easily install on din rail ts-35/7.5 or 15 rails to provide for an efficient and organized work space
- Protections - the power supply protects against short-circuits, overloading, over-voltage, and over temperature ensuring you and your place of work remain safe and recovers automatically after failure
- Industrial - this power supply is designed to work with the most rigorous of machinery and adaptations including heavy machinery like cnc machines
- WARRANTY: Our products use high-quality components, and through strict quality testing, out of confidence in product quality, we provide you with a three-year warranty.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Package Include: 1 x 120W 12V single output industrial DIN rail power supply

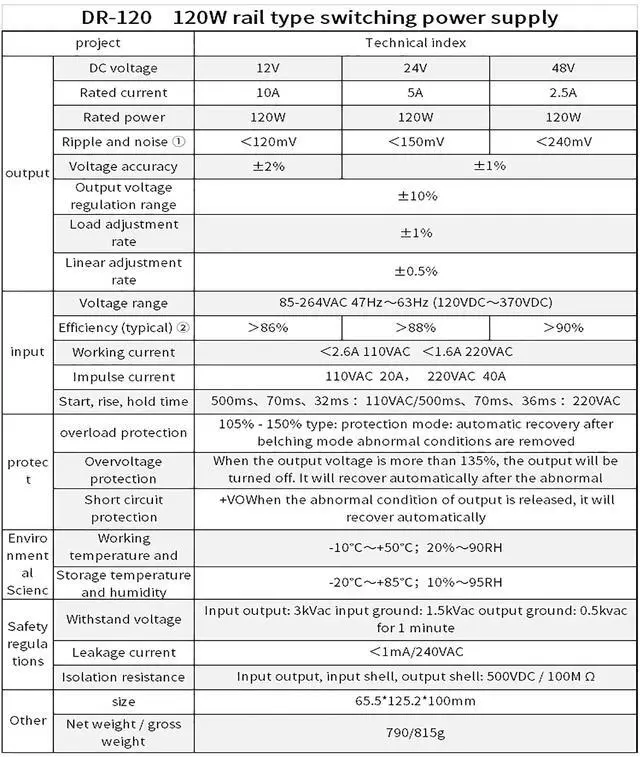

DR-120-12 specifications: output
power (W): 120 ripple
& noise (mV p-p): <120 mV load regulation: ± 1 % line regulation: ± 0.5 % efficiency: > 86% size (L x W x
H): 2.58 x 3.94 x 4.93 inches
Overvoltage Protection: When the outputvlotage is more than 135%, the output will be turned off. It will recover automatically after the abnormal.
detailed specifications: primary
output voltage (VDC): 12
output current (a): 10
maximum output power (W): 120
family: DR-120
input voltage: 85 to 264
VAC input frequency: 47Hz to 63Hz maximum input current (a): 2.25 output connector
Type: screw
terminal operating temperature-min (CEL): -30 to 70 °C operating temperature-max (CEL): 50
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV

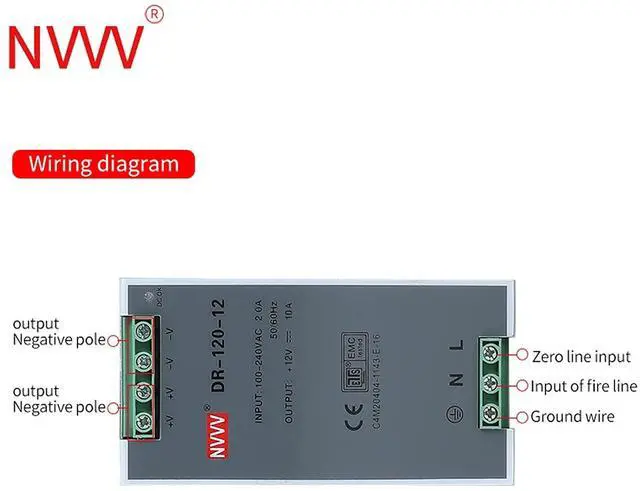

Connection instruction?: Ground wire
L: Live wire
N: Negative
wire +V: DC
power output ''+'' -V: DC power output ''-'' +V
ADJ: output voltage regulation
DR-120-12 specifications: output
power (W): 120 ripple
& noise (mV p-p): <120 mV load regulation: ± 1 % line regulation: ± 0.5 % efficiency: > 86% size (L x W x
H): 2.58 x 3.94 x 4.93 inches
Overvoltage Protection: When the outputvlotage is more than 135%, the output will be turned off. It will recover automatically after the abnormal.
detailed specifications: primary
output voltage (VDC): 12
output current (a): 10
maximum output power (W): 120
family: DR-120
input voltage: 85 to 264
VAC input frequency: 47Hz to 63Hz maximum input current (a): 2.25 output connector
Type: screw
terminal operating temperature-min (CEL): -30 to 70 °C operating temperature-max (CEL): 50
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV
Connection instruction?: Ground wire
L: Live wire
N: Negative
wire +V: DC
power output ''+'' -V: DC power output ''-'' +V
ADJ: output voltage regulation
