Ableconn MPEX-134B Mini PCIe Adapter with M.2 Key B Slot - Support USB/PCIe/SATA Based M2 B Key or B-M Key Module for Mini PCI Express, TAA

The Ableconn MPEX-134B allows you to Install Advanced WWAN, SSD, or PCIe module on the Mini PCIe slot of Industrial Computer. It supports USB / PCIe / SATA based M. 2 B-Key or B-M Key modules such as CDMA, GPS, LTE, SATA SSD, M. 2 PCIe Host, etc.
Features
* Connector:
- 1x B-key (type 2280-D3-B) M. 2 NGFF socket
* Software:
- No driver installation is required.
- 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
* System Requirement:
- An empty Mini PCIe socket.

* Connect USB 2.0, PCIe x1, and SATA signals of IPC mPCIe socket to M. 2 B-Key socket
* Support both mPCIe Full-Mini and Half-Mini plated-hole
* Support M. 2 B Key and B-M Key Module, such as WWAN (CDMA, GPS, LTE) Module, PCIe Host Module, 80mm M. 2 SATA SSD.

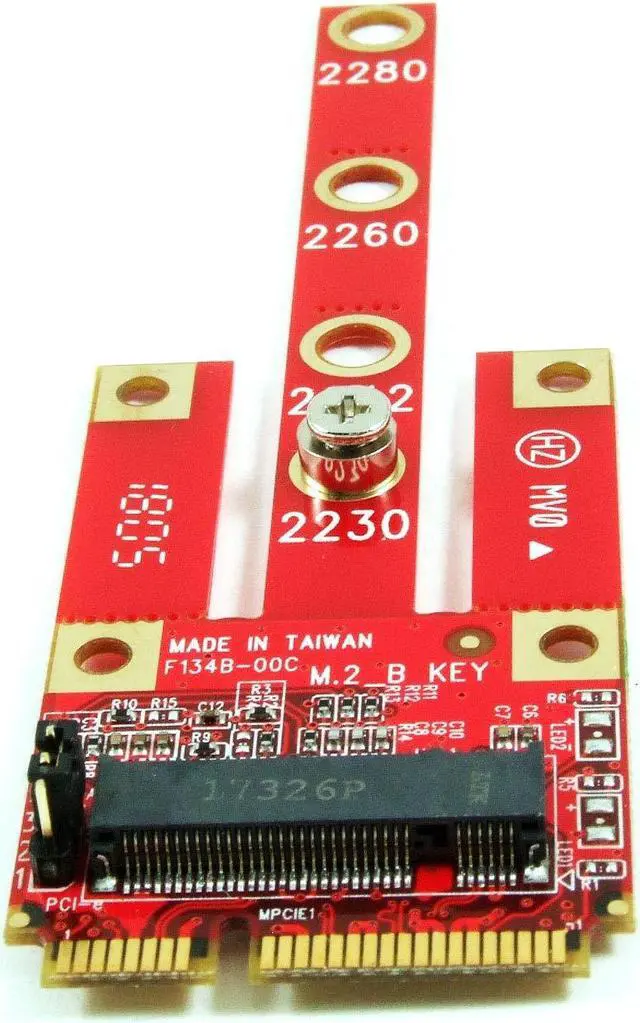

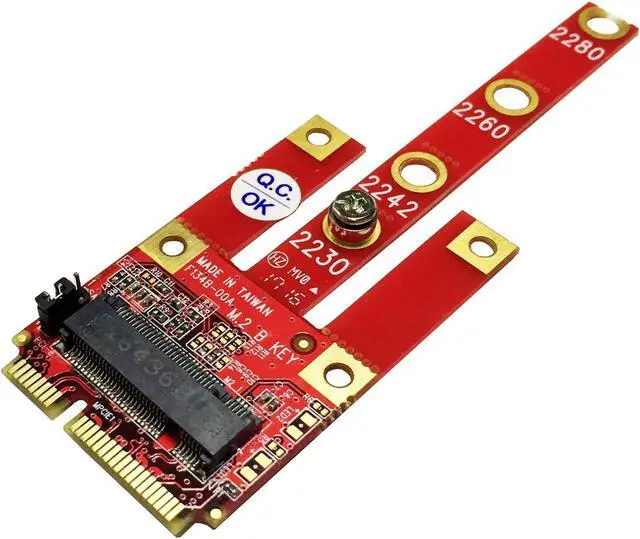

* Multiple plated-holes support M. 2 type 2230 / 2242 / 2260 / 2280 / 3030 / 3042 module
* USB 2.0 & PCIe x1 or SATA signal interface between Mini PCIe and M. 2 B Key socket

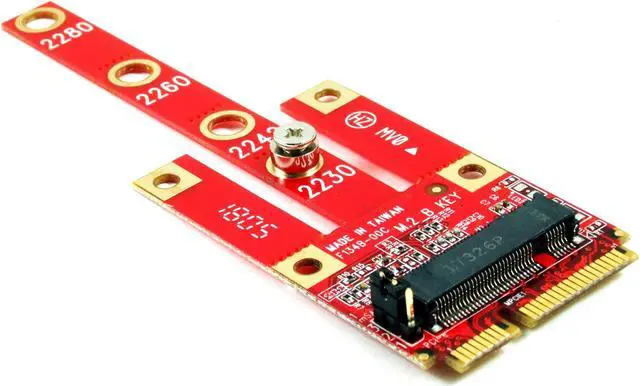

* Jumper setting select PCIe x1 or SATA signals from Mini PCIe to M. 2 Socket

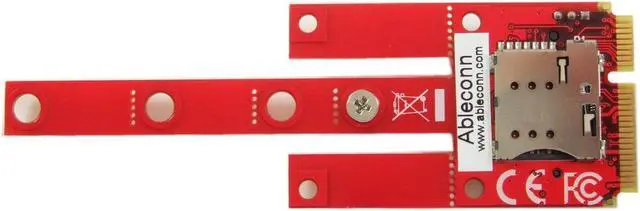

* WWAN Micro-SIM card holder on the back
* 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
* Transparent to the operating system and no driver required
* Supports industrial operating temperature range: -40 - 80 ºC
* Fully RoHS compliant
* Made in Taiwan
Note: Not support USB 3.0 base WWAN module
Package Contents
* Ableconn B-Key M. 2 WWAN Module to Mini PCIe Adapter
